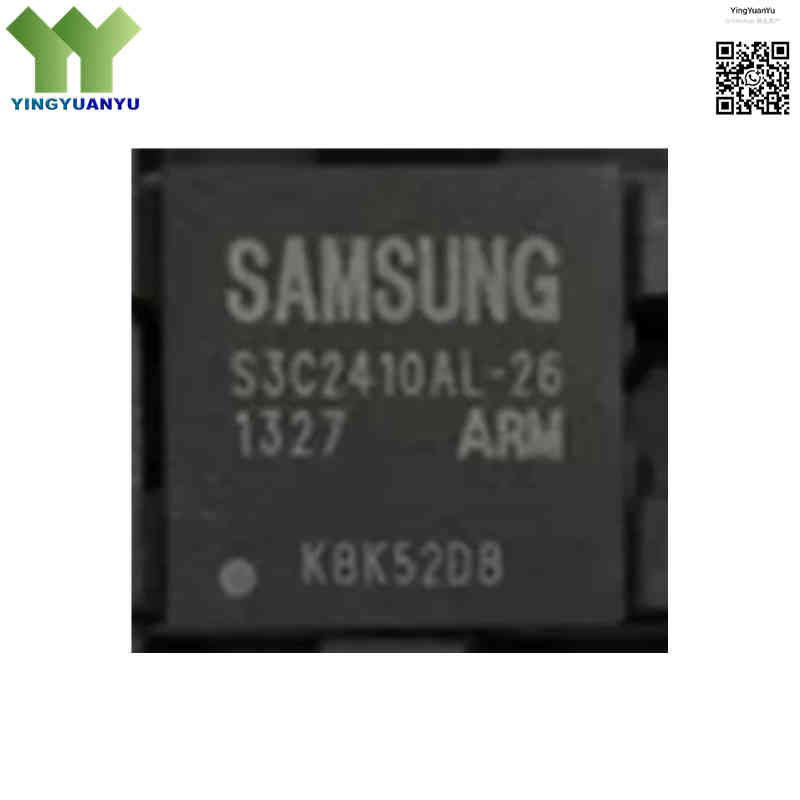

S3C2410AL-26
S3C2410AL-26
| Part Number | S3C2410AL-26 |
|---|---|
| Manufacturer | Samsung Semiconductor |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors |
| Description | 16/32-Bit RISC ARM920T Microprocessor, 266MHz, Integrated LCD Controller, NAND Flash Controller, USB Host/Device, 272-FBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The S3C2410AL‑26 is a Samsung 16/32‑bit RISC SoC built on ARM920T core, max 266MHz. It integrates LCD controller, touchscreen ADC, NAND Flash boot, USB, SD/MMC and multi‑channel DMA. Packaged in 272‑FBGA 0.8mm pitch, it targets embedded displays, industrial terminals and legacy handheld devices with low‑power performance.
Core Advantages
Efficient ARM920T RISC CPU Core
ARM920T core with 16KB I‑Cache /16KB D‑Cache, MMU & Thumb support, delivering high‑efficiency computing for embedded applications.
Comprehensive On‑Chip Display & Touch Controller
Supports STN/TFT LCD and touchscreen input, reduces external components for GUI‑oriented embedded designs.
Rich Connectivity & Storage Interfaces
Built‑in USB 1.1, 3‑channel UART, SPI, I2C, IIS, SD/MMC and native NAND Flash boot capability.
Low Power Consumption Architecture
Multiple power modes (Normal / Slow / Idle / Power‑Off) with separated power domains for battery‑powered embedded hardware.
Key Specifications
| Brand | Samsung Semiconductor |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Options Available |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 272-FBGA (14mm x 14mm, 0.8mm ball pitch) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | S3C2410AL-26 / Samsung Logo |
| Core Architecture | ARM920T 16/32-Bit RISC |
| Maximum Clock Speed | 266 MHz |
| Cache Memory | 16 KB Instruction Cache / 16 KB Data Cache |
| Core Supply Voltage | 2.0V (266MHz operation); 1.8V for lower‑frequency operation |
| I/O Supply Voltage | 3.3V I/O Power Supply |
| Operating Temperature | -40°C to +85°C (Industrial Grade) |
| Process Technology | 0.18μm CMOS |
| Peripherals & Interfaces | LCD Controller, Touchscreen ADC, NAND Flash Controller, USB Host/Device, SD/MMC, UART, SPI, I2C, IIS, 8‑Channel 10‑bit ADC, 4‑Channel PWM Timer, RTC, Watchdog Timer, 117‑GPIO (24 external interrupts), DMA |
Typical Applications
- Handheld Mobile Devices, PDAs, and Smart Terminal Devices
- Industrial HMI (Human‑Machine Interface) Displays and Control Panels
- Portable Medical Diagnostic Instruments and Testing Equipment
- Point‑of‑Sale (POS) Terminals and Barcode Scanners
- Embedded GPS Navigation Systems and Media Player Devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the CPU core of S3C2410AL‑26?
A: ARM920T 16/32‑bit RISC core, with 16KB I‑Cache / 16KB D‑Cache, MMU and Thumb instruction set, max 266MHz.
Q2: What package is S3C2410AL‑26?
A: 272‑FBGA, 14×14mm, 0.8mm ball pitch, SMD surface‑mount package.
Q3: Does it support NAND Flash direct boot?
A: Yes. Built‑in NAND Flash controller supports Steppingstone auto‑boot into internal SRAM.
Q4: What is its temperature grade?
A: Industrial grade: -40°C to +85°C.
Q5: What are core & I/O voltage specs?
A: Core: 2.0V @266MHz; 1.8V for lower frequencies. I/O: 3.3V.
Q6: What do suffixes “AL‑26” mean?
A: “AL” = low‑power variant; “‑26” = 266MHz max clock. “‑20” variant runs at 200MHz.
Q7: Is S3C2410AL‑26 in production? What are alternatives?
A: EOL (end‑of‑life). Pin‑compatible replacements: S3C2440, S3C2451. Verify peripheral differences before substitution.
Q8: Difference between S3C2410AL‑26 and S3C2410A‑20?
A: S3C2410A‑20: commercial grade, 200MHz. S3C2410AL‑26: low‑power industrial grade, 266MHz, wider temp range.
Q9: Can S3C2440 directly replace S3C2410AL‑26?
A: Same 272‑FBGA footprint. Higher performance, extra peripherals. Software modification is required for full compatibility.
Q10: How to get datasheet, pinout or quotation?
A: Request documentation, stock check and bulk pricing via our Quick Inquiry form.
