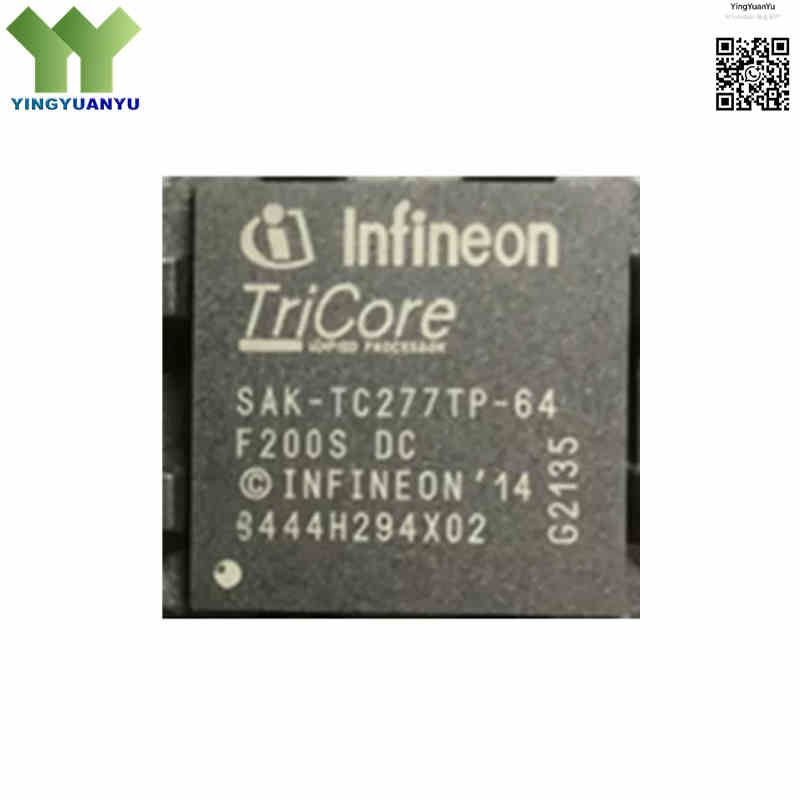

SAK-TC277TP-64F200S DC
SAK‑TC277TP‑64F200S DC
| Part Number | SAK-TC277TP-64F200S DC |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers (MCU) |
| Description | 32‑bit TriCore AURIX TC27xT Automotive MCU,200MHz,4MB Flash,472KB SRAM,Trace Port,PG‑LFBGA‑292,DC=Reel tape packing,AEC‑Q100‑40℃~+125℃. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
SAK‑TC277TP‑64F200S DC is Infineon AURIX TC27xT 32‑bit automotive MCU with Trace Port debug interface. Triple TriCore v1.6.1 runs at 200MHz, 4MB Flash and 472KB SRAM with hardware ECC. It features 5V‑tolerant IO, MSC 100M Ethernet, SENT and PSI5 interfaces. Complies with ISO26262 ASIL‑D. Suffix DC stands for reel‑tape package, operating temperature ‑40℃~+125℃, widely used for powertrain, BMS and chassis automotive control.
Core Advantages
High‑Performance Triple‑Core Safety Architecture
3×TriCore 200MHz CPU with lockstep support, meets ISO26262 ASIL‑D functional‑safety requirement for automotive scenarios.
Memory & Hardware Security
Hardware ECC protection for Flash and SRAM, built‑in HSM hardware security module for data anti‑tamper.
Complete Automotive Peripherals
Full set of vehicle interfaces including CAN‑FD, FlexRay, MSC 100M Ethernet, SENT and PSI5 for modern automotive network.
Powerful Real‑Time Control Resources
Multi‑channel ADC, GTM / CCU6 timer and 64‑channel DMA, support complex sampling and high‑speed PWM output.
Automotive‑Grade Reliability
AEC‑Q100 qualified, IO pins support 5V‑tolerant for flexible hardware design.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | PG‑LFBGA‑292 (17×17 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | SAK-TC277TP-64F200S DC |
| Core Architecture | 32‑Bit TriCore™ v1.6.1 (3x Cores, support lockstep) |
| Maximum Speed | 200 MHz |
| Program Memory Size | 4 MB Flash (With Hardware ECC) |
| RAM Size | 472 KB SRAM (With Hardware ECC) |
| EEPROM Emulation | 64 KB |
| Connectivity | CAN FD, FlexRay, LINbus, SPI, ASC (UART), SENT, PSI5, MSC 100M Ethernet |
| A/D Converters | 14‑module ADC: SAR ADCs & Delta‑Sigma Converters, total 60 analog input channels |
| DMA Channels | 64‑Channel DMA Controller |
| Operating Voltage | Core:1.3V; IO:3.3V (IO 5V Tolerant) |
| Operating Temperature | ‑40°C ~ +125°C (Automotive AEC‑Q100) |
Typical Applications
- Automotive Powertrain and Engine Management Systems (EMS)
- Advanced Driver Assistance Systems (ADAS) and Radar Integration Units
- Electric Vehicle (EV) Transmission and Battery Management Systems (BMS)
- Chassis Control, Electronic Power Steering (EPS), and Active Suspension Systems
- High‑Safety Industrial Automation and Motion Control Controllers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What safety standard level does the SAK‑TC277TP‑64F200S DC satisfy?
A1: AURIX TC277 supports ISO 26262 ASIL‑D, designed for safety‑critical automotive applications.
Q2: What does suffix DC mean for SAK‑TC277TP‑64F200S DC?
A2: DC stands for reel/cut‑tape packing only, not temperature grade. It shares identical electrical specs ‑40℃~+125℃ and pin‑to‑pin compatibility with non‑DC version.
Q3: What is the difference between TP and TN suffix on TC277 series?
A3: TP = with Trace‑Port debug interface; TN = without Trace‑Port. Flash, RAM and peripherals are same, pin‑compatible, only differs in debug hardware.
Q4: Can SAK‑TC277TP‑64F200S DC directly drop‑in replace TC275 series?
A4: Not drop‑in compatible. Flash, peripherals and pin assignment differ, hardware modification and firmware porting are required.
Q5: Can SAK‑TC277TP‑64F200S DC replace SAK‑TC277TN‑64F200S DC?
A5: Yes, fully pin‑to‑pin compatible. TP adds Trace‑Port debug feature, all other electrical parameters are identical for alternative use.
Q6: Does this MCU support 5V tolerant IO pins?
A6: Yes, IO pins are 5V‑tolerant. Core supply:1.3V, IO supply:3.3V.
Q7: What package type does the SAK‑TC277TP‑64F200S DC use?
A7: PG‑LFBGA‑292, 17×17 mm, 292‑ball BGA SMD surface‑mount package.
Q8: Does this MCU feature integrated hardware security?
A8: Yes, integrated HSM module, supports secure boot, crypto algorithm and anti‑tamper protection.
Q9: How can I request datasheets, pinout maps, or price quotes for SAK‑TC277TP‑64F200S DC?
A9: Datasheets, pin maps, stock status and volume pricing are available via our Quick Inquiry form.
