SAK-TC387QP-160F300S AE
SAK-TC387QP-160F300S AE
| Part Number | SAK-TC387QP-160F300S AE |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers (MCU) |
| Description | AURIX™ TC387 32-Bit TriCore™ High-Performance Automotive Microcontroller, 300MHz Quad-Core (4x TriCore, 2 lockstep Pairs), 10MB Flash, ISO 26262 ASIL-D Compliant, LFBGA-292 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The SAK-TC387QP-160F300S AE is a high-performance 32-bit automotive MCU belonging to Infineon second-generation AURIX™ TC3xx family. It adopts four independent 32-bit TriCore™ CPUs running up to 300MHz and grouped into two lockstep pairs, equipped with 10MB Flash and 1.5MB SRAM. Designed to meet ISO 26262 ASIL-D safety standards, this chip integrates HSM security module, Gigabit Ethernet, CAN-FD, FlexRay and multiple analog peripherals. Packaged in LFBGA-292, it is suitable for ADAS, vehicle domain controllers, new energy vehicle control and safety-critical industrial equipment.
Core Advantages
Quad-Core TriCore™ High Computing Capacity
Four TriCore™ v1.6.2 cores up to 300MHz with dual lockstep pairs, supporting parallel computing for complex automotive control algorithms.
ISO 26262 ASIL-D Functional Safety
Built-in lockstep monitoring, ECC memory and MBIST test unit, fully meeting the safety requirements of automotive functional safety projects.
Integrated Hardware Security Module(HSM)
EVITA High-level HSM provides hardware AES encryption, secure boot function to prevent equipment tampering and network attacks.
Rich Automotive Communication Interfaces
Supports Gigabit Ethernet, multiple CAN-FD, FlexRay, LIN, QSPI and I2C, convenient for vehicle gateway and high-speed data transmission.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Halogen-Free |
| EDA/CAD Model | Schematic symbol models, 3D CAD step profiles, and LFBGA-292 footprint land patterns are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | LFBGA-292 (32.0 mm × 32.0 mm,0.4mm Ball Pitch,PG-LFBGA-292) |
| Mounting Type | Surface Mount (SMT / SMD) |

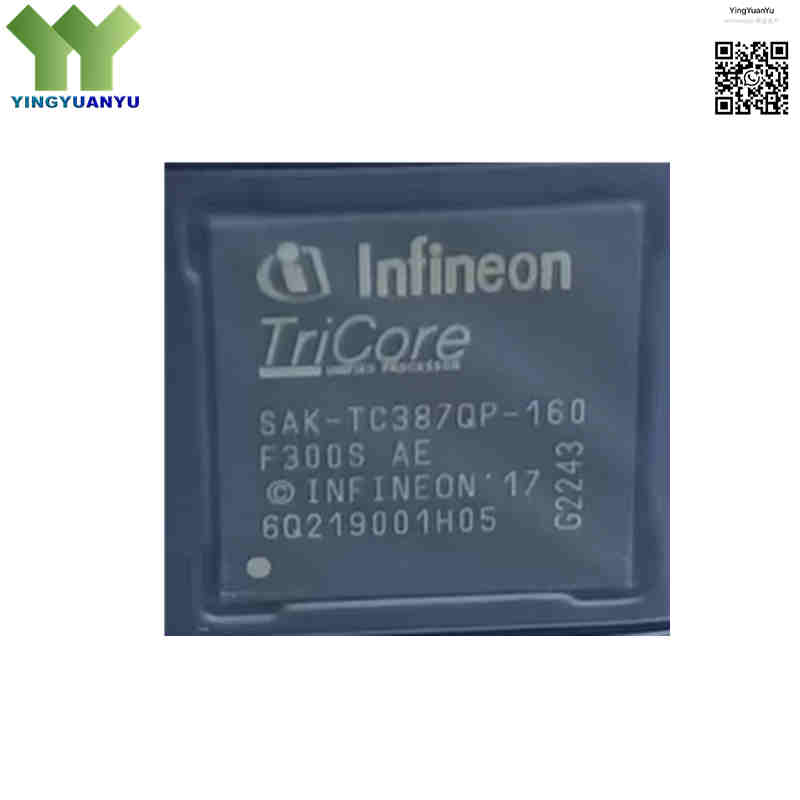

| Surface Marking / Silkscreen | SAK-TC387QP-160F300S AE / Infineon logo, Marking |
| Core Architecture | 32-bit TriCore™ v1.6.2 (Quad-Core / 4-Core, two lockstep pairs) |
| Maximum Clock Frequency | 300MHz |
| Program Flash Memory | 10 Megabytes (10MB) with ECC Protection |
| SRAM Capacity | 1.5MB (1568KB) total SRAM, 1376KB usable memory, ECC Protected |
| Peripherals & Interfaces | Gigabit Ethernet, 12x CAN-FD, 2x FlexRay, 24x LIN, 5x QSPI, 2x I2C |
| A/D Converters | 19 SAR ADC modules (10/12-bit) and Fast Compare ADC channels |
| DMA Channels | 128 DMA Channels |
| Processor Features | Integrated FPU, DSP Instruction Support, GTM Timer Module |
| Supply Voltage | Core: 1.2V~1.4V; I/O: 3.3V / 5V Tolerant |
| Operating Temperature Range | -40°C to +125°C (Automotive Grade 1, AEC-Q100) |
| Functional Safety Grade | ISO 26262 ASIL-D Compliant |
Typical Applications
- Automotive ADAS domain controllers, radar/vision sensor fusion, and autonomous driving computing platforms
- Electric vehicle (EV) main traction inverter control, battery management systems (BMS), and vehicle control units (VCU)
- Advanced engine management units (ECU), transmission controllers, and active chassis systems
- High-speed automotive central gateway routers and zone controllers
- Safety-critical industrial automation, robotics controllers, and heavy machinery controllers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does the “AE” stepping designation mean in SAK-TC387QP-160F300S AE?
A: The “AE” suffix stands for silicon revision code of AURIX™ TC387 MCU, representing stable production version with complete automotive qualification from Infineon.
Q2: How does Lockstep architecture enhance safety for TC387QP?
A: Four cores form two lockstep pairs. Each pair runs the same program synchronously. Hardware comparator detects computing faults immediately with no extra software burden.
Q3: What toolchains support SAK-TC387QP-160F300S AE?
A: It supports AURIX™ Development Studio, TASKING compiler, HighTec compiler, PLS UDE debugger and mainstream AUTOSAR MCAL solutions.
Q4: What temperature grade does this device belong to?
A: It is AEC-Q100 Grade 1 automotive grade, supporting operating temperature range of -40°C ~ +125°C.
Q5: Does this MCU integrate hardware security module?
A: Yes. It includes EVITA High HSM, supporting hardware AES encryption and secure boot to defend against hacking risks.
Q6: Is SAK-TC387QP-160F300S AE suitable for new project design?
A: It is mature automotive MCU. Contact us to confirm stock cycle and alternative models before your new design starts.
Q7: What package form is adopted for TC387QP?
A: This chip uses LFBGA-292 surface-mount package with dimension of 32.0mm × 32.0mm.
Q8: Can you provide datasheet and application reference documents of TC387QP?
A: Yes, we can provide official datasheet, hardware reference schematic upon your inquiry.
Q9: Are the components original and brand new?
A: All parts are original factory new, we can support supply chain inspection if required.
