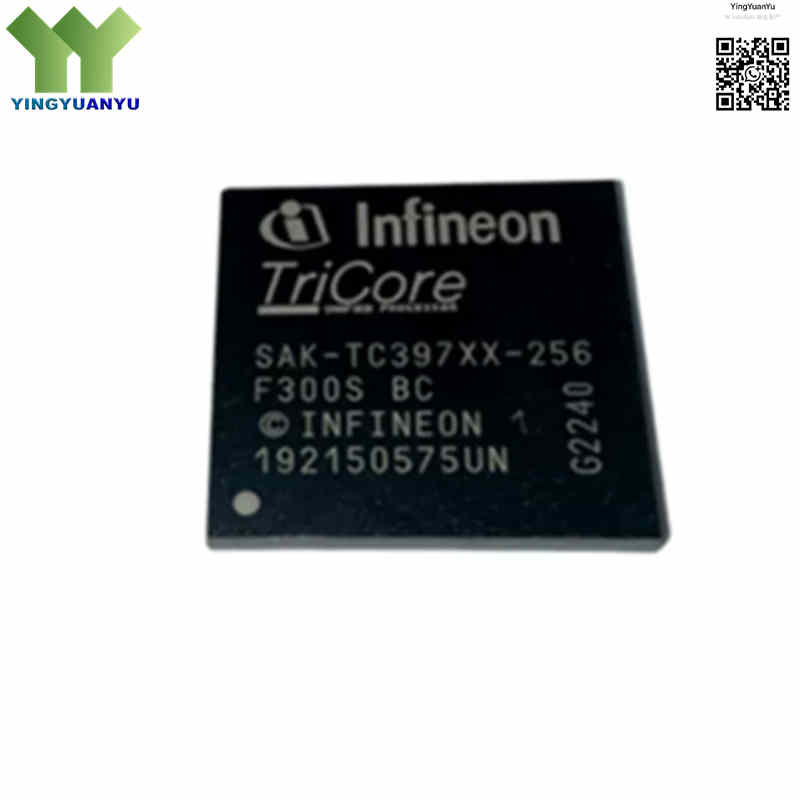

SAK-TC397XX-256F300S BC
SAK‑TC397XX‑256F300S BC
| Part Number | SAK-TC397XX-256F300S BC |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers (MCU) |
| Description | 32‑bit Hexa‑Core AURIX TC3xx Automotive MCU,300 MHz,16 MB Flash with ECC,6.9 MB SRAM with ECC,Gigabit Ethernet,PCIe,CAN FD,PG‑LFBGA‑292,Obsolete status,BC=Reel tape packing,AEC‑Q100 ‑40℃~+125℃. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
SAK‑TC397XX‑256F300S BC is Infineon AURIX TC3xx automotive MCU. 6 TriCore +4 lockstep cores, 300MHz (up to 400MHz for some batches). 16MB Flash(A‑B OTA),6.9MB SRAM with hardware ECC. Integrated Gigabit Ethernet,PCIe,CAN‑FD,FlexRay. ISO26262 ASIL‑D & AUTOSAR 4.2 compliant,‑40℃~+125℃ AEC‑Q100. Obsolete, use TC397‑XP/XA/XE for new projects. For domain controller,ADAS and EV powertrain.
Core Advantages
High‑Performance Safety Architecture
6‑core plus 4 lockstep check cores, powerful real‑time computing for automotive applications.
ASIL‑D Functional‑Safety Support
Hardware ECC, SMU & hardware isolation, meets highest automotive safety requirements.
Rich Automotive Interface
Gigabit Ethernet, PCIe, 12‑ch CAN‑FD, FlexRay for gateway & zone‑controller projects.
EVITA‑Full HSM Security
Built‑in HSM, supports secure boot, crypto acceleration and OTA firmware upgrade.
Large Memory & Peripherals
Large on‑chip memory, multi‑channel ADC, 128‑ch DMA, GTM timers for sensor & PWM control.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free / Halogen‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | PG‑LFBGA‑292 (17×17 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | SAK-TC397XX-256F300S BC |
| Core Architecture | 32‑Bit TriCore™ v1.6.2 (6 Cores,4 lockstep checker cores) |
| Maximum Speed | 300 MHz (Some batch supports max 400MHz, subject to datasheet) |
| Program Memory Size | 16 MB Flash (With Hardware ECC, A‑B bank swap for OTA) |
| RAM Size | 6.9 MB SRAM (With Hardware ECC) |
| DMA Channels | 128‑Channel DMA Controller |
| Connectivity | 1Gbps Ethernet, PCIe, CAN FD (12 channels), FlexRay, LIN, SPI, eMMC |
| A/D Converters | 18‑module ADC, total 76 analog input channels, SAR ADC & Delta‑Sigma Converter |
| Operating Voltage | Single supply 3.3V / 5V, with on‑chip voltage regulator |
| Operating Temperature | ‑40°C ~ +125°C (Automotive AEC‑Q100 Grade 1) |
| AUTOSAR Compliance | AUTOSAR 4.2 Compliant |
| Typical Power Consumption | ＜ 2 W |
| Part Status | Obsolete,Recommended Replacement: TC397‑XP / XA / XE Series |
Typical Applications
- Automotive Domain and Zone Controllers, Central Gateways
- Advanced Driver Assistance Systems (ADAS), Automated Driving Units, Radar Sensor Fusion
- Electric Vehicle Main Inverters, Battery Management Systems (BMS), Vehicle Control Unit(VCU)
- Active Safety Systems, Automatic Braking and Steering Control Modules
- High‑performance safety‑related industrial automation control
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What safety standard level does SAK‑TC397XX‑256F300S BC satisfy?
A1: Supports ISO 26262 ASIL‑D / SIL‑3, for safety‑critical automotive applications.
Q2: What does suffix BC / BD mean for SAK‑TC397XX‑256F300S?
A2: BC and BD are only reel‑tape packing codes, no temperature difference. BC is pin‑to‑pin and electrically compatible with BD version.
Q3: What is the upgrade of TC3xx family compared to TC2xx AURIX?
A3: TC3xx features higher 300MHz clock, up to 6 TriCore cores, larger memory, plus PCIe, Gigabit Ethernet, EVITA‑Full HSM.
Q4: Can SAK‑TC397XX‑256F300S BC directly drop‑in replace TC387 or TC377?
A4: Not direct drop‑in. Flash/RAM and peripherals differ, hardware modification & firmware migration required.
Q5: What package does SAK‑TC397XX‑256F300S BC adopt?
A5: PG‑LFBGA‑292, 17×17 mm, 292‑ball BGA SMD surface‑mount package.
Q6: Does this MCU integrate hardware security module?
A6: Yes, EVITA‑Full HSM on‑chip, supports secure boot, crypto acceleration and anti‑tamper for OTA update.
Q7: How can I get datasheet, pinout map and volume quotation?
A7: Datasheets, pin‑maps, stock and bulk price are available via Quick Inquiry form.
Q8: Is SAK‑TC397XX‑256F300S BC still active for new designs? What is XX suffix mean?
A8: This part is obsolete. “XX” is placeholder suffix. New‑design choose: TC397‑XP(standard), XA(high‑temp up to +150℃), XE(enhanced).
Q9: Is TC397‑XP pin‑compatible with original SAK‑TC397XX‑256F300S BC?
A9: Yes, pin‑to‑pin compatible under same PG‑LFBGA‑292 package. Minor firmware adjustment recommended.
