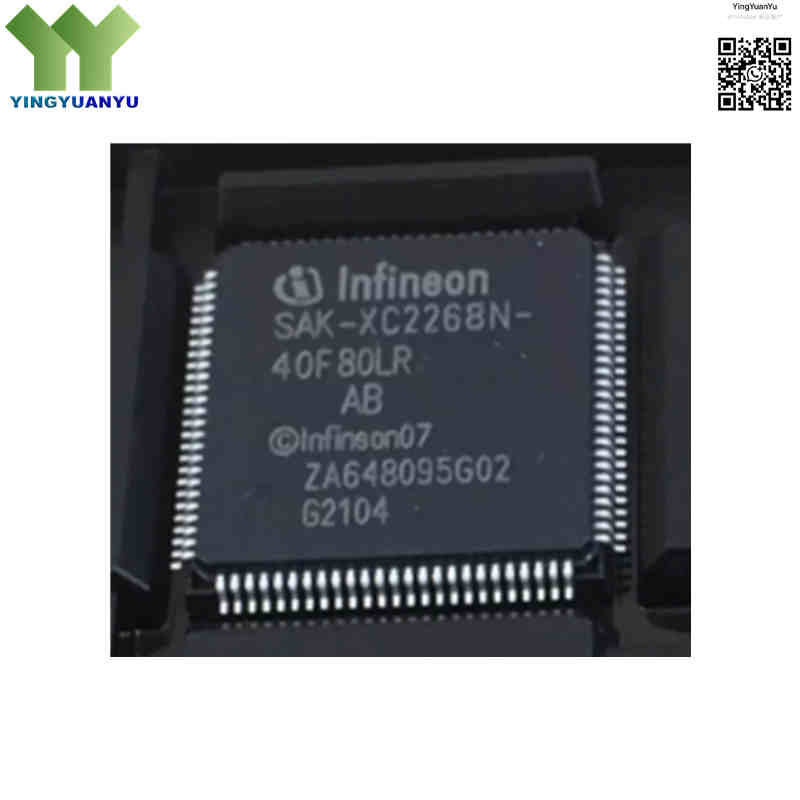

SAK-XC2268N-40F80LR AB
SAK-XC2268N-40F80LR AB
| Part Number | SAK-XC2268N-40F80LR AB |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers |
| Description | 16/32-Bit C166SV2 Microcontroller, 80MHz, 320KB Flash, Automotive Grade, PG-LQFP-100 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The SAK‑XC2268N‑40F80LR AB is a 16/32‑bit automotive MCU from Infineon XC2200N family, powered by C166SV2 core up to 80 MHz. It integrates 320 KB Flash and 42 KB SRAM, featuring 6‑node MultiCAN, CCU6, 10‑bit ADC and DSP extensions. Designed for automotive body, gateway and motor control applications, it comes in PG‑LQFP‑100‑8 package with AEC‑Q100 automotive grade reliability.
Core Advantages
High‑Performance C166SV2 Core
80 MHz 5‑stage pipeline C166SV2 core with DSP instruction support for fast real‑time control and signal processing.
Robust 6‑Node MultiCAN
ISO 11898 compliant 6‑channel MultiCAN, supports CAN gateway and multi‑node automotive network communication.
Flexible CCU6 Timing Module
CCU6 capture/compare unit delivers high‑precision PWM for motor control and pulse measurement.
Automotive‑Grade Reliability
10‑bit ADC with fast sample‑and‑hold, OCDS debug, AEC‑Q100 qualified, operating from -40°C to +125°C.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | PG‑LQFP‑100 |
| Package Pitch | 0.8 mm |
| Package Dimension | 14 mm × 14 mm |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | SAK-XC2268N-40F80LR AB,Marking |
| Core Architecture | 16/32‑Bit C166SV2 Core with DSP Engine |
| Maximum CPU Clock | 80 MHz |
| Program Memory (Flash) | 320 KB On‑Chip Flash Memory |
| RAM Capacity | 42 KB On‑Chip SRAM (including PSRAM / DSRAM) |
| Operating Supply Voltage | 3.0 V to 5.5 V (3.3V / 5V nominal) |
| Operating Temperature | -40°C to +125°C (Automotive Grade) |
| Storage Temperature | -55°C to +125°C |
| Peripherals & Interfaces | MultiCAN (6 Nodes), USIC (UART, SPI, I2C, LIN), CCU6, 10‑Bit ADC, Watchdog Timer, EBI/EMI |
| Device Status | End‑of‑Life, recommended for existing projects only |
Typical Applications
- Automotive Body Control Modules (BCM) and Gateway Controllers
- Electric Motor Control (BLDC, Stepper, and Induction Motors)
- Automotive Lighting Control Systems and HVAC Units
- Door, Window, and Seat Control Electronics
- Industrial Automation, Real‑Time Motion Control, and Power Supplies
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What CPU core powers the SAK‑XC2268N‑40F80LR AB?
A: It adopts Infineon 16/32‑bit C166SV2 core, max 80 MHz with DSP instruction support.
Q2: What is the operating temperature rating?
A: Automotive grade AEC‑Q100, operating range: -40°C ~ +125°C.
Q3: Does this MCU have integrated CAN controllers?
A: Yes, built‑in 6‑node MultiCAN modules for automotive multi‑node CAN network and gateway functions.
Q4: How to get datasheet, pinout, footprint or quotation?
A: Please submit inquiry form for datasheet, PCB footprint, stock check and volume pricing. Reply within 24h.
Q5: What do the part‑number suffixes mean?
A: 40 = internal device ID; F80 = 320 KB Flash; LR = automotive temp grade; AB = production release. Max frequency is 80 MHz.
Q6: Are there pin‑compatible variants within XC2268N series?
A: SAK‑XC2268N‑40F60LR AB is pin‑to‑pin compatible, with 240 KB Flash. Same PG‑LQFP‑100‑8 package, only memory capacity differs.
Q7: What is the difference between PG‑LQFP‑100‑8 and standard LQFP‑100?
A: PG‑LQFP‑100‑8 uses 0.8 mm pin pitch; standard LQFP‑100 is 1.0 mm pitch. They are not PCB‑footprint compatible, cannot swap directly.
Q8: This part is EOL, what are recommended replacements?
A: For new designs: Infineon AURIX TC27x / TC37x for high‑end automotive; XMC4000 for cost‑sensitive body control applications.
Q9: Can it work with 3.3V or 5V power supply?
A: Supply voltage range is 3.0V‑5.5V, supports both 3.3V and 5V system designs.
Q10: Is the ADC 12‑bit?
A: No, native ADC resolution is 10‑bit. Some third‑party sites mis‑state it as 12‑bit.
Q11: Does this MCU support on‑chip debug?
A: Yes, equipped with OCDS on‑chip debug system for real‑time debugging and trace functions.
Q12: What are key differences between XC2268N and XC2267N?
A: XC2268N offers more CAN nodes and larger memory; XC2267N has lower memory and fewer CAN channels, not pin‑compatible.
