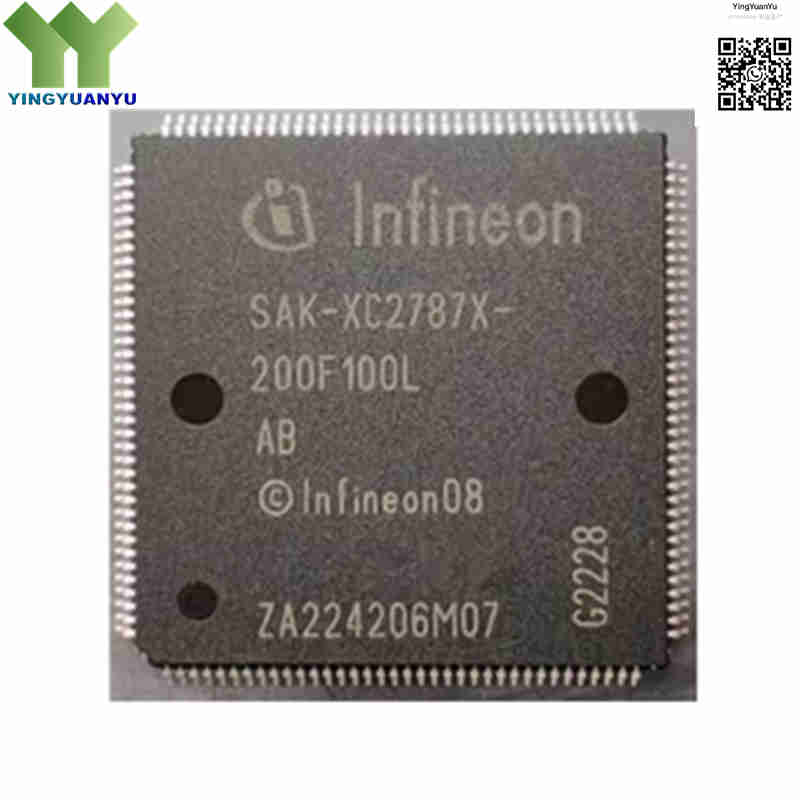

SAK-XC2787X-200F100L AB
SAK-XC2787X-200F100L AB
| Part Number | SAK-XC2787X-200F100L AB |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers |
| Description | High-performance 16/32-bit XC2000 family microcontroller, 1.6MB Flash, 100MHz CPU, optimized for advanced automotive body, chassis, and industrial control systems. |
Product Overview
The SAK-XC2787X-200F100L AB is a high-performance 16/32-bit microcontroller from Infineon XC2000 series. It adopts enhanced C166SV2 core running at up to 100 MHz, delivering excellent real-time performance and low power consumption. Integrated with 1.6MB embedded Flash and 138KB internal SRAM, it is equipped with multi-channel ADC, CCU6 capture/compare units and rich serial interfaces. This MCU is widely used for automotive body electronics, vehicle gateway units and precision industrial motor control systems.
Core Advantages
Advanced C166SV2 Core Performance
Operating up to 100 MHz, the enhanced core features single-cycle instruction execution and integrated Macro-Serializer, effectively accelerating computation and ensuring stable response for real-time control loops.
Massive Secure Memory Allocation
Equipped with 1.6MB dual-bank program Flash with ECC protection. It supports background flash programming, improving system stability and continuous operating capability.
Comprehensive Multi-Bus Networking
Built-in MultiCAN module supports 6 independent CAN nodes and 128 message objects. It works perfectly as an automotive central gateway to process massive vehicle bus data.
Intelligent Hardware Signal Co-Processing
Dual CCU6 units and dedicated PEC peripheral controller independently generate high-speed PWM and collect sensor signals, greatly reducing the load of main CPU.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | LQFP-144(20x20mm) |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking / Silkscreen | SAK-XC2787X-200F100L AB |
| Core Processor Architecture | 16/32-bit C166SV2 Core Technology |
| Maximum CPU Frequency | 100 MHz |
| Program Memory (Flash) | 1,600 KB (1.6 MB) with ECC protection |
| SRAM Capacity | 138 KB |
| Communication Interfaces | MultiCAN (6 Nodes), USIC Channels (UART, SPI, I2C, LIN), External Bus Interface |
| A/D Converter Subsystem | Up to 30 channels, high-precision 10-bit / 12-bit analog input resolution |
| Operating Voltage Range | 3.0V to 5.5V (Single supply with internal voltage regulation rails) |
| Operating Temperature Range | -40°C to +125°C (Automotive Grade) |
Typical Applications
- Automotive Body Control Modules (BCM) and Gateway Routing Systems
- Advanced Electronic Power Steering (EPS) and Suspension Control Units
- Industrial Multi-Axis AC/DC Brushless Servo Motor Automation Drives
- Renewable Energy Power Conversion Nodes and Solar Inverter Controls
- Commercial Transport Fleet Telematics and Complex Hydraulic Control Units
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is the SAK-XC2787X-200F100L AB microcontroller completely genuine and original?
A: Yes, we provide 100% original, brand-new factory stock sourced directly through authorized Infineon manufacturing lines with complete batch code validation records.
Q2: What is the significance of the “SAK” prefix and “AB” suffix in the part number?
A: The “SAK” prefix stands for extended automotive temperature range (-40°C to +125°C), while the “AB” suffix represents the specific silicon revision version.
Q3: Does the internal Flash of this device support EEPROM emulation functionality?
A: Yes, the dual-bank flash supports EEPROM emulation, which can store regular data without additional external memory chips.
Q4: How can our design engineers obtain the full peripheral register documentation and software drivers?
A: Please submit your request via our Quick Inquiry form. Our engineering team will send complete user guides and code libraries to you within 24 hours.
