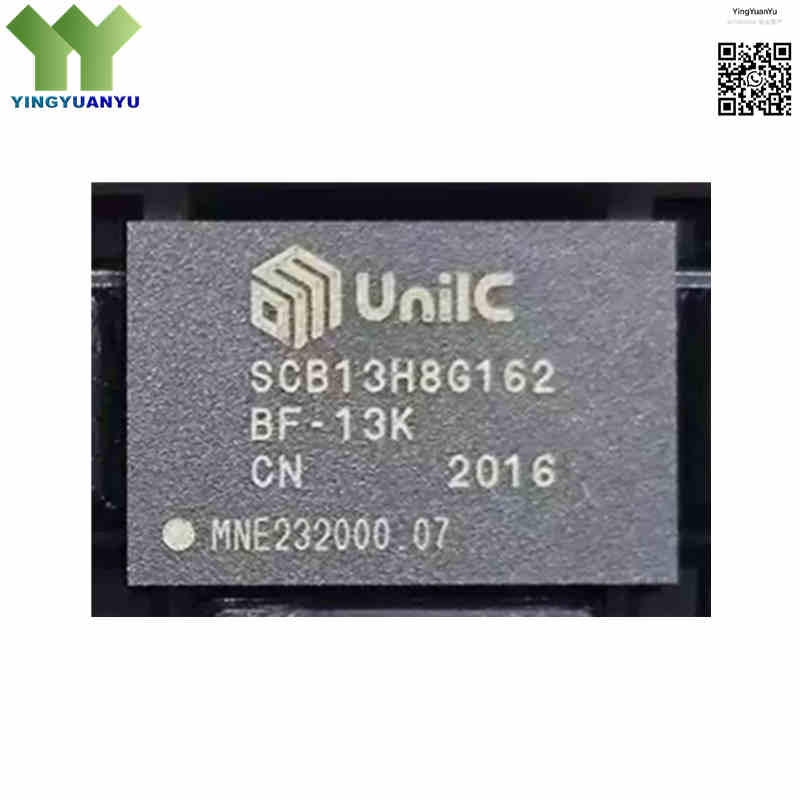

SCB13H8G162BF-13K
SCB13H8G162BF-13K
| Part Number | SCB13H8G162BF-13K |
|---|---|
| Manufacturer | Unicmemory (Unigroup Guoxin) |
| Category | Integrated Circuits (ICs) > Memory > SDRAM > DDR3L / DDR3 |
| Description | 8Gb (64M × 16 × 8 Banks) Industrial Grade DDR3L SDRAM, 1.35V / 1.5V Dual Voltage, 1600/1866Mbps, 96-Ball FBGA Package, Operating Temperature -40°C ~ +95°C. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
SCB13H8G162BF-13K is an 8Gb industrial-grade DDR3L SDRAM from Unicmemory, organized as 64M ×16 ×8 internal banks. It supports 1600/1866Mbps data rates with 1.35V nominal voltage and compatibility for 1.5V DDR3 platforms. Equipped with ODT, DLL and auto self-refresh functions. The 96-ball FBGA package and -40℃~+95℃ wide temperature range make it ideal for industrial control, network devices and edge computing systems.
Core Advantages
Dual Voltage Compatibility
1.35V low-voltage operation reduces power consumption, fully compatible with legacy 1.5V DDR3 controllers.
Industrial Wide Temperature Support
-40℃ ~ +95℃ operating range, delivering stable performance in harsh industrial environments.
Dual Speed Grade Support
Supports 1600Mbps and 1866Mbps data rates, flexible for various host chip timing settings.
Complete Built-in Memory Functions
Integrated ODT, differential DQS, DLL, self-refresh and power-saving modes to simplify peripheral circuit layout.
Key Specifications
| Brand | Unicmemory |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD Resource | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 96-FBGA (8.6 mm × 13.7 mm) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking | SCB13H8G162BF-13K Marking |
| Memory Type | DDR3L / DDR3 SDRAM |
| Memory Density & Organization | 8Gb (64M × 16 × 8 Internal Banks) |
| Supported Data Rate | 1600Mbps / 1866Mbps |
| Supply Voltage (VDD/VDDQ) | 1.283V ~ 1.45V (1.35V Nominal), compatible with 1.5V |
| Bus Width | 16-bit (×16) |
| Supported CL Timing | CL5 / CL6 / CL7 / CL8 / CL9 / CL10 / CL11 / CL13 |
| Operating Temperature Range | -40°C ~ +95°C (Industrial Grade) |
| Shipping Form | Tape & Reel / Tray |
Typical Applications
- Industrial single-board computer, industrial HMI and industrial control equipment
- Network routers, industrial switches, gateway and communication modules
- AI edge computing equipment, industrial surveillance NVR/DVR
- Automotive peripheral equipment, intelligent IoT terminal devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Processing Time | Ship within 1-2 working days |
| International Delivery Time | 3-7 working days |
| Available Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Options | Bank T/T, PayPal, Credit Card, Western Union |
Technical Support
Contact us for datasheet, sample application, bulk quotation and BOM alternative consultation. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the difference between -13K and -13KI suffix?
A1: Their electrical specifications are identical. The suffix only distinguishes production batches and customer customized marking, verify before mass procurement.
Q2: Can SCB13H8G162BF-13K substitute other brands of 8Gb ×16 DDR3L?
A2: It can serve as pin-to-pin replacement if package, bus width, voltage and speed grade match. Hardware prototype testing is required before mass production.
Q3: Is this memory IC industrial temperature grade?
A3: Yes. Operating temperature covers -40°C ~ +95°C, suitable for industrial equipment working under severe ambient conditions.
Q4: Can this DDR3L operate directly on a 1.5V standard DDR3 mainboard?
A4: Supported. This DDR3L chip features dual-voltage design and maintains backward compatibility with traditional 1.5V DDR3 systems.
Q5: What package differences should I pay attention to for similar memory models?
A5: The ×16 version adopts FBGA96 package, while ×8 variant uses FBGA78. Do not mix two different packages during ordering and PCB design.
Q6: What CAS Latency timings does this DDR3L support?
A6: Supports CL5 / CL6 / CL7 / CL8 / CL9 / CL10 / CL11 / CL13, adjustable based on host controller configuration.
Q7: What are typical alternative memory models I can consider?
A7: You can compare equivalent industrial-grade 8Gbit ×16 DDR3L FBGA96 memory from mainstream brands. Contact us to get detailed cross-reference BOM list.
Q8: Does this chip support automatic self-refresh function for low-power scenarios?
A8: Yes, integrated self-refresh and power-saving modes for low-power industrial IoT and edge devices.
Q9: Can you provide samples of SCB13H8G162BF-13K for testing?
A9: Samples are available. Please send your demand quantity and application information for sample quotation and lead time confirmation.
