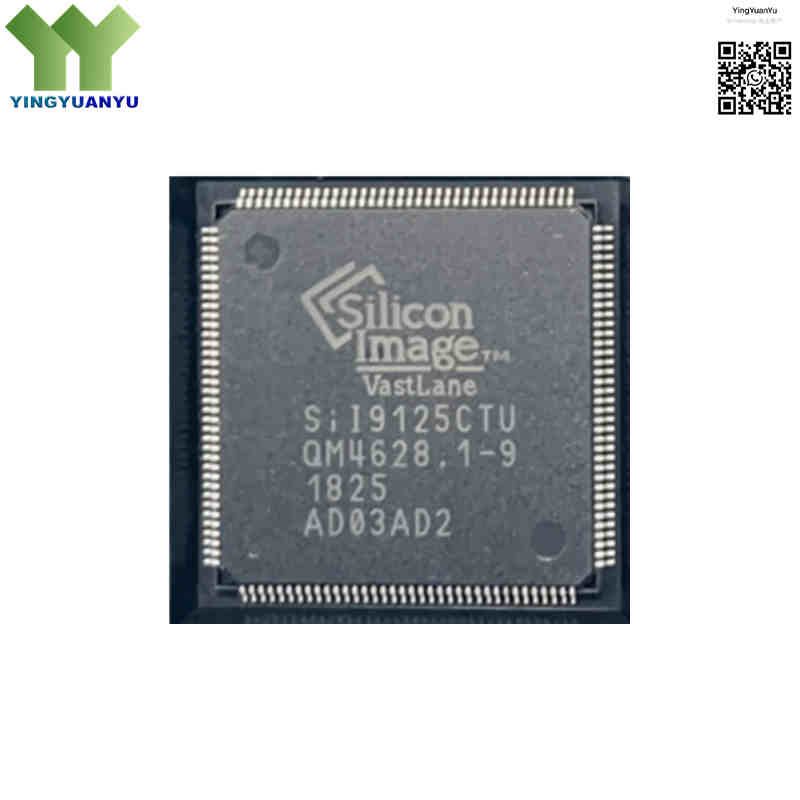

SII9125CTU
SII9125CTU
| Part Number | SII9125CTU |
|---|---|
| Manufacturer | Lattice Semiconductor (Silicon Image) |
| Category | Integrated Circuits (ICs) > Interface – Specialized / HDMI Receivers |
| Description | High-performance Dual-Input HDMI 1.3 Receiver featuring 1080p Deep Color support, integrated HDCP decryption engines, multi-channel digital audio outputs, and an adaptive equalizer layout in a 144-pin TQFP footprint. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
SII9125CTU is a dual-input HDMI 1.3 receiver IC from Silicon Image (Lattice). Built with a 2:1 HDMI mux, it supports 1080p deep color, integrated HDCP decryption, I2S/SPDIF audio output. It delivers stable low-power video & audio decoding for AV equipment, digital TVs and professional AV matrix.
Core Advantages
Built-in 2:1 HDMI Input Mux
Seamlessly switch between two HDMI sources, reduce peripheral components and simplify PCB wiring.
Multi-Channel Audio Processing
Extract uncompressed HD audio from HDMI, output via I2S or SPDIF to connect DSP and audio amplifiers directly.
Adaptive Cable Equalization
Compensate signal attenuation, jitter and skew from long HDMI cables to guarantee stable transmission.
Factory Preloaded HDCP Keys
Built-in HDCP decryption engine with pre-programmed keys, no extra key storage circuit required.
Key Specifications
| Brand | Lattice Semiconductor / Silicon Image |
|---|---|
| Part Number | SII9125CTU |
| RoHS Status | RoHS Compliant / Lead-Free / Green Manufacturing Processes Approved |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and Pinout Footprint Configurations available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | TQFP-144 (20mm × 20mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead-Free Reflow Solder Assembly Line Compatible) |
| Surface Marking / Silkscreen | SiI9125CTU Marking |
| HDMI Standard Generation | HDMI 1.3 Compliant (with full backwards compatibility to HDMI 1.0, 1.1, and 1.2) |
| HDMI Input Channels | Dual 2-channel TMDS HDMI Input (Built-in 2:1 Hardware Mux) |
| Supported Maximum Resolution | Full HD 1080p at 60Hz / WUXGA graphics standards |
| Color Depth Headroom | Supports 24-bit, 30-bit, and 36-bit Deep Color spaces natively |
| Digital Video Output Formats | 24-bit RGB/YCbCr 4:4:4, or 16/20/24-bit YCbCr 4:2:2 pixel mapping options |
| Digital Audio Interfaces | Up to 4× I2S lines (for 8-channel LPCM) and single-wire S/PDIF interface outputs |
| Max Audio Sampling Rate | 192kHz stereo / 7.1 surround LPCM audio |
| Configuration Bus Link | Standard I2C local control slave interface configuration |
| Core and I/O Voltages | Dual Rails: 1.8V Digital Core supply / 3.3V stable peripheral I/O grid input |
| Typical Operating Power Consumption | Low power single-chip solution, typical total power < 300mW |
| Operating Temperature Range | 0°C to +70°C (Standard Commercial Grade Thermal Bound Parameters) |
| Storage Temperature Range | -40°C ~ +125°C |
| Humidity Tolerance | 85% Relative Humidity (Non-Condensing) |
| TMDS Signal Rate Support | Up to 225MHz TMDS clock frequency |
| Built-in Protection Module | Integrated HDCP Decryption Engine with factory pre-programmed secure authentication keys |
| Standard Packaging Form | ESD-shielded plastic tray packing |
Typical Applications
- Audio/Video (AV) Receivers, Home Theater Hub Systems, and Soundbar Interface Management
- Professional AV Matrices, High-Definition Video Splitters, and Long-Distance KVM Extenders
- Digital Signage Media Players, High-Definition Conferencing Units, and Telepresence Systems
- Advanced Flat-Panel Projectors, Commercial Displays, and Industrial Video Monitors
- Broadcast Video Capture Hardware, Multi-Stream Switcher Boards, and Medical Imaging Processing
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is SII9125CTU 100% original genuine?
A: Yes. All SII9125CTU are brand new original chips from Silicon Image / Lattice. Every batch will be inspected strictly. We ship components in original ESD trays to protect 100-pin TQFP pins from damage and moisture.
Q2: Can 2 HDMI input ports work simultaneously?
A: No. This IC integrates a built-in 2:1 multiplexer. Two HDMI sources can be connected at the same time, but only one channel works for decoding. Source switching is controlled by I2C firmware commands.
Q3: What does CTU in SII9125CTU stand for?
A: C = Commercial temperature grade (0℃ ~ +70℃). TU = Lead-free RoHS 144-pin TQFP packaging, designed for SMT production lines.
Q4: How to get datasheet, register guide and bulk price?
A: Fill in the Quick Inquiry form on this page, leave your project info and order quantity. Our technical team will send datasheets, code snippets and tiered quotations within 24 hours.
Q5: What is the delivery time for SII9125CTU?
A: Stock items can be shipped within 1-2 working days. Global delivery takes 3-7 days via DHL/FedEx/UPS.
Q6: Can I get free samples for testing?
A: Yes, sample orders are supported. Submit your sample demand via inquiry form, we will confirm sample cost and freight for you.
