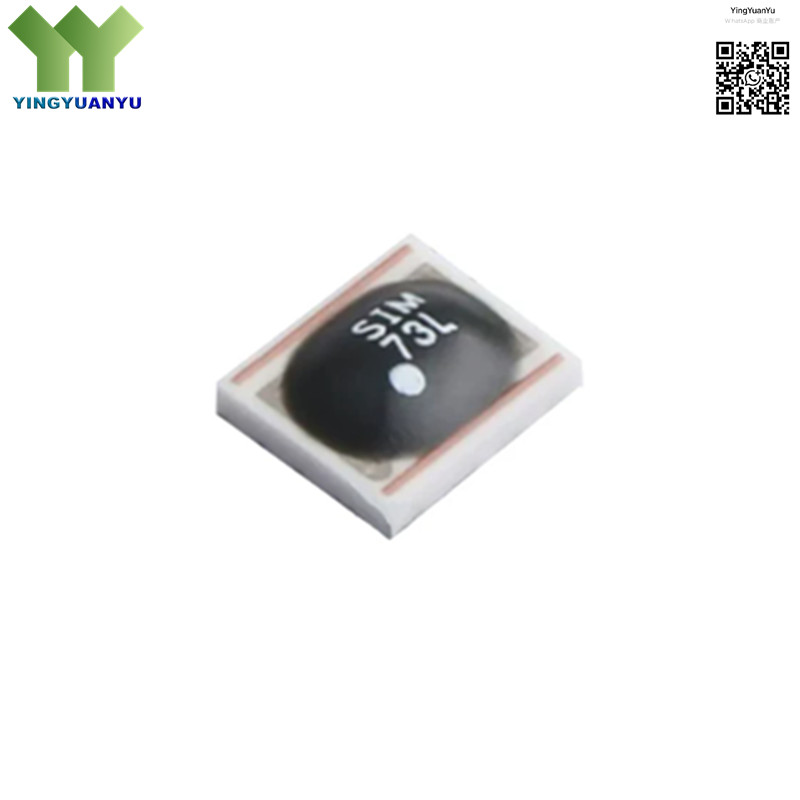

SIM-73L+
SIM-73L+
| Part Number | SIM-73L+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Mixers; Double Balanced Mixers |
| Description | Double Balanced Mixer, 10 – 3000 MHz, Low Conversion Loss, 50Ω, SMD-8P Package |
Product Overview
The SIM-73L+ is a high-performance broadband double balanced mixer designed for RF, microwave, wireless communication, and test & measurement systems. It operates over a wide frequency range from 10 MHz to 3000 MHz with low conversion loss, high isolation, excellent linearity, and consistent performance. Built with advanced semiconductor technology and compact surface-mount packaging, this mixer delivers stable electrical characteristics, high reliability, and robust operation across wide temperature ranges. It features 50Ω impedance matching for seamless integration into high-density RF circuits, transceivers, and frequency conversion systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | 10 – 3000 MHz |
| Impedance | 50Ω |
| Conversion Loss | 6.5 dB Typical |
| Package Type | SMD-8P |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF Frequency Up & Down Conversion
- Wireless Communication Transceivers
- Test & Measurement Instrumentation
- Broadband RF & Microwave Systems
- 2.4GHz ISM Band Applications
- Signal Processing & Modulation Circuits
- High-Density RF PCB Designs
- Industrial & Commercial RF Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
