SISA12ADN-T1-GE3
SISA12ADN-T1-GE3
| Part Number | SISA12ADN-T1-GE3 |
|---|---|
| Manufacturer | Vishay |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-channel enhancement mode power MOSFET,30 V,22 A,4.3 mΩ, high efficiency, PowerPAK1212-8 surface mount package |
Product Overview
The SISA12ADN-T1-GE3 is a high-performance N-channel power MOSFET manufactured by Vishay. It features low on-resistance, low gate charge and excellent switching performance, which effectively reduces power consumption and heat generation. With compact package and high reliability, this MOSFET is suitable for high-frequency switching circuits. It is widely applied in DC-DC converters, motor drives, power management modules and various industrial power systems.
| Key Specifications | |
|---|---|
| Brand | Vishay |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | PowerPAK1212-8 |
| Mounting Type | Surface Mount (SMD) |

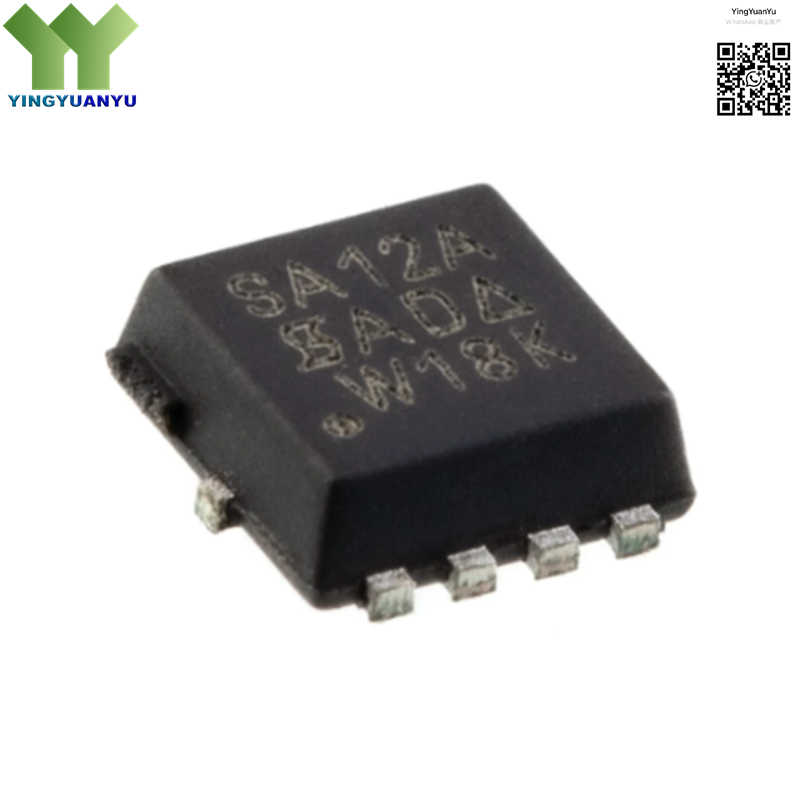

| Surface Marking / Silkscreen | SA12A Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Id) | 22 A |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- DC-DC Converter Circuits
- Battery Power Management Systems
- Motor Drive and Control Modules
- Portable Electronic Devices
- Industrial Switching Power Supplies
- Load Switching Circuits
- LED Driver Power Units
- General High Frequency Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is SISA12ADN-T1-GE3 RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the channel type of this MOSFET?
A: It is an N-channel power MOSFET. - Q: Can I get samples for testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the maximum operating temperature?
A: The operating temperature range is -55°C to +175°C.
