SN74HC21PWR

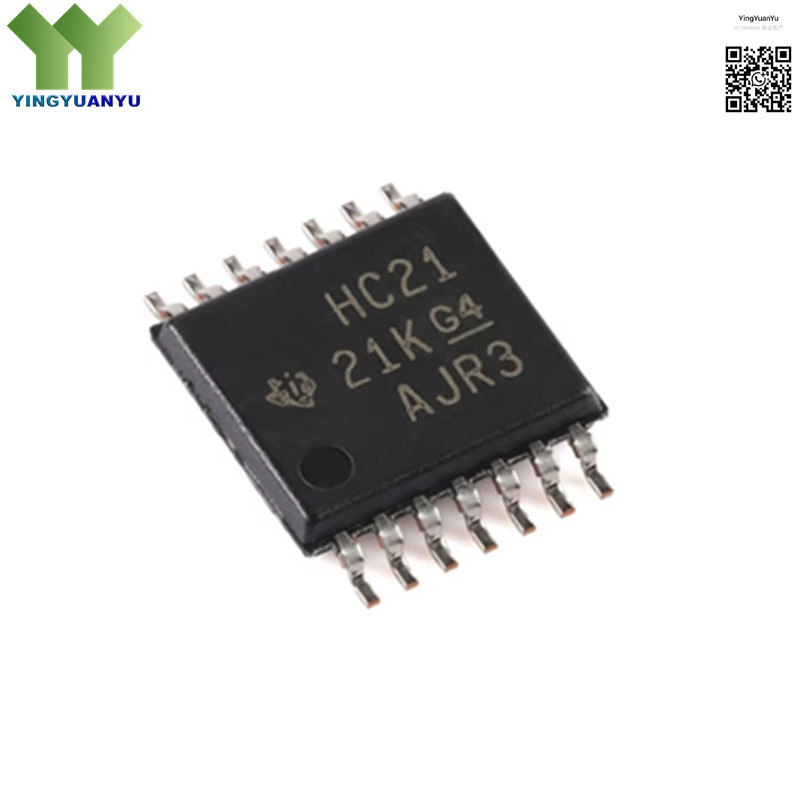

SN74HC21PWR
| Part Number | SN74HC21PWR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Logic ICs; Dual 4-Input Positive AND Gates |
| Description | Dual 4-Input AND Gate, High-Speed CMOS, 2V to 6V, TTL Compatible, TSSOP-14 Package |
Product Overview
The SN74HC21PWR is a high-speed CMOS logic device featuring two independent 4-input positive AND gates. It operates over a wide 2V to 6V supply voltage range, offers low power consumption, high noise immunity, and direct TTL compatibility for seamless integration into digital systems. The device provides reliable logic operation with fast propagation delays and stable performance across industrial temperature ranges. Designed for general-purpose digital logic applications, it supports multiple input AND logic functions in compact control circuits, embedded systems, and digital electronics. Housed in a space-saving TSSOP-14 surface-mount package, it delivers efficient logic performance for consumer, industrial, and communication designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Logic Function | Dual 4-Input Positive AND Gate |
| Supply Voltage | 2V to 6V |
| Logic Family | HC CMOS |
| Package Type | TSSOP-14 |
| Compatibility | TTL Compatible Inputs |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- General-Purpose Digital Logic Circuits
- Microcontroller Interface Systems
- Industrial Control Logic
- Automotive Electronics
- Consumer Electronics
- Data Processing Systems
- Logic Signal Conditioning
- Embedded Control Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
