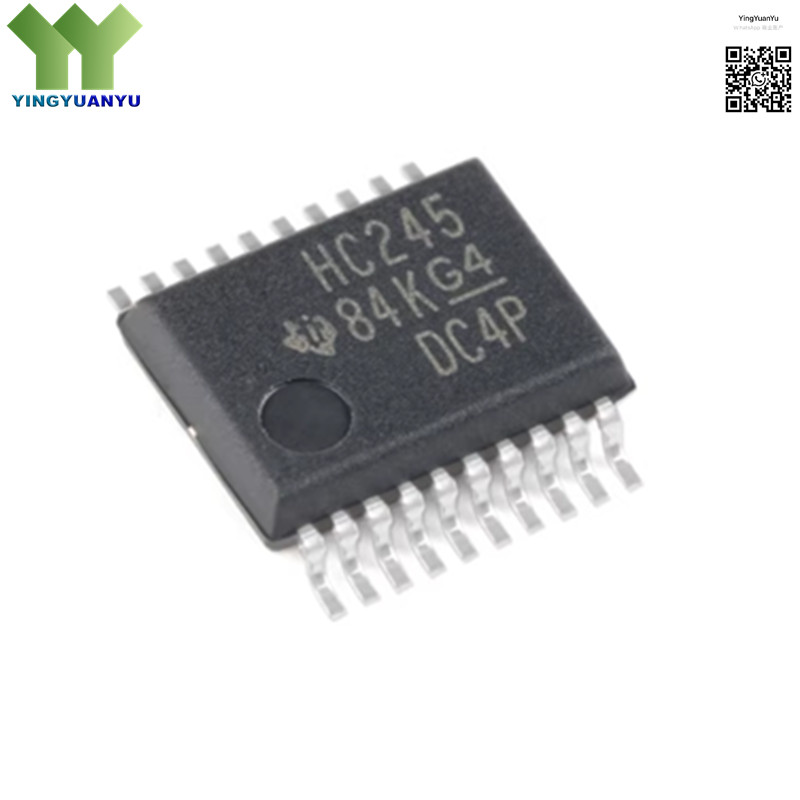

SN74HC245DBR
SN74HC245DBR
| Part Number | SN74HC245DBR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Logic ICs; Octal Bus Transceivers |
| Description | Octal Bus Transceiver, Non-Inverting, 3-State Outputs, 2V to 6V, SSOP-20 Package |
Product Overview
The SN74HC245DBR is a high-speed CMOS octal bus transceiver designed for asynchronous two-way communication between data buses. It features 3-state output capabilities that allow the device to drive heavy bus loads efficiently and support bidirectional data flow with direction control. Operating from a wide 2V to 6V supply voltage range, this IC offers low power consumption, high noise immunity, and fast propagation delay for reliable digital system operation. The device includes output enable and direction control pins for flexible bus management, making it ideal for data buffering, level translation, and bus interface applications. Housed in a compact SSOP-20 surface-mount package, it provides space-efficient integration for consumer electronics, industrial controls, and embedded systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Channels | Octal (8 Channels) |
| Supply Voltage | 2V to 6V |
| Output Type | 3-State, Non-Inverting |
| Package Type | SSOP-20 |
| Logic Family | HC CMOS |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Bidirectional Data Bus Buffering
- System Bus Interface
- Data Level Translation
- Microcontroller I/O Expansion
- Digital Communication Systems
- Industrial Control Circuits
- Embedded Computing Systems
- Consumer Electronics
