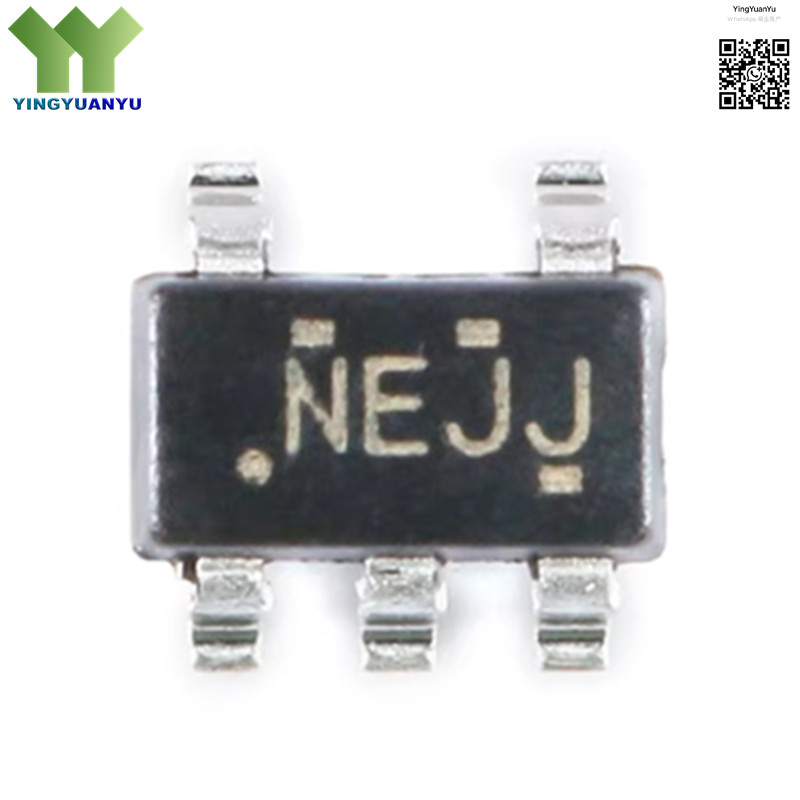

SN74LV1T34DBVR
| Part Number | SN74LV1T34DBVR |
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) – Logic – Buffers, Drivers, Receivers, Transceivers |
| Description | IC BUF NON-INVERT 1CH 5SOT-23 |
Product Overview
The SN74LV1T34DBVR is a single-channel, non-inverting buffer designed for ultra-low-voltage and high-speed digital signal applications. It supports a wide operating voltage range, features high noise immunity, low power consumption, and 5V-tolerant inputs, making it ideal for signal buffering, level shifting, and driving in compact electronic systems. This device offers fast switching speed and robust ESD protection, ensuring reliable performance in portable electronics, IoT devices, and low-voltage embedded systems. Housed in a tiny 5-SOT-23 package, it is optimized for space-constrained designs.
Key Specifications
| RoHS | RoHS Compliant |
| EDA/CAD | Available |
| Warranty | 1 Year |
| Brand | Texas Instruments |
| Logic Type | Non-Inverting Buffer |
| Number of Channels | 1 |
| Voltage – Supply | 1.65V ~ 5.5V |
| Input Type | 5V Tolerant |
| Mounting Type | Surface Mount |
| Package / Case | 5-SOT-23 |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- Portable Electronic Devices
- IoT Sensor Nodes
- Low-Voltage Microcontroller Interfaces
- Signal Buffering and Level Shifting
- Battery-Powered Equipment
- Consumer Digital Electronics
- Industrial Control Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
