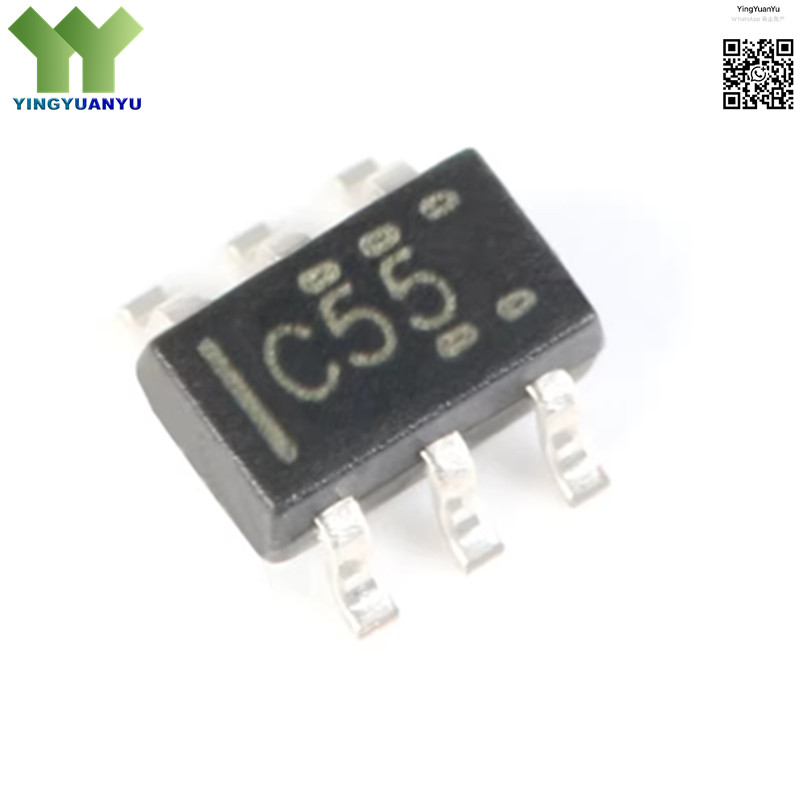

SN74LVC1G3157DCKR
SN74LVC1G3157DCKR
Basic Information
| Part Number | SN74LVC1G3157DCKR |
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) > Interface > Analog Switches, Multiplexers, Demultiplexers |
| Description | IC ANALOG SWITCH 1X2 6SC70, Single Channel 2:1 Analog Multiplexer/Demultiplexer Switch |
Product Overview
The SN74LVC1G3157DCKR is a single-pole double-throw (SPDT) 1-channel 2:1 analog switch and multiplexer designed for low-voltage digital and analog signal routing applications. It supports wide operating voltage, low on-resistance, and fast switching speed while maintaining low power consumption. The device is compatible with standard CMOS and TTL logic levels, offering excellent signal integrity and ESD protection. Housed in an ultra-small 6-SC70 surface-mount package, it is ideal for space-constrained portable electronics, battery-powered devices, and compact embedded systems.
Key Specifications
| RoHS | RoHS Compliant |
| EDA/CAD Models | Available (Schematic, PCB Footprint, Symbol) |
| Warranty | 1 Year |
| Brand | Texas Instruments |
| Switch Type | 1-Channel 2:1 Analog Switch |
| Voltage – Supply | 1.65V ~ 5.5V |
| On-State Resistance | Typical 5Ω |
| Switching Time | Typical 5ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 6-SC70 |
Typical Applications
- Portable Electronic Devices
- Wearable Technology
- Smartphone and Tablet Peripherals
- Analog Signal Routing and Switching
- Battery-Powered Sensor Modules
- Compact IoT Devices
- Consumer Electronics
- Low-Voltage Embedded Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
