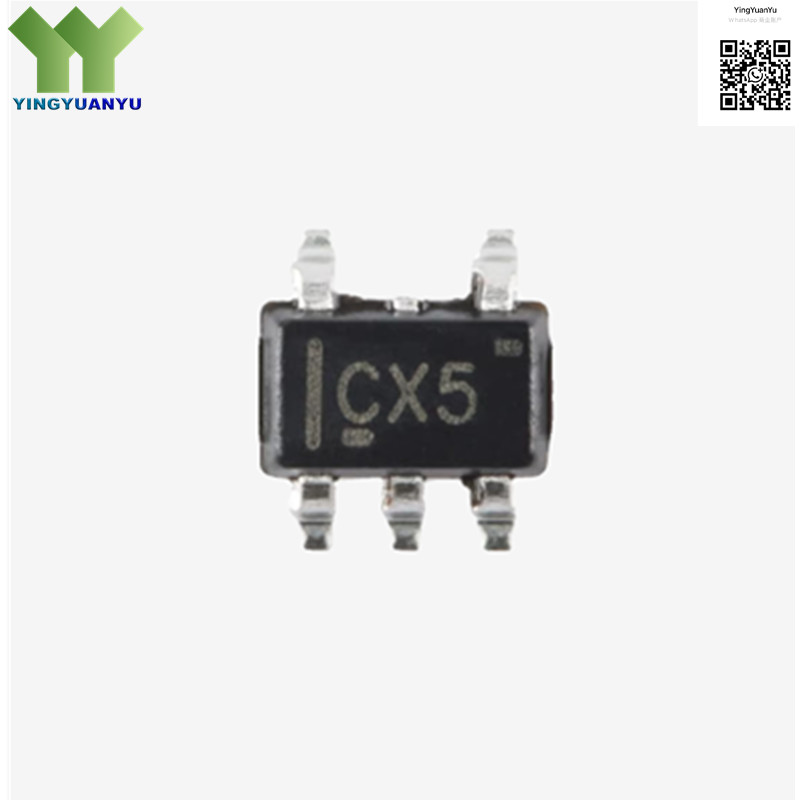

SN74LVC1G80DCKR
SN74LVC1G80DCKR
Basic Information
| Part Number | SN74LVC1G80DCKR |
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) > Logic > Flip-Flops |
| Description | IC SINGLE D-TYPE FLIP-FLOP POSITIVE EDGE TRIGGER 5-SC70, Single Positive Edge-Triggered D-Type Flip-Flop with 3-State Output |
Product Overview
The SN74LVC1G80DCKR is a single positive edge-triggered D-type flip-flop designed for low-voltage digital logic systems. It features a 3-state output for bus-oriented applications, high noise immunity, and wide voltage compatibility. The device supports high-speed operation with low power consumption, making it ideal for data storage, signal synchronization, and clock-driven logic functions in compact electronic designs. Housed in an ultra-small 5-SC70 package, it provides reliable performance for portable electronics, IoT devices, and high-density embedded circuits.
Key Specifications
| RoHS | RoHS Compliant |
| EDA/CAD Models | Available (Schematic, PCB Footprint, Symbol) |
| Warranty | 1 Year |
| Brand | Texas Instruments |
| Logic Type | D-Type Flip-Flop, Positive Edge Trigger |
| Voltage – Supply | 1.65V ~ 5.5V |
| Output Type | 3-State |
| Propagation Delay | Typical 3.6ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 5-SC70 |
Typical Applications
- Portable Electronic Devices
- IoT Sensor Nodes
- Data Synchronization Circuits
- Clock-Driven Logic Systems
- Microcontroller I/O Interfaces
- Low-Voltage Digital Designs
- High-Density Embedded Systems
- Wearable Electronics
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
