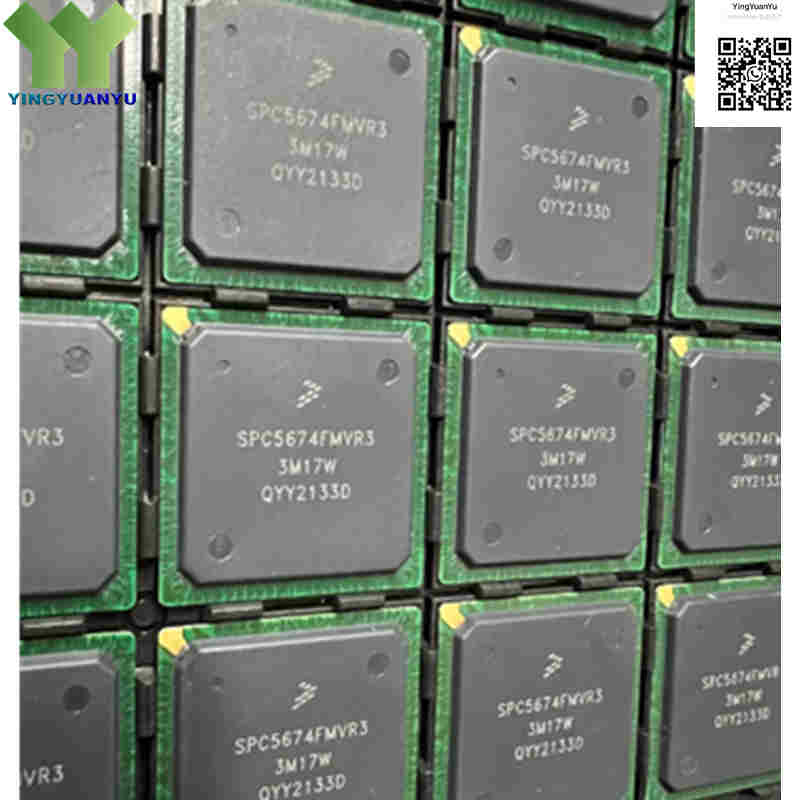

SPC5674FMVR3
SPC5674FMVR3
| Part Number | SPC5674FMVR3 |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers |
| Description | 32-bit Power Architecture MCU, 4MB Flash, 256KB RAM, 264MHz, optimized for advanced automotive powertrain control, suitable for harsh industrial and aerospace applications. |
Product Overview
The SPC5674FMVR3 is a high-performance 32-bit microcontroller built on the Power Architecture technology, designed and manufactured by NXP Semiconductors. Engineered specifically to address the extreme computing and reliability requirements of mid- to high-end automotive powertrain controls, safety systems, and industrial aerospace applications, this MCU operates at speeds up to 264 MHz. It integrates 4MB of high-density embedded Flash memory alongside 256KB of ECC-enabled SRAM, ensuring ample space for complex software algorithms. With its sophisticated timer modules, comprehensive serial communication nodes, and advanced analog-to-digital subsystems, the SPC5674FMVR3 offers unparalleled real-time processing capability for precise and efficient execution under demanding environment constraints.
Core Advantages
Dual-Issue Power Architecture Core
Featuring a high-frequency e200z7 core operating up to 264 MHz with an integrated Floating Point Unit (FPU), the SPC5674FMVR3 delivers top-tier scalar computing capacity and exceptionally fast math instruction throughput required for sophisticated engine and control feedback loops.
Substantial Flash & RAM Density with ECC Protection
Equipped with 4MB of embedded Flash memory with Error Correction Code (ECC) and 256KB of ECC-protected SRAM, the MCU provides exceptional system integrity by capturing and repairing soft memory errors dynamically, maximizing hardware up-time and system stability for safety-critical devices.
Advanced Time Processing Subsystem
Features an autonomous dual eTPU (Enhanced Time Processing Unit) engine that offloads timing-critical execution paths from the main core. This standalone scheduling architecture enables independent micro-coded multi-channel control over complex injection, timing, and motor driver functions.
Automotive-Grade Safety & Reliability
Fully certified under AEC-Q100 automotive standards and compliant with ASIL-D functional safety requirements, the chip features fault-collection control blocks, multi-window watchdogs, and high-temperature tolerance mechanisms designed to guarantee unwavering operational safety in harsh electrical and high-vibration systems.
Key Specifications
| Brand | NXP Semiconductors |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | 416-BGA (27x27mm) |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking / Silkscreen | SPC5674FMVR3 Marking |
| Core Processor | e200z7 (Power Architecture) |
| Core Size | 32-Bit Dual-Issue |
| Speed | 264 MHz |
| Program Memory Size | 4MB (4M x 8) Flash |
| RAM Size | 256KB ECC SRAM |
| Connectivity Interfaces | CANbus, FlexRay, LINbus, SCI, SPI |
| Peripherals | DMA, eTPU, PWM, WDT, 64-channel ADC |
| Operating Voltage Range | 1.08V to 1.32V (Core), 3.0V to 5.5V (I/O) |
| Operating Temperature Range | -40°C to +125°C (Automotive Junction Grade) |
Typical Applications
- Advanced Engine Control Units (ECUs) and Powertrain Automation
- Automotive Transmission Control Systems and Driving Hydraulics
- Avionics Control Computers and Specialized Military Aerospace Modules
- High-End Electric Vehicle (EV) Inverter Control Systems
- Industrial Robotics, Complex Motion Coordinators, and CNC Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is the SPC5674FMVR3 inventory 100% original and brand new?
A: Yes, all SPC5674FMVR3 microcontrollers we supply are 100% genuine and original NXP parts with complete batch code verification and manufacturer documentation traceability.
Q2: What is the main processing architecture of the SPC5674 series?
A: The SPC5674 family is based on NXP’s highly reliable 32-bit Power Architecture e200 core technology, which is widely utilized across safety-critical automotive powertrain and aerospace control applications.
Q3: How fast can I expect international shipping and dispatch processing?
A: For in-stock components, items are packaged securely and dispatched within 1-2 business days, followed by an expedited worldwide shipment period of 3 to 7 working days via tier-1 couriers.
Q4: Where can I obtain the reference programming manuals and hardware BGA pin footprints?
A: Please file a ticket using our Quick Inquiry form detailing your engineering requirement. Our application engineering team will send over the available user manuals and CAD resource packages within 24 hours.
