SSD202D
SSD202D
| Part Number | SSD202D |
|---|---|
| Manufacturer | SigmaStar Technology |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors / SoCs |
| Description | Highly integrated dual-core ARM Cortex-A7 multimedia System-on-Chip (SoC) with built-in 128MB DDR3 RAM, optimized for smart displays and IoT applications. |
Product Overview
The SSD202D is a highly integrated, high-performance multimedia System-on-Chip (SoC) developed by SigmaStar Technology. Powered by a dual-core ARM Cortex-A7 processor operating up to 1.2 GHz, this powerful processor SiP (System-in-Package) integrates a generous 128MB of internal DDR3 memory, significantly lowering the overall component complexity and spatial footprint of the motherboard design. Featuring built-in hardware H.264/H.265 video decoders, advanced 2D graphics acceleration, an embedded audio codec, and diverse display interfaces like TTL/MIPI, the SSD202D delivers high energy efficiency and exceptionally smooth UI processing capabilities. It stands out as an ideal solution for modern smart home intercoms, commercial building automation terminals, and edge-connected IoT visual display units.
Core Advantages
System-in-Package Design (SiP)
Integrates 128MB DDR3 RAM inside the chip, saving BOM cost and simplifying PCB layout.
Dual-Core ARM Cortex-A7 @ 1.2GHz
High-performance dual-core processor, supports Linux OS for smart display and IoT applications.
Hardware Video Decoder
Built-in H.264/H.265 decoder, supports FHD (1080P) @ 60fps video playback.
Rich Display Interfaces
MIPI-DSI (4-lane) and TTL/RGB up to FHD@60fps, compatible with most smart screens.
Dual Ethernet MAC + One PHY
Two RMII ports for 10/100Mbps Ethernet, ideal for gateway and intercom devices.
Embedded Audio Codec
No external codec needed; supports microphone input and voice output for audio intercom.
Technical Specifications

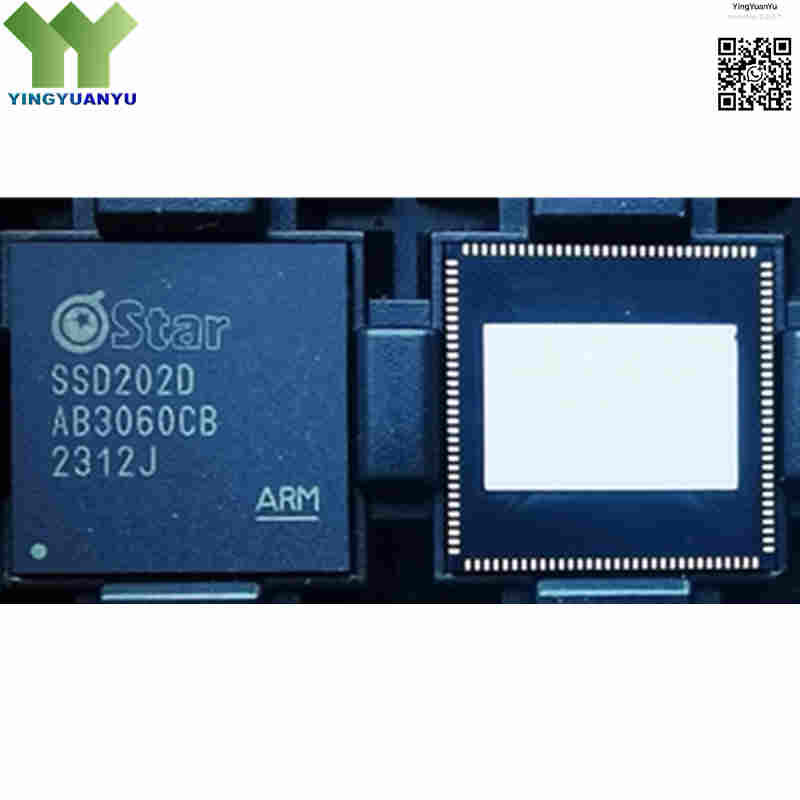

QFN-128 (123-Terminal exposed pad structure)
CPU CoreDual-core ARM Cortex-A7, up to 1.2GHz
| Brand | SigmaStar |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| On-Chip Memory | 128MB DDR3 (SSD202D) |
| Video Decoder | H.264 / H.265, FHD@60fps |
| Display Outputs | MIPI-DSI (4-lane), TTL/RGB up to FHD@60fps |
| Networking Support | Dual RMII ports (10/100Mbps Ethernet), integrated 1× PHY |
| Supply Voltage Range | 0.9V (Core), 1.8V to 3.3V (I/O peripheral rails) |
| Package / Case | QFN-128 Package |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking / Silkscreen | SSD202D Marking |
| Operating Temperature | -20°C to +60°C |
Typical Applications
- Smart Video Door Intercoms and SIP Access Control Panels
- Smart Home Hub Displays and Intelligent Appliance Panels
- Industrial HMI (Human-Machine Interface) Controllers and Panels
- IP Security Cameras with Visual Edge-Display Interfaces
- Commercial Retail Point of Sale (POS) Displays and Digital Signage
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is the SSD202D chip inventory you provide 100% genuine and original?
A: Yes, we provide completely original, factory-new SigmaStar components with full date code tracking and verified batch credentials.
Q2: What is the main difference between SSD201 and SSD202D?
A: SSD201 integrates 64MB DDR2, while SSD202D integrates 128MB DDR3, making SSD202D better for complex GUI and video applications.
Q3: Does the SSD202D processor support the Linux Operating System platform?
A: Yes, fully supports lightweight Linux BSPs with LVGL, Qt, or FlyThing graphics frameworks.
Q4: How can I access reference schematics, SDK, and pinout guides?
A: Submit a Quick Inquiry with your developer info; our team will send documents within 24 hours.
