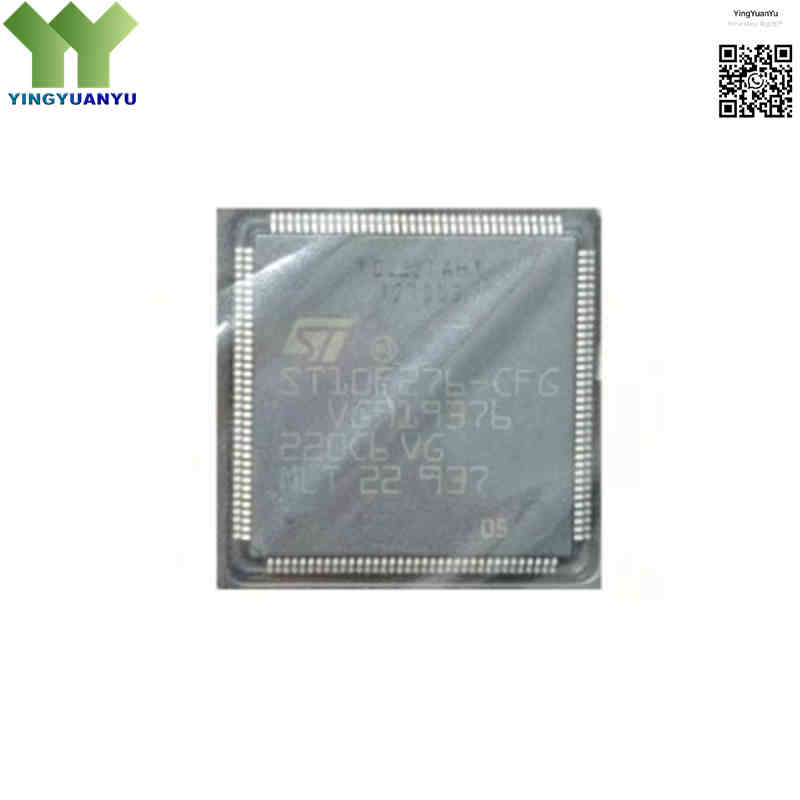

ST10F276-CFG
ST10F276-CFG
| Part Number | ST10F276-CFG |
|---|---|
| Manufacturer | STMicroelectronics |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers (MCU) |
| Description | 16‑Bit High‑Performance CMOS Microcontroller with 832KB Flash, 68KB RAM, Dual CAN 2.0B, MAC Unit, 144‑Pin PQFP Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ST10F276‑CFG is ST’s 16‑bit C166 MCU with MAC DSP unit, running up to 64 MHz. It integrates 832 KB on‑chip Flash and 68 KB RAM, dual CAN2.0B, 24‑channel 10‑bit ADC and rich serial interfaces. Designed for real‑time automotive powertrain and industrial control applications, it supports Read‑While‑Write flash operation for field firmware upgrade.
Core Advantages
16‑bit C166 Core with MAC DSP
64 MHz high‑speed core with single‑cycle MAC accelerator, delivers efficient real‑time control and DSP computation.
Large On‑Chip Memory
832 KB Flash with Read‑While‑Write function plus 68 KB RAM, sufficient for complex firmware and online update.
Dual CAN 2.0B Interfaces
Two CAN controllers with 32 message objects each, stable bus communication for vehicle and industrial systems.
Complete Peripheral Set
24‑channel 10‑bit ADC, CAPCOM PWM timer, USART/SPI/I2C and up to 111 GPIO, meets multi‑purpose control demands.
Key Specifications
| Brand | STMicroelectronics |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 144‑Pin PQFP (28×28 mm) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | ST10F276‑CFG / ST |
| Core Architecture | 16‑Bit ST10 / C166 Core with MAC Unit |
| Maximum CPU Clock Speed | 64 MHz |
| Program Memory Size | 832 KB Flash (512 KB Main + 320 KB Secondary) |
| RAM Size | 68 KB (16 KB System RAM + 2 KB Dual‑Port RAM + 50 KB Extended RAM) |
| A/D Converter | 24‑Channel, 10‑Bit ADC |
| Connectivity / Interfaces | 2× CAN 2.0B, 2× USART, SPI (SSC), I2C |
| I/O Count | 111 General Purpose I/O Lines |
| Operating Voltage Range | 4.5V to 5.5V (5V Core & I/O, not 3.3V device) |
| Operating Temperature Range | -40°C to +85°C (Extended Commercial Grade) |
| Timer / PWM Unit | CAPCOM Capture Compare PWM Timer Unit |
| Flash Feature | Read‑While‑Write Flash Operation Supported |
| CAN Message Objects | 32 objects per CAN controller |
| Oscillator Type | On‑chip 4‑12 MHz main oscillator, 32kHz RTC oscillator |
| Watchdog | Programmable watchdog timer |
Typical Applications
- Automotive Powertrain Control Units, Engine Management Systems (EMS), and Transmission Control Modules
- Industrial Motor Drives, Variable Frequency Inverters, and High‑Precision Motion Controllers
- Commercial Vehicle Control Electronics, Agricultural Machinery, and Heavy Equipment ECUs
- Uninterruptible Power Supplies (UPS), High‑Power Inverters, and Smart Energy Management
- Robotic Controllers, Industrial Automation Fieldbus Gateways, and CNC Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the difference between ST10F276‑CFG and ST10F275‑CEG?
A: ST10F276‑CFG features 832KB Flash / 68KB RAM, packaged in 144‑PQFP, upgraded memory compared with ST10F275‑CEG.
Q2: What core does ST10F276‑CFG adopt?
A: 16‑bit C166 core running up to 64MHz, integrated single‑cycle MAC DSP accelerator.
Q3: What temperature grade for ST10F276‑CFG?
A: Extended commercial grade,‑40℃ ~ +85℃, not automotive‑grade‑40~125℃.
Q4: Can it work with 3.3V power supply?
A: No. It is a 5V‑only device, operating voltage 4.5V‑5.5V, 3.3V domain is not supported.
Q5: Difference among suffix CFG / R / S / Z?
A: ST10F276 is main model. Suffix stands for different packages. CFG = 144‑PQFP. R/S/Z are other package versions, pinout differs, cannot drop‑in replace.
Q6: Can ST10F276‑CFG replace ST10F273?
A: Not direct replacement. ST10F273 lacks 320KB XFLASH, max RAM only 32KB. No internal hardware detection register. Shared‑PCB needs external pull‑up resistor.
Q7: How to get datasheet and bulk quotation?
A: Submit quick inquiry for datasheet, pinout guide, evaluation solution and volume price.
