STL140N6F7
STL140N6F7
| Part Number | STL140N6F7 |
|---|---|
| Manufacturer | STMicroelectronics |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-channel power MOSFET with low on-resistance,60V,140A,2.4mΩ,high current capability, PDFN-8(5×5.8) surface mount package |
Product Overview
The STL140N6F7 is a high-performance N-channel power MOSFET developed by STMicroelectronics. It features extremely low on-resistance, large current handling capacity and superior switching performance, effectively reducing power loss and thermal generation. With robust structure and high reliability, this device is suitable for high-current power circuits. It is widely adopted in DC-DC converters, motor drives, battery systems and industrial power supply applications.
| Key Specifications | |
|---|---|
| Brand | STMicroelectronics |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | PDFN-8(5×5.8) |
| Mounting Type | Surface Mount (SMD) |

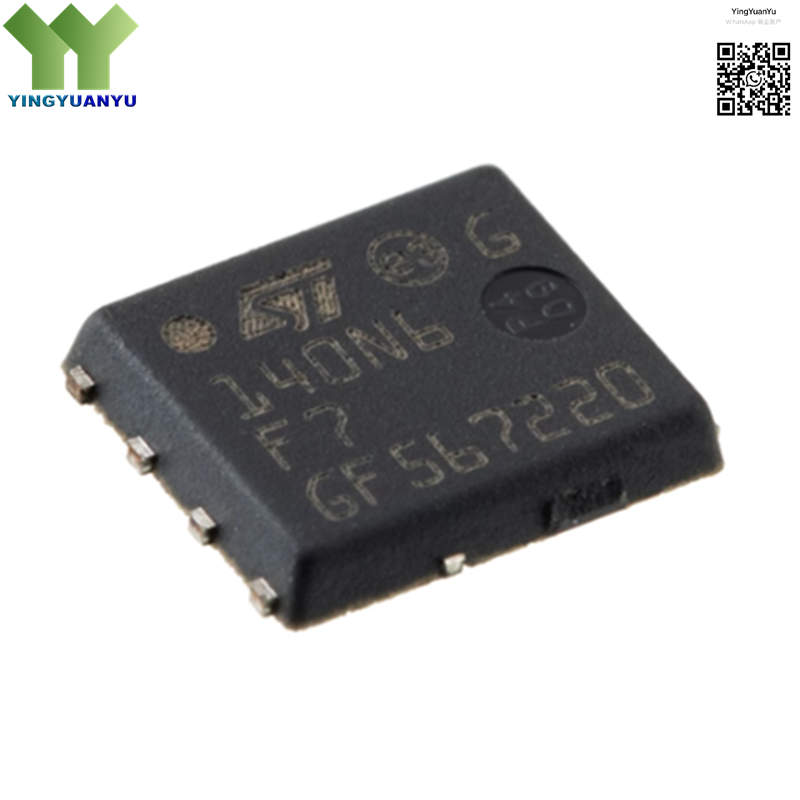

| Surface Marking / Silkscreen | 140N6F7 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Id) | 140 A |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High Current DC-DC Converters
- Motor Drive Control Systems
- Battery Management Units
- Uninterruptible Power Supplies
- Industrial Switching Power Supplies
- Automotive Power Modules
- High Power Load Switching
- General High Current Power Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is STL140N6F7 RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the channel type of this MOSFET?
A: It is an N-channel power MOSFET. - Q: Can I get samples for testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the on resistance of STL140N6F7?
A: The resistance (RDS(on)):2.4mΩ.
- Q: Is STL140N6F7 RoHS compliant?
