TA8007F
TA8007F
| Part Number | TA8007F |
|---|---|
| Manufacturer | Toshiba |
| Category | Active Components > Power Management IC > LDO Linear Regulator with Watchdog Timer |
| Description | 5V Fixed Output Automotive LDO Regulator with Built-in Watchdog Reset, Low Dropout, Max 500mA Output, SOP-16 Surface Mount Package |
Product Overview
The TA8007F is a high-performance fixed output LDO linear regulator manufactured by Toshiba. It features low dropout voltage, low quiescent current and built-in overcurrent and thermal protection circuits, plus integrated watchdog & undervoltage reset function to safeguard MCU against power abnormal crash. It ensures stable output voltage under fluctuating input conditions. With compact surface mount packaging and excellent ripple rejection capability, this IC is easy to integrate into compact PCB designs for steady power supply of sensitive analog and digital circuits, especially automotive ECU control boards.
| Key Specifications | |
|---|---|
| Brand | Toshiba |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOP-16 |
| Mounting Type | Surface Mount (SMD) |

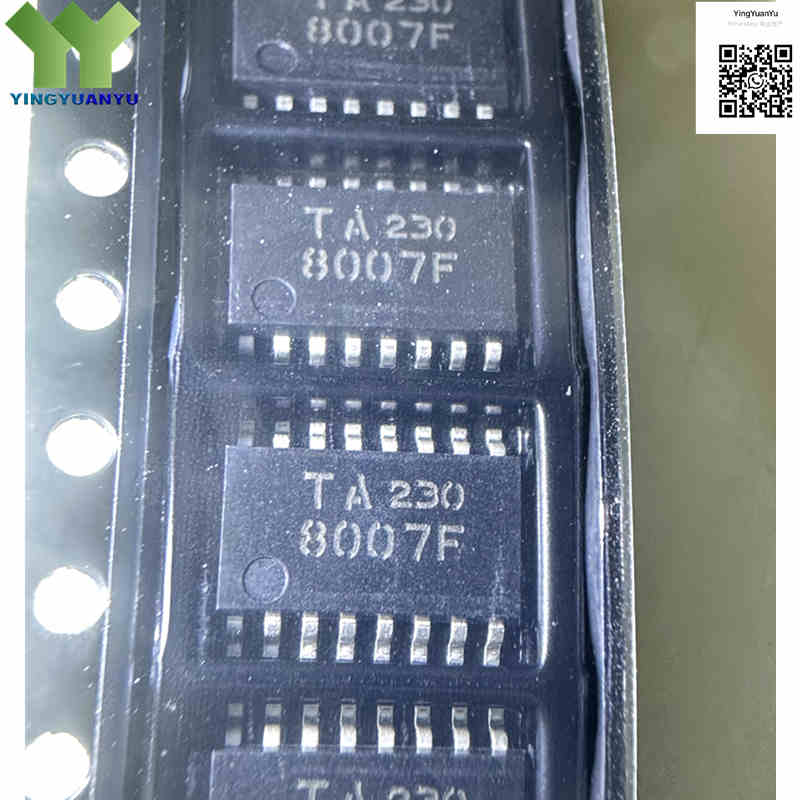

| Surface Marking / Silkscreen | 8007F Marking |
| Output Voltage | Fixed Standard Output |
| Input Voltage Range | 2.5V ~ 12V |
| Output Current | Max 500mA |
| Operating Temperature | -40 to 105°C |
Typical Applications
- Portable Electronic Equipment Power Supply
- IoT Sensor Module Voltage Regulation
- Analog Circuit Stable Power Source
- Consumer Small Home Appliances
- Battery Powered Intelligent Devices
- Instrumentation Control Boards
- Audio Auxiliary Power Circuits
- General Low Current LDO Power Supply
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q1: Is TA8007F RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q2: What is the maximum output current?
A: The maximum output current reaches 500mA. - Q3: Can I get engineering samples for testing?
A: Sample service is available, please submit an inquiry form. - Q4: What is the working temperature range?
A: Operating temperature ranges from -40 to 105°C.
