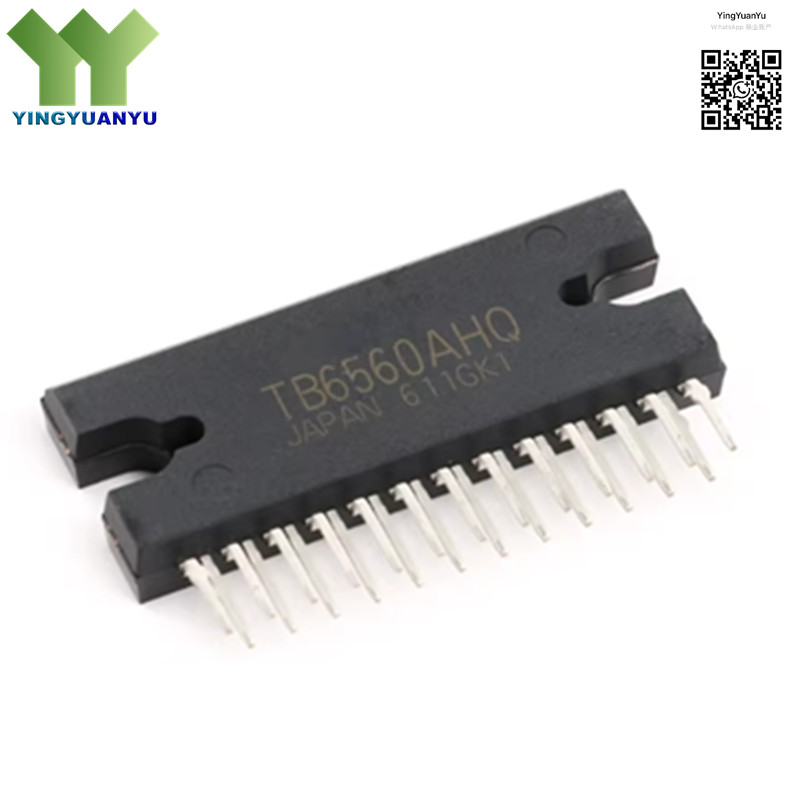

TB6560AHQ
Basic Information
| Part Number | TB6560AHQ |
|---|---|
| Manufacturer | Toshiba Semiconductor |
| Category | PMIC – Motor Drivers, Controllers |
| Description | 2-Phase Bipolar Stepping Motor Driver IC, 40V/3A, PWM Control, HQFP-64P Package |
Product Overview
The TB6560AHQ is a high-performance bipolar 2-phase stepping motor driver integrated circuit designed for high-precision and high-efficiency motion control applications. It incorporates advanced PWM constant current control technology to deliver smooth, low-vibration, and low-noise motor operation with excellent positioning accuracy. The device supports a wide operating voltage range up to 40V and a maximum output current of 3A, making it suitable for driving a wide range of bipolar stepping motors. Comprehensive built-in protection features including over-temperature protection, over-current protection, under-voltage lockout, and thermal shutdown ensure reliable and safe operation in harsh industrial environments. Housed in a compact HQFP-64P package with superior thermal dissipation, the TB6560AHQ enables high-density PCB design and long-term stable performance.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (Lead-Free, Halogen-Free) |
| EDA/CAD Models | Available (Symbol, Footprint, 3D STEP, Schematic) |
| Warranty | 3 Years Standard Warranty |
| Brand | Toshiba |
| Motor Type | 2-Phase Bipolar Stepping Motor |
| Supply Voltage Range | 10V to 40V |
| Output Current | Up to 3A (Peak) |
| Drive Control | PWM Constant Current Control |
| Microstep Resolution | Full, Half, 1/4, 1/8, 1/16, 1/32 Step |
| Operating Temperature Range | -20°C to +85°C |
| Package Type | HQFP-64P |
| Protection Features | OTP, OCP, UVLO, Thermal Shutdown |
Typical Applications
- 3D Printers and CNC Milling Machines
- Industrial Automation and Motion Control Systems
- Office Automation Equipment (Printers, Plotters)
- Security Camera Pan/Tilt/Zoom Systems
- Precision Positioning Stages and Robots
- Medical Diagnostic and Laboratory Equipment
- Textile Machinery and Packaging Equipment
- Automated Guided Vehicles (AGVs)
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
