TB6612FNG
TB6612FNG
| Part Number | TB6612FNG |
|---|---|
| Manufacturer | Toshiba Electronic Devices & Storage Corporation |
| Category | Integrated Circuits (ICs) > Power Management > Motor Drivers |

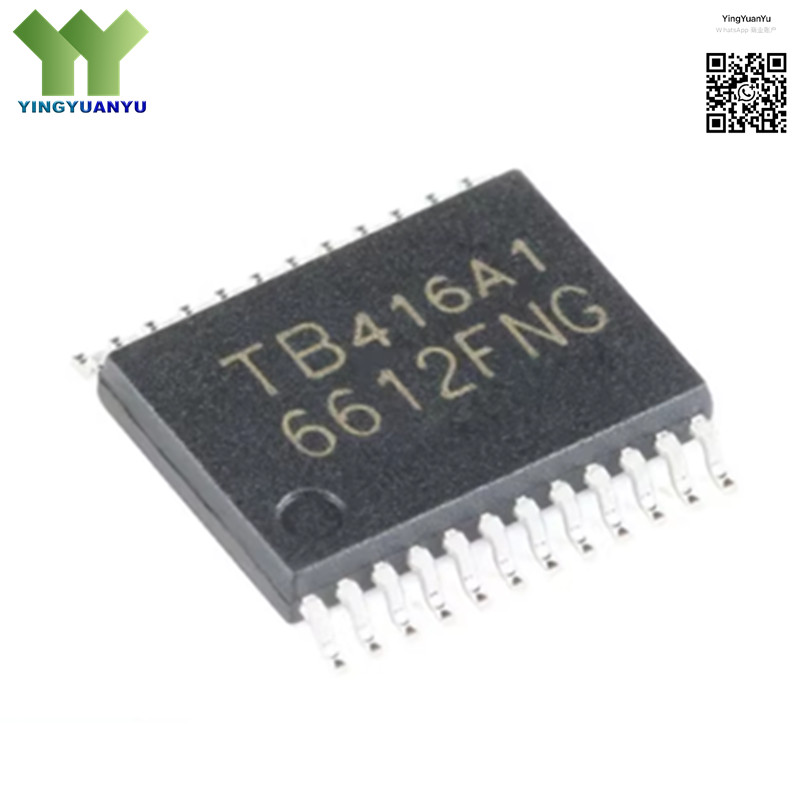

| Description | DUAL DC MOTOR DRIVER IC, 1.2A CONTINUOUS, 3.2V TO 15V, -20 TO 85 DEG C, SOP-24 |
Product Overview
The TB6612FNG is a compact, high-efficiency dual DC motor driver IC from Toshiba, designed for driving two DC motors or one stepper motor in low-voltage, low-to-medium current applications. This H-bridge motor driver offers forward, reverse, brake, and standby operating modes, delivering up to 1.2A continuous output current per channel with low on-resistance for minimal power loss. Operating over a wide voltage range of 3.2V to 15V, it features built-in thermal shutdown, over-current protection, and under-voltage lockout for reliable and safe operation. With TTL/CMOS compatible control inputs and a small SOP-24 surface-mount package, the TB6612FNG is widely used in robotics, consumer electronics, and small-scale mechatronic systems requiring precise motor control.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | Toshiba |
| Motor Type | Dual DC Motors / Single 2-Phase Stepper Motor |
| Output Current | 1.2A (Continuous), 3.2A (Peak) |
| Supply Voltage | 3.2V to 15V |
| Control Logic | TTL / CMOS Compatible (2.0V ~ 5.5V) |
| Operating Temperature | -20°C to +85°C |
| Package Type | SOP-24 (Small Outline Package) |
| Protection Features | Thermal Shutdown, Over-Current, Under-Voltage Lockout |
| Control Modes | Forward, Reverse, Brake, Standby |
Typical Applications
- Small Robots, RC Cars, and Robotic Platforms
- Consumer Electronics (Toys, Cameras, Printers)
- Small DC and Stepper Motor Control Systems
- DIY Electronics and Maker Projects
- Camera and Optical Equipment Motion Control
- Portable Mechatronic Devices
- Smart Home Automation Modules
- Educational Robotics Kits
