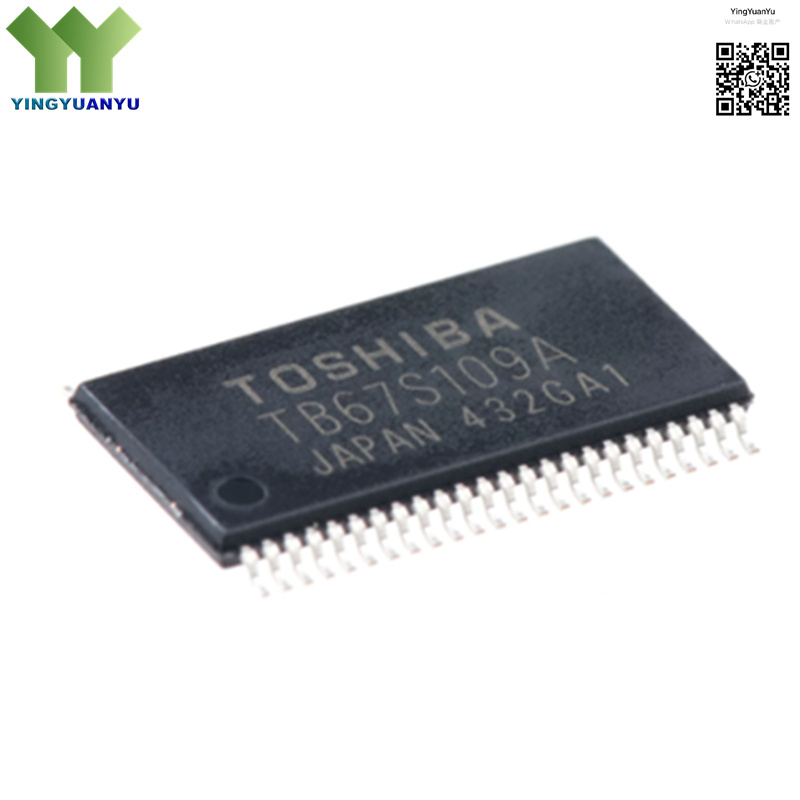

TB67S109AFNG
TB67S109AFNG
| Part Number | TB67S109AFNG |
|---|---|
| Manufacturer | Toshiba Electronic Devices & Storage |
| Category | Power Management ICs; Stepper Motor Driver IC |
| Description | Bipolar Stepping Motor Driver IC,4.75V to 5.25V Maximum Voltage, 3A Output Current, HTSSOP-48-6.1mm Package |
Product Overview
The TB67S109AFNG is a high-performance clock-input controlled bipolar stepper motor driver developed by Toshiba. Built with advanced BiCD semiconductor technology, this integrated driver supports high-precision full-step, half-step, and micro-step motor operation. It features a wide operating voltage range, high continuous output current, customizable chopping frequency, and built-in voltage regulator for stable internal operation. Equipped with comprehensive protection functions including overcurrent, thermal shutdown, and overvoltage protection, this compact HTSSOP packaged IC delivers reliable, low-noise, and high-efficiency motion control for industrial, office automation, and precision equipment applications.
| Key Specifications | |
|---|---|
| Brand | Toshiba |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | HTSSOP-48-EP-6.1mm |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | TB67S109A |
| Motor Supply Voltage (Vm) | 10V to 47V |
| Logic Supply Voltage (Vcc) | 4.75V ~ 5.25V |
| Continuous Output Current | 3 A |
| Operating Temperature | -20°C to +85°C |
Typical Applications
- Industrial Stepper Motor Control Systems
- Office Automation Equipment
- 3D Printer Motion Control Modules
- Smart Surveillance PTZ Devices
- Automatic Instrumentation & Testing Equipment
- Medical Precision Motion Devices
- Smart Home Automated Machinery
- Robotics and Automated Control Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
