TCA9406DCUR
TCA9406DCUR
| Part Number | TCA9406DCUR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Interface ICs; Voltage Level Translator |
| Description | 4-bit bidirectional I2C and SMBus voltage level translator,data rate 24Mbps,1MHz, VSSOP-8-0.5mm surface mount package |
Product Overview
The TCA9406DCUR is a high-performance 4-bit bidirectional voltage level translator designed by Texas Instruments. It is specially optimized for I2C and SMBus signal conversion, supporting seamless communication between circuits with different voltage domains. Featuring low power consumption, high noise immunity and simple circuit design, this compact chip ensures stable signal transmission. It is widely used for level shifting in industrial control, consumer electronics and IoT devices.
| Key Specifications | |
|---|---|
| Brand | Texas Instruments |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | VSSOP-8-0.5mm |
| Mounting Type | Surface Mount (SMD) |

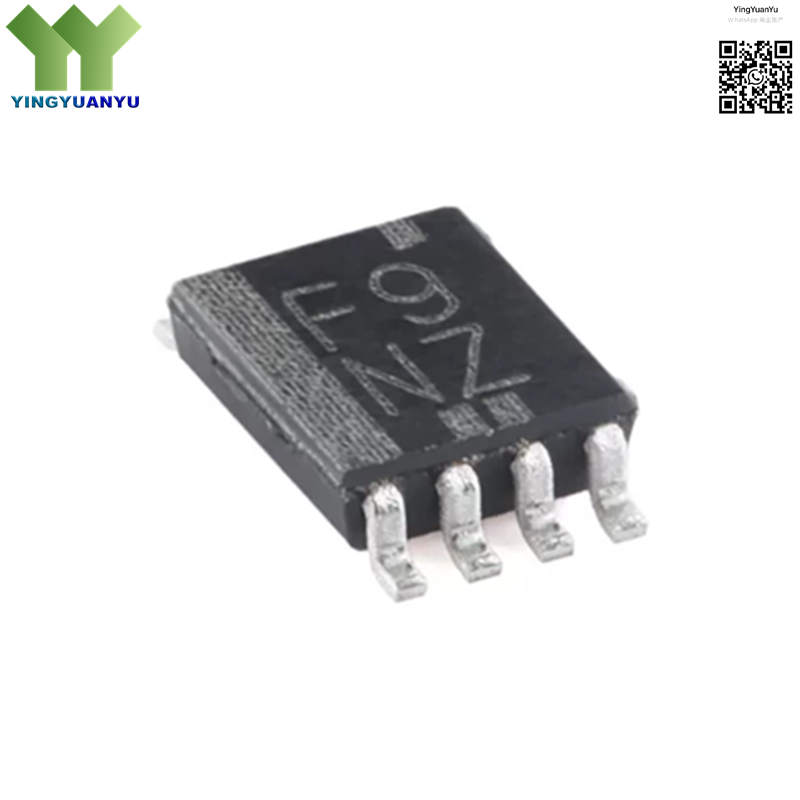

| Surface Marking / Silkscreen | F9NZ Marking |
| Channel Number | 4 Bidirectional Channels |
| Supported Bus | I2C, SMBus |
| Supply Voltage Range | 1.65V~3.6V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- I2C Bus Voltage Level Conversion
- SMBus Signal Interface Circuits
- Industrial Control Modules
- Smart Sensor Nodes
- Consumer Electronic Products
- IoT and Wearable Devices
- Communication Interface Boards
- Mixed Voltage Domain Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
