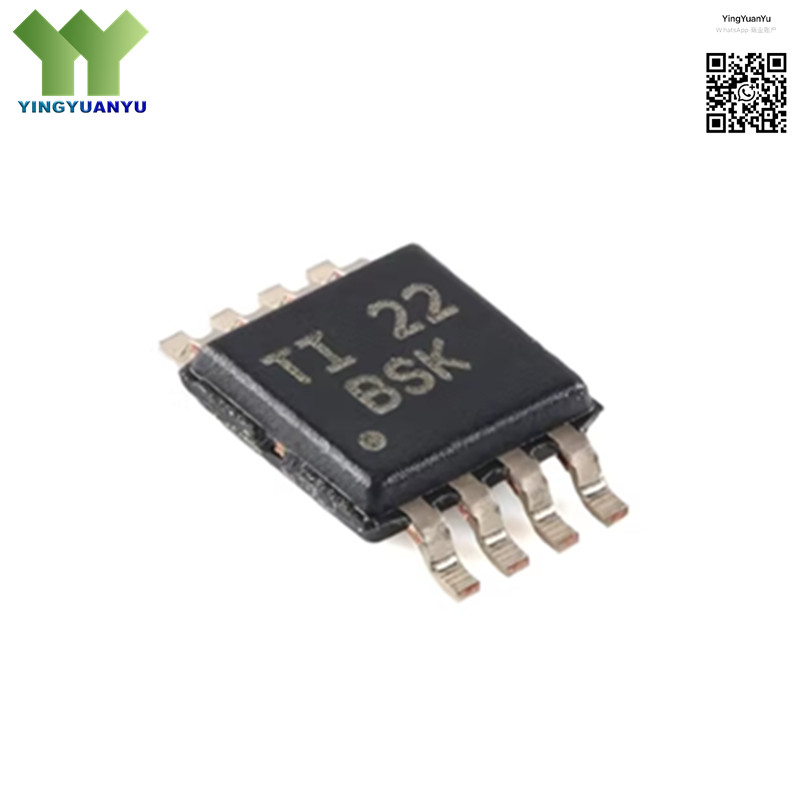

TCA9517ADGKR
TCA9517ADGKR
| Part Number | TCA9517ADGKR |
|---|---|
| Manufacturer | Texas Instruments Incorporated |
| Category | Integrated Circuits (ICs) > Interface > I2C/SMBus Repeaters, Buffers & Extenders |
| Description | 1-CHANNEL I2C/SMBUS SIGNAL REPEATER, 1.65V TO 5.5V, 400KHZ, -40 TO 85 DEG C, 8-VSSOP |
Product Overview
The TCA9517ADGKR is a single-channel I2C and SMBus signal repeater from Texas Instruments, designed to extend bus length, boost signal integrity, and enable mixed-voltage communication in embedded systems. This device buffers bidirectional I2C/SMBus signals, allowing isolation between low-voltage logic (1.65V to 3.3V) and higher-voltage bus lines (up to 5.5V), while supporting clock frequencies up to 400kHz for fast-mode operation. With automatic direction sensing and no external control signals required, the TCA9517ADGKR simplifies system design and improves noise immunity in long bus configurations. It features low standby current, over-temperature protection, and lock-up prevention for reliable operation. Packaged in a compact 8-VSSOP form factor and operating across -40°C to +85°C, this repeater is ideal for industrial, automotive, and consumer electronics requiring robust I2C/SMBus signal extension and voltage translation.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | Texas Instruments (TI) |
| Channels | 1 Channel (I2C/SMBus) |
| Supply Voltage | 1.65V to 5.5V |
| Clock Frequency | Up to 400 kHz (Fast Mode) |
| Voltage Translation | 1.65V–3.3V / 2.3V–5.5V |
| Operating Temperature | -40°C to +85°C |
| Package Type | 8-VSSOP (Very Very Thin Small Outline Package) |
| Standby Current | 1.5 µA (Max) |
| Features | Auto Direction Sensing, Lock-Up Prevention, Thermal Shutdown |
Typical Applications
- I2C/SMBus Bus Length Extension & Signal Buffering
- Mixed-Voltage System Level Shifting (1.8V, 3.3V, 5V)
- Industrial Control & PLC Systems
- Automotive Infotainment & Sensor Networks
- Consumer Electronics & Smart Home Devices
- IoT Modules & Multi-Device I2C Communication
- Test & Measurement Equipment
- High-Capacitance I2C Bus Load Support
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
