TCPT1300X01
TCPT1300X01
| Part Number | TCPT1300X01 |
|---|---|
| Manufacturer | Vishay Semiconductors |
| Category | Optoelectronic Sensors; Photointerrupters – Slot Type – Transistor Output |

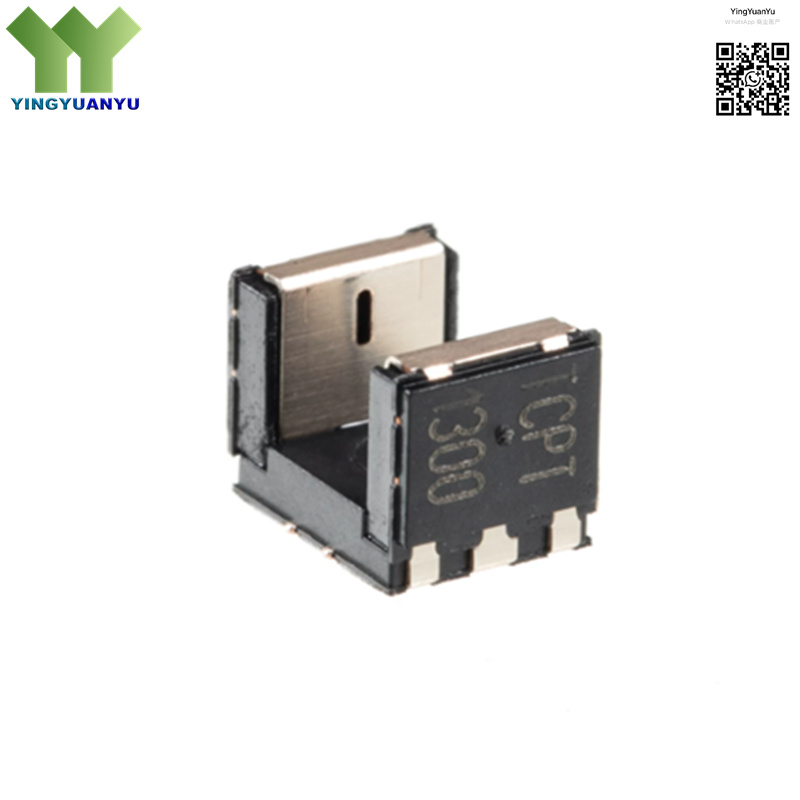

| Description | Transmissive Optical Slotted Interrupter, 3mm Slot Width, 940nm Infrared Emitter, Phototransistor Output, Through Hole Package |
Product Overview
The TCPT1300X01 is a high-reliability transmissive optical slotted interrupter from Vishay, consisting of an infrared LED emitter and a phototransistor detector integrated in a single through-hole package. It provides electrical isolation between input and output, fast response time, and stable sensing performance for position detection, motion sensing, and switching applications. The device features a 3mm slot width, compact structure, and excellent anti-interference ability, widely used in industrial control, consumer electronics, and office automation equipment.
| Key Specifications | |
|---|---|
| Brand | Vishay Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-6P Package |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | TCPT1300 |
| Slot Width | 3 mm |
| Emitter Wavelength | 940 nm (Infrared) |
| Output Type | Phototransistor |
| Operating Temperature | -25°C to +85°C |
Typical Applications
- Position and Limit Sensing
- Paper and Tape Detection in Printers
- Encoder and Motion Detection Systems
- Consumer Electronics and Home Appliances
- Office Automation Equipment
- Industrial Control and Robotics
- Non-Contact Switching and Sensing
- Automated Assembly and Test Equipment
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
