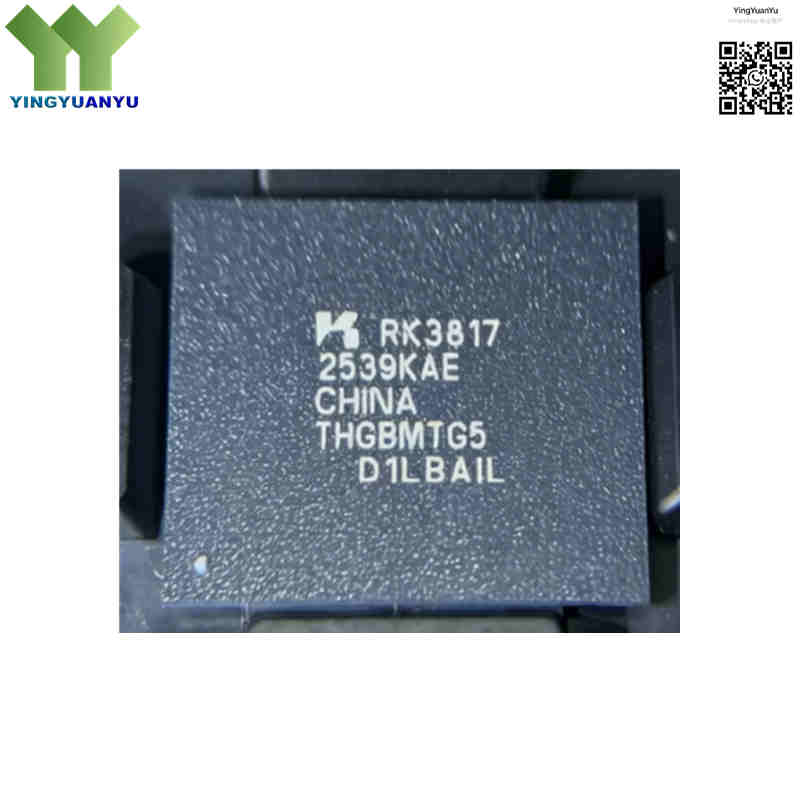

THGBMTG5D1LBAIL
THGBMTG5D1LBAIL
| Part Number | THGBMTG5D1LBAIL |
|---|---|
| Manufacturer | Kioxia (formerly Toshiba Memory) |
| Category | Integrated Circuits (ICs) > Memory > eMMC (Embedded Multi-Media Card) |
| Description | 4GB eMMC 5.0 High-Performance Embedded Flash Memory, 153-FBGA Package, Commercial Industrial Temperature (-25℃ ~ +85℃). |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
THGBMTG5D1LBAIL is a 4GB integrated eMMC storage IC from Kioxia. It integrates NAND flash and controller with built-in wear leveling, bad block management and hardware ECC. Complying with JEDEC eMMC 5.0, it supports HS200/HS400 high-speed transmission, works stably from -25°C to +85°C, and adopts compact 153-WBGA package for embedded equipment and industrial instruments.
Core Advantages
Integrated Flash Controller
All storage management runs on hardware, reducing main chip load and development difficulty.
eMMC 5.0 Standard Compliance
HS400 high bandwidth shortens boot time and improves embedded system running smoothness.
Wide Industrial Temperature Range
Stable performance under -25°C ~ +85°C for industrial and consumer embedded hardware.
Compact 153-WBGA Package
11.5mm ×13.0mm ×0.8mm small size saves PCB space for slim dense circuit design.
Key Specifications
| Brand | Kioxia / Toshiba |
|---|---|
| RoHS Status | RoHS3 Compliant / Lead-Free (Pb-Free) |
| Moisture Sensitivity Level | MSL 3 (168 Hours Floor Life) |
| EDA/CAD Model | 153-ball FBGA schematic symbols and PCB landing patterns are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 153-WBGA (11.5mm × 13.0mm × 0.8mm) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | THGBMTG5D1LBAIL Marking |
| Storage Capacity | 4 GB (32 Gbit Raw NAND Density) |
| eMMC Standard Version | eMMC 5.0 (JEDEC standard compliant) |
| Sequential Read Speed | 152MB/S |
| Sequential Write Speed | 75MB/S |
| Bus Width Support | 1-bit, 4-bit, or 8-bit configurable data bus |
| Interface Modes | HS200 / HS400 high-speed transfer interfaces |
| Core Voltage (VCC) | 2.7V to 3.6V (Flash Array Supply) |
| I/O Interface Voltage (VCCQ) | 1.70V to 1.95V / 2.70V to 3.60V (Dual Voltage Support) |
| Operating Temperature Range | -25°C to +85°C (Standard Commercial Industrial Grade) |
| Built-in Hardware Functions | Hardware Reset, Automatic Bad Block Management, Hardware ECC, Power Loss Protection |
Typical Applications
- Embedded Operating System (OS) hosting for Linux, Android, or real-time OS (RTOS) in industrial computing
- Industrial PLC automation, human-machine interface (HMI) panels, and smart factory monitors
- Automotive infotainment gateways, telematics control units, and navigation dashboards
- Networking hardware including routers, secure gateways, and smart optical fiber switches
- Smart energy grid meters, dataloggers, and remote telemetry units (RTUs)
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheets, sample requests, stock & bulk price inquiries, submit Quick Inquiry, we reply within 24 hours.
Frequently Asked Questions
Q1: Are Kioxia and Toshiba Memory the same manufacturer?
A1: Yes. Toshiba Memory rebranded to Kioxia in 2019. Parts with Toshiba/Kioxia marks share identical specs and production standards.
Q2: Can this eMMC chip run complete operating systems?
A2: Yes. The 4GB storage supports Linux, Win Embedded, Android and RTOS for embedded systems.
Q3: What advantages does eMMC have over discrete NAND Flash?
A3: It integrates built-in controller to handle ECC, wear leveling and bad block management, reducing host CPU burden and development cycle.
Q4: Will sudden power loss destroy stored data?
A4: Built-in power failure protection avoids data corruption during unexpected power off, stable for industrial use.
Q5: What operating temperature range does this chip support?
A5: Working temperature: -25℃ ~ +85℃, fits industrial, commercial embedded equipment.
Q6: Is this part in stock? What is the MOQ?
A6: Spot stock available, mixed batch orders are supported, contact us for bulk discount.
Q7: Can you provide free samples for testing?
A7: Sample supply is available, you can submit sample demand via our inquiry form.
Q8: What interface modes does THGBMTG5D1LBAIL support?
A8: Compliant with eMMC 5.0 standard, supports HS200 and HS400 high-speed transmission modes.
