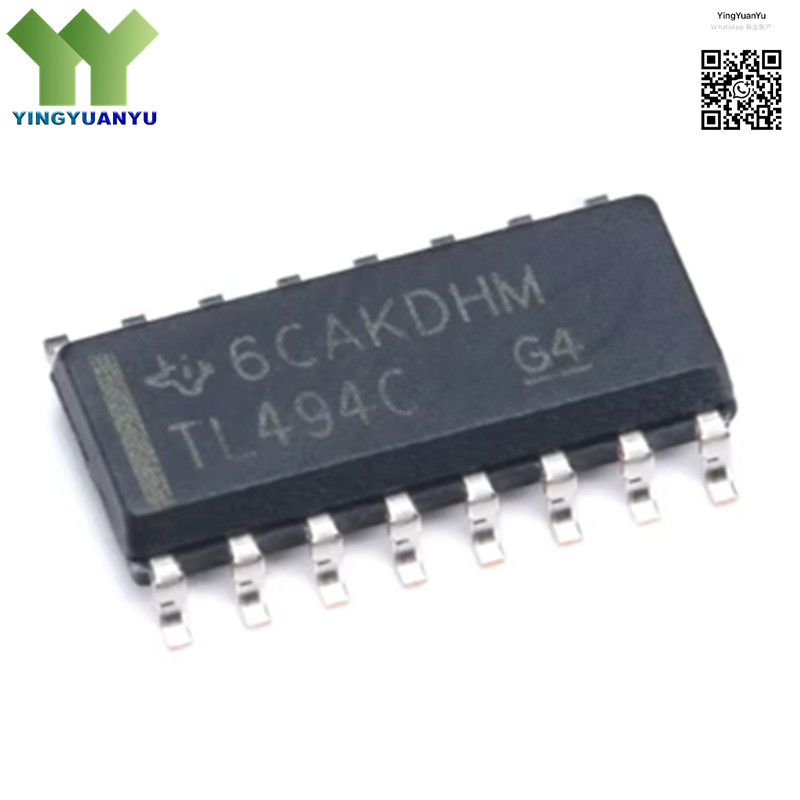

TL494CDR
Basic Information
| Part Number | TL494CDR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | PMIC – Voltage Mode PWM Controllers |
| Description | Fixed Frequency PWM Controller, 40V Input, Dual Output, 300kHz Switching Frequency, SOIC-16 Package |
Product Overview
The TL494CDR is a versatile fixed-frequency pulse width modulation (PWM) controller designed for switched-mode power supply applications including buck, boost, push-pull, half-bridge, and full-bridge topologies. It integrates all essential functions required for a PWM control circuit, featuring a complete on-chip oscillator, error amplifier, dead-time control, pulse-steering flip-flop, and 5V precision reference voltage source. This device supports dual push-pull output configurations with adjustable duty cycle up to 97%, enabling efficient power regulation in a wide range of power conversion systems. With a wide input voltage range up to 40V and excellent temperature stability, the TL494CDR delivers reliable performance in industrial, consumer, and automotive power management designs, packaged in a compact SOIC-16 surface-mount form factor for high-density PCB integration.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (Lead-Free, Halogen-Free) |
| EDA/CAD Models | Available (Symbol, Footprint, 3D STEP, Schematic) |
| Warranty | 3 Years Standard Warranty |
| Brand | Texas Instruments (TI) |
| Supply Voltage (VCC) | 7V to 40V |
| Switching Frequency | 1kHz to 300kHz (Adjustable) |
| Reference Voltage | 5.0V ±1% Precision Reference |
| Output Current | 500mA (Total Sink/Source) |
| Duty Cycle Range | 0% to 97% |
| Operating Temperature Range | 0°C to +70°C |
| Package Type | SOIC-16 (150mil) |
| Topology Support | Buck, Boost, Push-Pull, Half-Bridge, Full-Bridge |
Typical Applications
- Switch-mode power supplies (SMPS)
- DC-DC converters and inverters
- Uninterruptible power supplies (UPS)
- Industrial power management systems
- Consumer electronics power adapters
- Automotive battery charging systems
- LED lighting drivers
- Server and telecom power supplies
