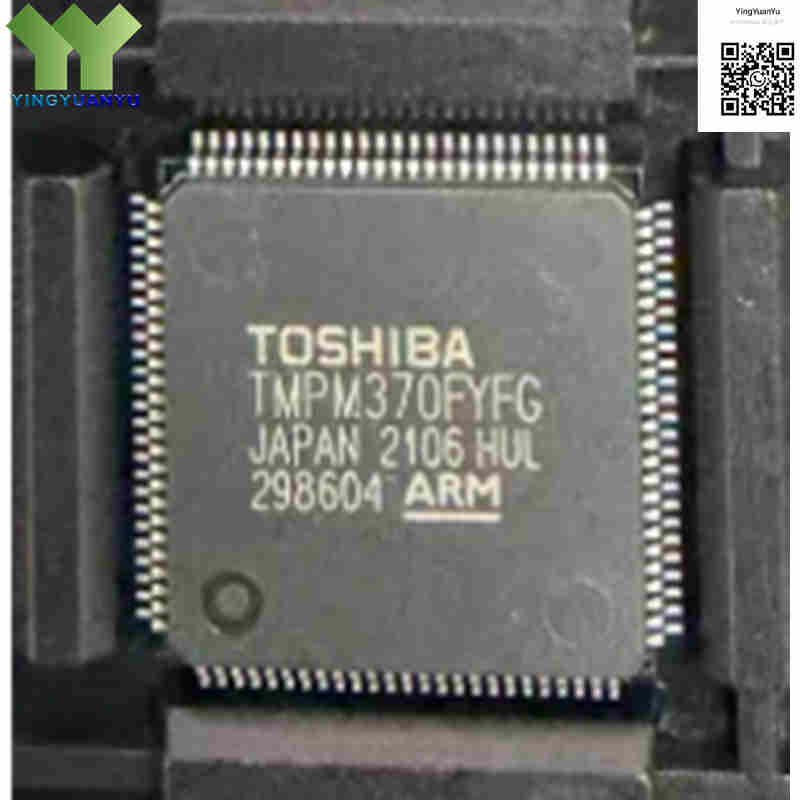

TMPM370FYFG
TMPM370FYFG
| Part Number | TMPM370FYFG |
| Manufacturer | Toshiba |
| Category | Microcontroller & MCU > 32-bit RISC Microcontroller |
| Description | High-performance 32-bit ARM Cortex-M3 MCU with rich peripheral interfaces, designed for industrial control, home appliances and embedded system development,LQFP-100(14x14mm) Package |
Product Overview
The TMPM370FYFG is a high-reliability 32-bit microcontroller launched by Toshiba, built on advanced RISC architecture to deliver powerful computing performance and stable operating capability. This integrated MCU embeds ample on-chip flash memory and RAM, together with abundant peripheral modules including communication interfaces, timers, ADC and GPIO ports, which can meet the demands of various embedded control tasks without extra auxiliary chips. Optimized for low power consumption and strong anti-interference performance, it works steadily in complex industrial and household environments. The compact surface mount package supports automated SMT assembly, making it widely applicable in intelligent equipment, motor control systems, household appliances and industrial embedded control projects.
Core Advantages
- Excellent Cost Performance: Delivers powerful 80MHz computing capability at a competitive price point, suitable for mass production projects.
- Comprehensive Peripheral Resources: Integrates ADC, UART, SPI, I2C, timers and GPIO ports to simplify peripheral circuit design and shorten development cycles.
- High Reliability: Outstanding EMC performance and wide operating temperature range ensure long-term stable operation under harsh working conditions.
- Low-Power Design: Built-in multiple low-power management modes effectively reduce overall system power consumption for battery-powered applications.
- Complete Development Support: Provides full datasheets, development tools and technical documents to accelerate program debugging and secondary development.
Key Specifications
| Brand | Toshiba |
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | LQFP-100(14x14mm) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | TMPM370FYFG Marking |
| Core Architecture | ARM Cortex-M3 (32-bit RISC) |
| Maximum Operating Frequency | 80 MHz |
| Flash Memory | 256 KB |
| RAM | 10 KB |
| ADC Resolution | 12-bit |
| ADC Channels | Up to 16 Channels |
| Communication Interfaces | UART, SPI, I2C |
| GPIO Pins | Up to 80 GPIO Ports |
| Supply Voltage | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Low-Power Modes | Multiple Power-Saving Modes Supported |
Typical Applications
- Industrial Control Equipment
- Home Appliances (White Goods, Small Kitchen Appliances)
- Motor Control Systems (BLDC, DC Motor Drivers)
- Intelligent Devices & IoT Nodes
- Embedded System Development & Prototyping
- Building Automation Systems
- Power Management & Monitoring Modules
- Consumer Electronics Control Units
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
- Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q: What core does the TMPM370FYFG use?
A: It is built on the ARM Cortex-M3 32-bit RISC core with a maximum operating frequency of 80MHz.
Q: What is the memory configuration of this MCU?
A: It features 256 KB on-chip flash memory and 10 KB RAM for program and data storage.
Q: What is the operating temperature range?
A: The TMPM370FYFG operates reliably from -40°C to 85°C, suitable for industrial environments.
Q: What package does the TMPM370FYFG come in?
A: It is available in a 100-pin LQFP-100(14x14mm) surface mount package.
Q: Is the TMPM370FYFG RoHS compliant?
A: Yes, the device is fully RoHS compliant, meeting environmental standards for lead-free manufacturing.
Q: What is the supply voltage range for this MCU?
A: The TMPM370FYFG supports a supply voltage range of 1.8V to 3.6V.
