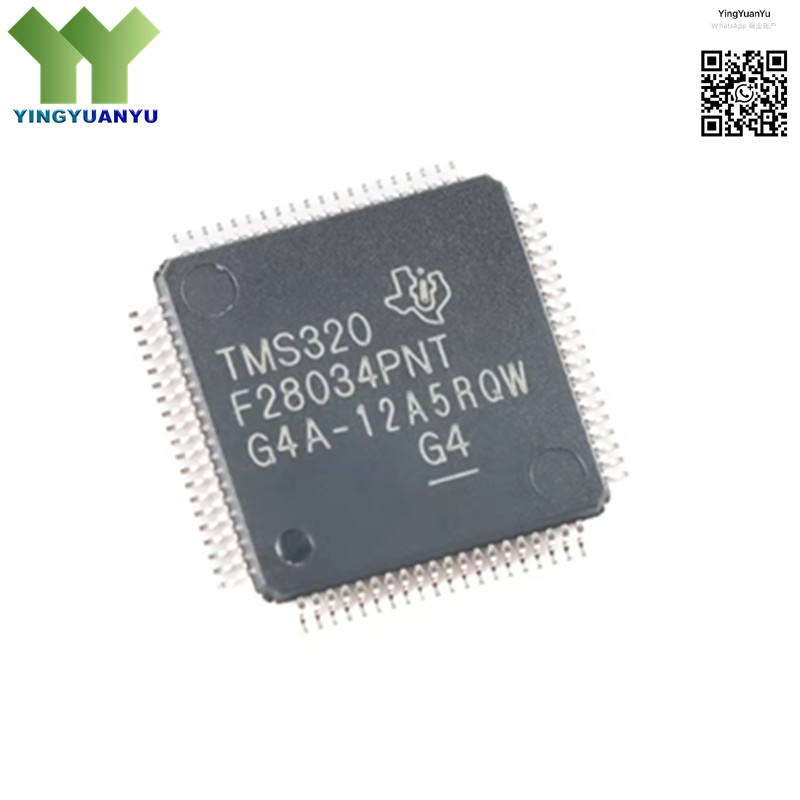

TMS320F28034PNT
| Part Number | TMS320F28034PNT |
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) – Embedded – Microcontrollers |
| Description | 32-Bit C2000 Digital Signal Controller, 60MHz, Flash, LQFP-80 |
Product Overview
The TMS320F28034PNT is a high-performance 32-bit C2000 digital signal controller (DSC) designed for real-time control applications. It combines the processing power of a DSP with the simplicity of a microcontroller, featuring a 60MHz C28x core, on-chip flash memory, RAM, and advanced peripheral interfaces ideal for motor control, power conversion, and industrial automation. The device offers high precision, fast response, and integrated control peripherals, enabling efficient implementation of complex control algorithms. Housed in a standard LQFP-80 package, it delivers reliable performance in harsh industrial environments.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD | TMS320F28034PNT PCB Footprint & Symbol Available |
| Warranty | 1 Year Manufacturer Warranty |
| Brand | Texas Instruments |
| Core | 32-Bit C28x DSP |
| Clock Speed | 60MHz |
| Memory | 128KB Flash, 20KB RAM |
| Package | LQFP-80 |
| Peripherals | PWM, ADC, SPI, SCI, I2C, CAN |
| Operating Temperature | -40°C ~ 125°C |
Typical Applications
- Industrial Motor Drive & Control Systems
- Digital Power Supplies & Inverters
- Solar Inverters & Energy Storage Systems
- Automotive Motor Control Units
- HVAC & Industrial Automation
- Uninterruptible Power Supplies (UPS)
- Electric Vehicle (EV) Powertrain Controls
- High-Performance Real-Time Control Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
