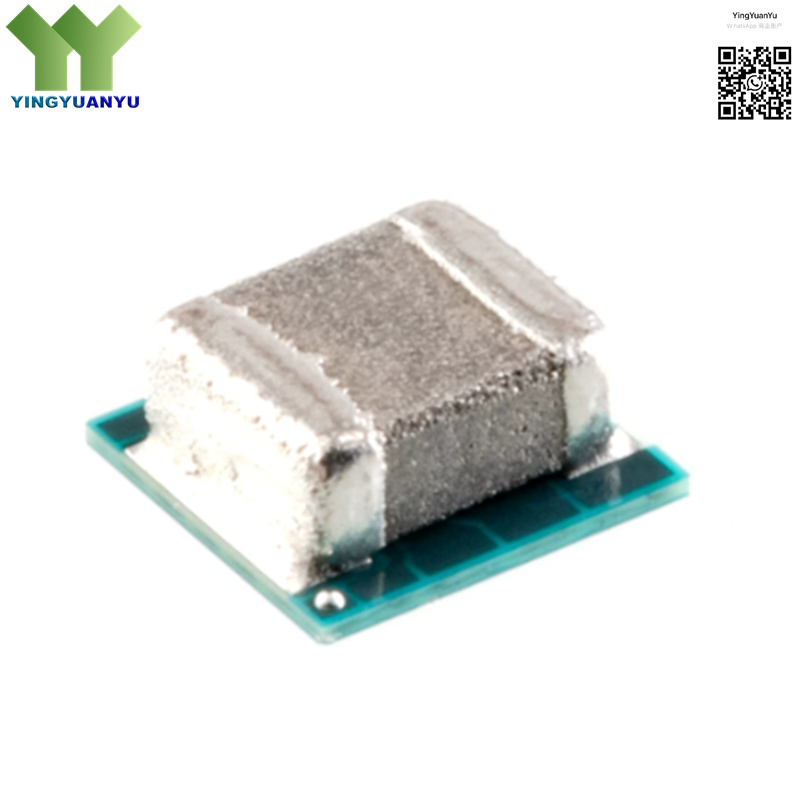

TPS82085SILR
TPS82085SILR
| Part Number | TPS82085SILR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Power Management ICs; Step-Down MicroModule Regulator |
| Description | 2.5V~6V Fixed Output, 3A Ultra-Small Step-Down MicroModule, Integrated Inductor, USIP-8 Package |
Product Overview
The TPS82085SILR is a high-efficiency, fully integrated step-down MicroModule regulator from Texas Instruments, designed for compact portable and battery-powered applications. It integrates a DC-DC converter, power MOSFETs, compensation circuitry, and an inductor into an ultra-small package, minimizing external components and PCB space. The device delivers high efficiency across light to full load conditions, low quiescent current, and excellent line/load regulation for stable power delivery. With a tiny surface-mount package, it is ideal for space-constrained consumer electronics and IoT systems.
| Key Specifications | |
|---|---|
| Brand | Texas Instruments |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | USIP-8 |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | TPS82085SILR |
| Output Voltage | 3.3V Fixed |
| Output Current | 2A Continuous |
| Input Voltage Range | 2.5V~6V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Smartphones, Tablets & Wearable Devices
- Portable Battery-Powered Electronics
- IoT Sensor Nodes & Wireless Modules
- FPGA, MCU & DSP Core Power Supplies
- Industrial Handheld Test Equipment
- Camera & Consumer Electronic Modules
- Low-Power Embedded Systems
- Space-Constrained Power Designs
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
