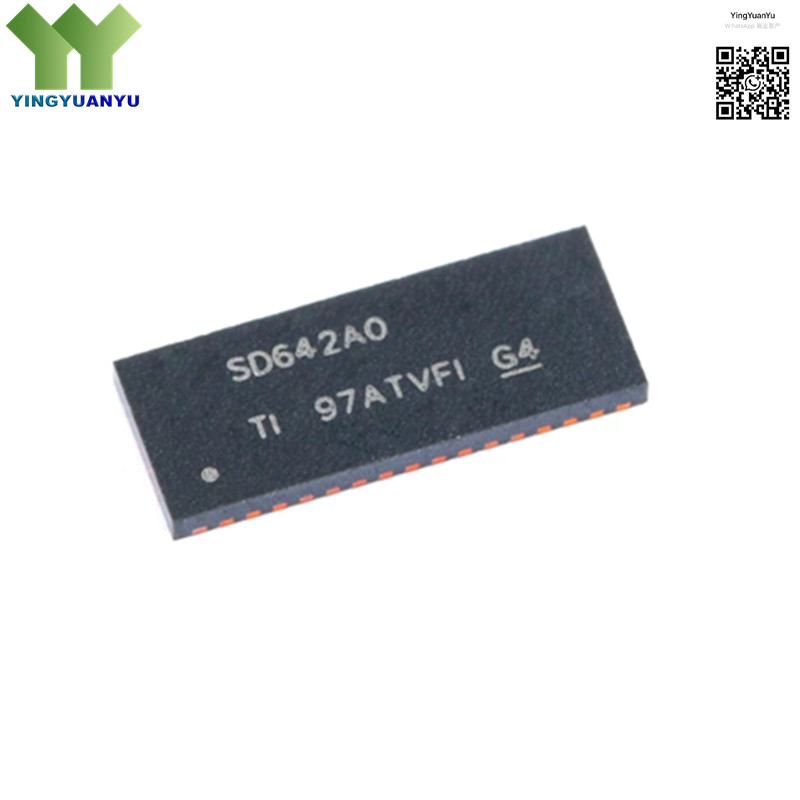

TS3DV642A0RUAR
TS3DV642A0RUAR
| Part Number | TS3DV642A0RUAR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | High-Speed Signal Switches; Differential 1:2 MUX/DEMUX Switch |
| Description | 12Gbps High-Speed Differential 1:2 MUX/DEMUX Switch, 1.8V, Bidirectional, WQFN-42 Package |
Product Overview
The TS3DV642A0RUAR is a high-bandwidth, low-power bidirectional differential 1:2 multiplexer/demultiplexer switch optimized for high-speed signal routing applications. It supports data rates up to 12Gbps, making it ideal for high-performance video, data communication, and serial link systems. The device features low on-capacitance, low insertion loss, and excellent return loss characteristics across wide frequency ranges, with a 1.8V low-voltage control interface for power-efficient operation. Housed in a compact WQFN-42 surface-mount package, it enables reliable high-speed signal switching in space-constrained industrial and consumer electronic designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Switch Type | Differential 4:1 MUX/DEMUX |
| Data Rate | Up to 12 Gbps |
| Control Voltage | 1.8V Single Supply |
| Package Type | WQFN-42 (Surface Mount) |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- High-Speed Video Signal Routing (HDMI 2.1, DP, MIPI)
- 12Gbps Serial Data Communication Links
- High-Resolution Display Interfaces
- Server & Data Center Signal Switching
- Industrial High-Speed Data Acquisition
- Consumer Electronics & Monitor Systems
- Differential Signal MUX/DEMUX Modules
- High-Bandwidth PCB Signal Routing
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
