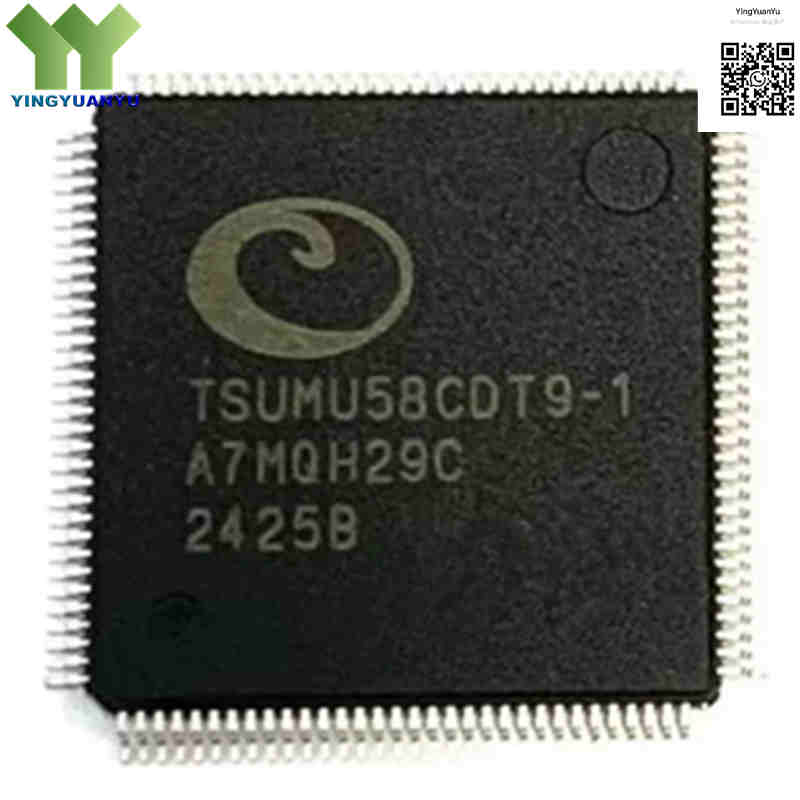

TSUMU58CDT9-1
TSUMU58CDT9-1
| Part Number | TSUMU58CDT9-1 |
| Manufacturer | MSTRA |
| Category | Integrated Circuits (ICs) > Interface ICs > Display Controllers |
| Description | LCD Display Controller IC with LVDS Input, Integrated Scaler, and Embedded Memory for HD Resolution Applications,LQFP-128 Package |
Product Overview
The TSUMU58CDT9-1 is a high-performance LCD display controller IC designed by MSTRA, optimized for HD resolution panels up to 1920×1080. This device integrates a high-speed LVDS receiver, advanced image scaling engine, color enhancement algorithms, and embedded frame memory into a single-chip solution, making it ideal for cost-effective consumer display applications such as monitors, TVs, and digital signage. The controller supports flexible input interfaces, robust image processing features, and low-power operation to meet the demands of modern display systems.
Core Advantages
- Integrated Single-Chip Solution: Combines LVDS receiver, scaler, frame memory, and image processing into one IC, reducing BOM cost and PCB footprint.
- High-Resolution Support: Handles full HD (1920×1080) resolution with advanced scaling and de-interlacing capabilities.
- Advanced Image Processing: Features color enhancement, contrast control, and sharpness adjustment for superior picture quality.
- Low-Power Operation: Optimized power management modes for energy-efficient display applications.
- Flexible Interface Compatibility: Supports standard LVDS input and various panel output configurations for easy integration.
- Compact Package: Available in a small form-factor package suitable for space-constrained designs.
Key Specifications
| Brand | MSTRA |
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Package / Case | LQFP-128 |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | TSUMU58CDT9-1 Marking |
| Input Interface | LVDS |
| Resolution Support | Up to 1920×1080 (Full HD) |
| Embedded Memory | Integrated Frame Memory |
| Operating Voltage | 3.3V (Typical) |
| Operating Temperature | 0°C ~ 70°C |
Typical Applications
- LCD Monitors
- Consumer Television Sets
- Digital Signage Displays
- Industrial Display Systems
- Automotive Infotainment Displays
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
- Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q: What is the maximum resolution supported by the TSUMU58CDT9-1?
A: The TSUMU58CDT9-1 supports full HD resolution up to 1920×1080 for high-quality display applications.
Q: Does the TSUMU58CDT9-1 include embedded frame memory?
A: Yes, the device integrates embedded frame memory, eliminating the need for external memory components and simplifying design.
Q: What input interface does the TSUMU58CDT9-1 use?
A: The controller features an LVDS input interface, compatible with standard LVDS signal sources.
Q: What is the typical operating voltage for the TSUMU58CDT9-1?
A: The device operates at a typical 3.3V supply voltage, suitable for most consumer display systems.
Q: Is the TSUMU58CDT9-1 RoHS compliant?
A: Yes, the TSUMU58CDT9-1 is RoHS compliant, meeting environmental standards for lead-free manufacturing.
