TSUMV56RBUT-Z1

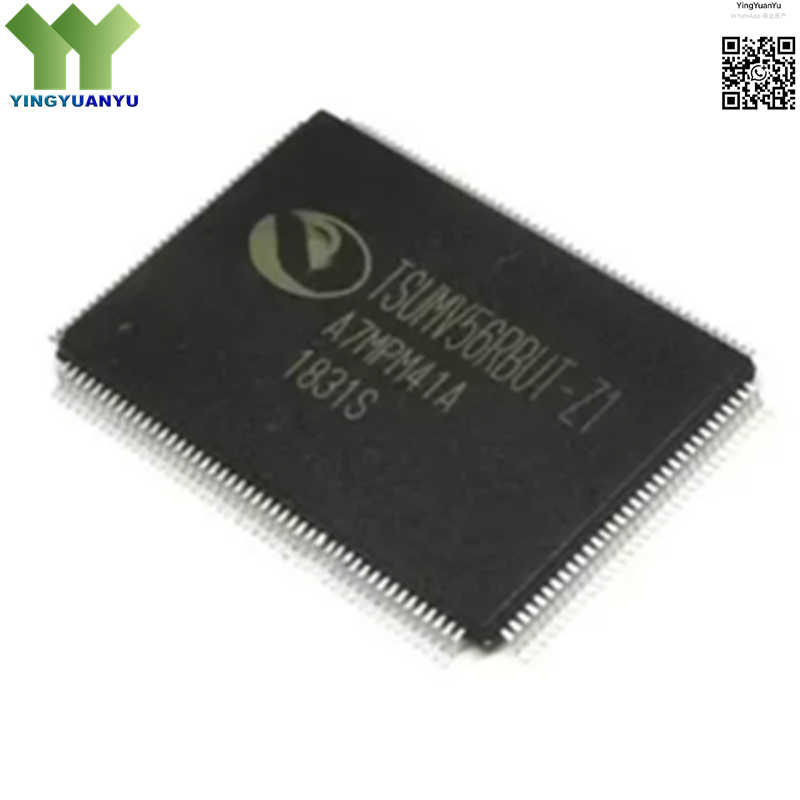

TSUMV56RBUT-Z1
| Part Number | TSUMV56RBUT-Z1 |
| Manufacturer | MStar (SigmaStar) |
| Category | Multimedia IC > TV Mainboard Controller > LCD TV SoC Driver IC |
| Description | All-in-one LCD TV Video Processor SoC, Integrated Video Decoder, MCU, LVDS Output for Standard Definition & HD Television Mainboard,Supply Voltage:Core:1.2V；IO:3.3V；Analog:5V,QFP-156 Package |
Product Overview
The TSUMV56RBUT-Z1 is a highly integrated single-chip TV control SoC developed by MStar, designed for cost-effective small and medium-size LCD analog & digital television mainboard solutions. This all-in-one chip embeds built-in CPU core, multi-format video/audio decoder, analog signal demodulation circuit and LVDS panel driving unit, greatly simplifying peripheral BOM count for TV motherboard design. It supports common AV, CVBS, YPbPr input signal processing and various standard LCD screen driving, with comprehensive built-in image enhancement algorithm for picture optimization. Compact QFP surface-mount packaging supports automated SMT production, delivering stable signal processing performance under regular working temperature range and widely used in entry-level LCD TV, monitor display and advertising screen control boards.
Key Specifications
| Brand | MStar |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | QFP-156 Package |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | TSUMV56RBUT-Z1 Marking |
| Core Function | Integrated Decoder + MCU + LVDS LCD Driver |
| Supported Signal | CVBS, AV, Component YPbPr Analog Input |
| Operating Temperature | -20℃ ~ 70℃ |
| Supply Voltage | Core:1.2V; IO:3.3V; Analog:5V |
| Resolution Support | Max 1366×768 HD Ready, compatible with 480i/576i SD format |
| Decoding Format | Video:MPEG1/MPEG2/H.264; Audio:MP3/AAC/WMA Hardware Decode |
| Peripheral Interface | 2×UART, I2C, SPI, General GPIO |
| Panel Interface | Single/Dual LVDS, 6bit / 8bit configurable output |
| Storage Match | SPI Flash 4M~32M + DDR1 64M/128M Supported |
| Power Consumption | Typical:1.1W, Standby Power＜80mW |
| Moisture Sensitivity Level | MSL3 |
Typical Applications
- Entry-level Small & Medium Size LCD Television Main Control Board
- Industrial Open Frame LCD Monitor Driver Control Circuit
- Commercial Indoor Small Advertising Display Motherboard
- Car Rear Seat Entertainment LCD Display Control Module
- Household Small Size Smart Digital Screen Driver Design
- DIY General LCD Screen Driver Conversion Board Project
- Hotel Room In-room Mini TV Mainboard Core Chip
- Medical Equipment Auxiliary Small LCD Display Control Unit
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is TSUMV56RBUT-Z1 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts standard QFP-156 SMD package and surface mount type for PCB assembly.
Q4: What resolution can this TV main SoC support?
A: Maximum support 1366×768 HD Ready resolution, compatible with standard definition 480i / 576i screen input.
