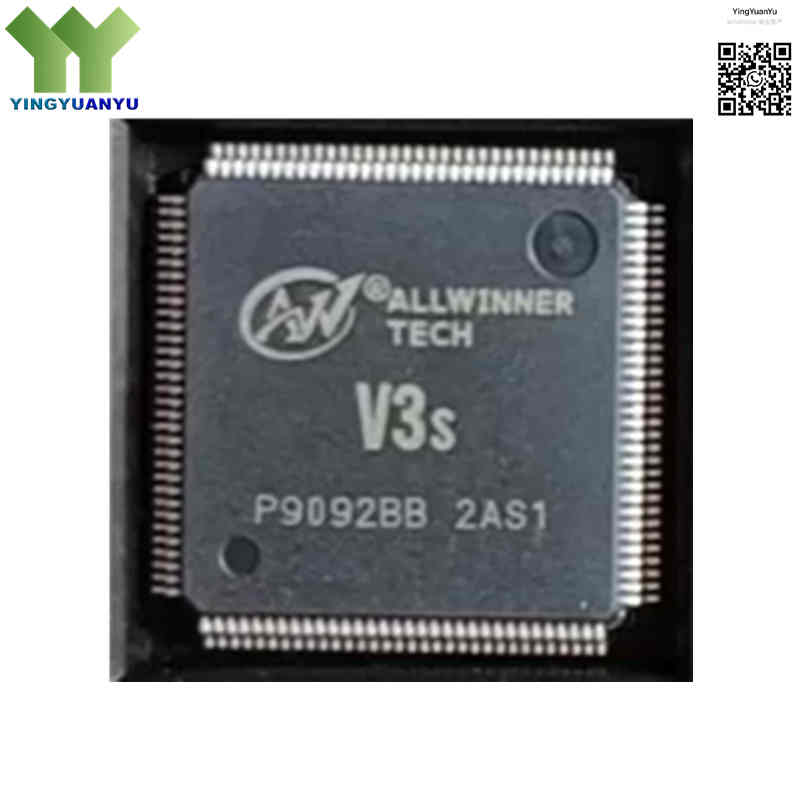

V3S
V3S
| Part Number | V3s |
|---|---|
| Manufacturer | Allwinner Technology |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors / System-on-Chip (SoC) |
| Description | High-performance, low-power ARM Cortex-A7 System-on-Chip (SoC) operating at 1.2GHz with integrated 64MB DDR2 DRAM, designed for smart video recording, IP cameras, and edge AI IoT solutions. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The Allwinner V3s is a cost-effective, low-power SoC tailored for smart video and IoT applications. It features a 1.2GHz ARM Cortex-A7 core with 64MB DDR2 SDRAM integrated via SIP packaging, reducing PCB complexity and BOM cost. With built-in ISP and H.264/MJPEG 1080p encoding, it is ideal for IP cameras, dash cams, and edge AI projects in a compact 128-pin eLQFP package.
Core Advantages
Highly Space-Saving SIP DDR2 Integration
Integrates 64MB of DDR2 memory directly inside the application processor chip casing, removing complex external memory routing tracks and shrinking the target product PCB form-factor dimensions dramatically.
Hardware H.264 & MJPEG HD Video Encoding
Features an autonomous embedded hardware codec pipeline optimized for compressing high-fidelity 1080p video frames at low bitrates via H.264 and MJPEG encoding, ensuring smooth network audio-visual streaming with minimal thermal output.
Rich Peripheral and Sensor Interconnect Matrix
Equipped with native MIPI CSI (2-lane) and parallel CSI camera sensor inputs, an audio codec subsystem, an integrated 10/100M Ethernet PHY, and dual SD/MMC interfaces to cover all connectivity parameters without external helper ICs.
Cost-Optimized LQFP Package Format
Utilizes an eLQFP-128 physical leaded format that allows engineers to utilize inexpensive 2-layer or 4-layer PCB configurations, lowering overall tooling, test development, and factory assembly overhead costs.
Key Specifications
| Brand | Allwinner Technology |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Package Format) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | LQFP-128 (14×14 mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | Allwinner V3s / Batch Fabrication Control Tracking Identification Codes |
| CPU Architecture Core | 32-bit ARM® Cortex®-A7 Single Core Processor |
| Maximum Clock Frequency | 1.2 GHz Execution Speed |
| Embedded DRAM Space | SIP Integrated 64 MB DDR2 SDRAM |
| Video Encoding Codec | Hardware H.264 & MJPEG baseline/main profile encoding up to 1080p@30fps |
| Camera Sensor Interfaces | Parallel CSI (8/10/12-bit) and 2-lane MIPI CSI Interface Options |
| Display Controller Unit | Supports RGB LCD panel interfaces up to 1024×768 resolution scaling |
| On-Chip Audio Block | Integrated 24-bit Audio Codec with stereo DAC and ADC channels |
| Network Connectivity PHY | Built-in 10/100 Mbps Ethernet Physical Layer (EPHY) Transceiver |
| Operating Temperature Range | -20°C to +70°C (Standard Consumer/Commercial Operation Window) |
Typical Applications
- Smart Car Driving Dash Cams, Rear-View Camera Recording Nodes, and Fleet Loggers
- High-Definition IP Security Monitoring Cameras and Smart Home Wi-Fi Video Doorbells
- Smart Building Access Intercom Terminals, Touchscreen Interfaces, and Human-Machine Monitors
- Open-Source Linux Single Board Computers (SBC), Embedded Hacking Modules, and Prototyping Platforms
- Industrial IoT Edge Gateways, QR Code Decoders, and Voice-Activated Command Modules
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock inventory of the Allwinner V3s processor completely original?
A: Yes, we guarantee that all Allwinner V3s chips in our active inventory are 100% brand-new, original factory components, managed and packaged under strict anti-static ESD shielding safeguards.
Q2: Can the Allwinner V3s boot and run a complete mainstream Linux operating system distribution?
A: Yes, the V3s features a standard ARM Cortex-A7 architecture with MMU support. It is fully supported by the open-source community, allowing it to boot standard Linux distributions smoothly.
Q3: Does this chip require external DDR memory chips for normal operation?
A: No extra external DDR memory is needed. The V3s adopts SIP packaging with 64MB DDR2 SDRAM integrated inside the chip, which can work independently and greatly simplify hardware design.
Q4: Where can I get technical documents, schematic references and bulk quotation?
A: Please fill out the inquiry form on this page. Our team will send you complete technical materials and competitive bulk price within 24 hours.
