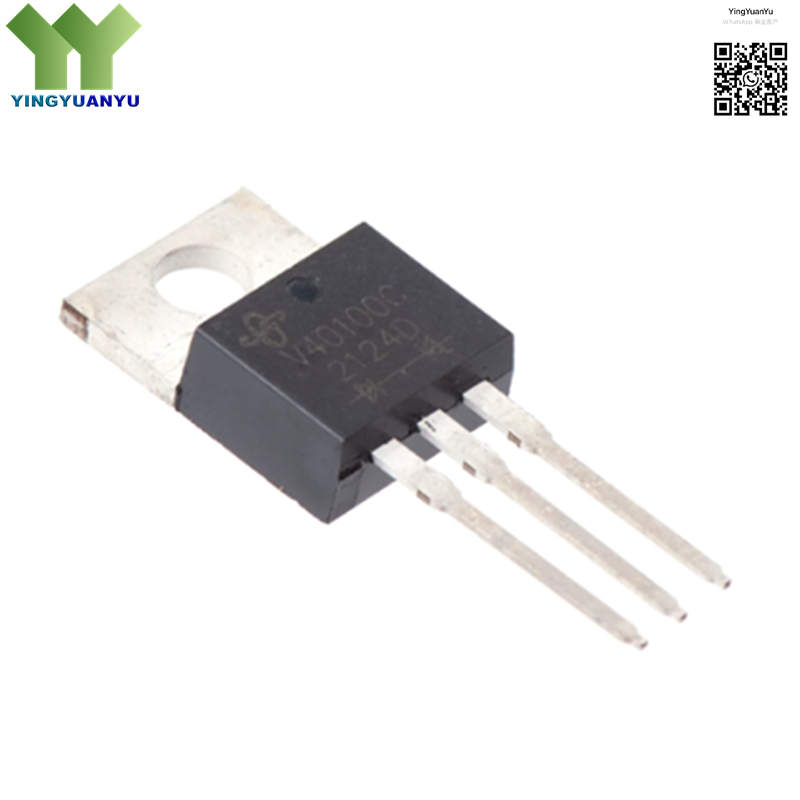

V40100C-E3/4W
V40100C-E3/4W
| Part Number | V40100C-E3/4W |
| Manufacturer | Vishay |
| Category | Diodes > Schottky Rectifier Diode |
| Description | Schottky Barrier Rectifier, 100V, 40A, Low Forward Voltage Drop,TO-220AB-3 Package |
Product Overview
The V40100C-E3/4W is a high-efficiency Schottky barrier rectifier manufactured by Vishay. Featuring low forward voltage drop and fast reverse recovery speed, this diode effectively reduces power loss and improves power conversion efficiency. It delivers stable surge current resistance and excellent thermal performance to ensure reliable continuous operation under high-current working conditions. Packaged in TO-220AB-3 through-hole form for easy heat sink installation, this component is widely used in switching power supply, DC-DC converter, battery charging and industrial rectification circuits.
Key Specifications
| Brand | Vishay |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TO-220AB-3 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | V40100C Marking |
| Reverse Voltage (Vrrm) | 100 V |
| Average Forward Current (If) | 40 A |
| Forward Voltage (Vf) | 0.73V@20A Typ |
| Operating Temperature | -55°C to 150°C |
Typical Applications
- Switch Mode Power Supply Rectification
- DC-DC Step Down Converter Modules
- Battery Charging Control Circuits
- Industrial Low Voltage Rectifier Units
- Adapter & Charger Power Boards
- High Current Freewheeling Diode Circuits
- Portable Energy Storage Equipment
- Automotive Low-Voltage Power Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is V40100C-E3/4W RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts TO-220AB-3 package and through-hole mounting design.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
