VS1063A-L
VS1063A-L
| Part Number | VS1063A-L |
|---|---|
| Manufacturer | VLSI Solution |
| Category | Integrated Circuits (ICs) > Audio Special Purpose > Audio Codecs / Audio Processors |
| Description | Audio Codec IC, supports MP3/AAC/WMA/Ogg Vorbis/FLAC decoding & MP3/Ogg Vorbis/G.711/PCM encoding, LQFP-48 (7×7mm) |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The VS1063A-L is a compact single-chip audio codec IC from VLSI Solution, built around low-power VSP4 DSP core. It supports multi-format audio decoding (MP3, AAC, WMA, Ogg Vorbis, FLAC, WAV/PCM) and real-time encoding for MP3, Ogg Vorbis, G.711 and PCM. Equipped with integrated stereo DAC, ADC, headphone driver and mic preamplifier, the chip communicates with host MCU via SPI bus. Packaged in LQFP-48, it is widely adopted for VoIP equipment, voice recorders, internet radios and embedded industrial audio devices.
Core Advantages
Comprehensive Audio Decoding & Encoding
Supports mainstream audio decoding formats and on-chip real-time encoding, lowering host processor computing burden.
Integrated Analog Circuitry
On-chip stereo ADC/DAC, microphone preamp and 30Ω headphone amplifier reduce peripheral component count.
Convenient SPI Communication Interface
SPI SCI/SDI bus enables simple connection with 8/16/32-bit MCUs and FPGA platforms.
Low Power & Rich DSP Audio Functions
Built-in tone control, spatial audio, playback speed adjustment and silence detection with low power consumption.
Key Specifications
| Brand | VLSI Solution |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | LQFP-48 (7×7 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

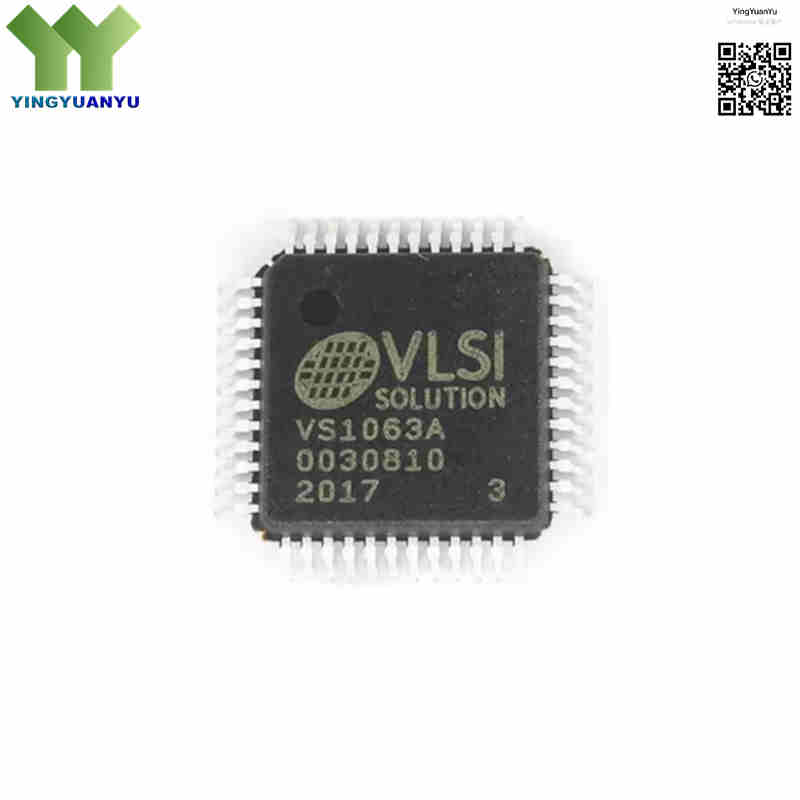

| Surface Marking / Silkscreen | VS1063A Marking |
| Supported Decoders | MP3 (MPEG 1/2 Layer III), AAC-LC/HE-AAC, WMA, Ogg Vorbis, FLAC, WAV/PCM |
| Supported Encoders | MP3, Ogg Vorbis, G.711 (u-law/A-law), PCM (16-bit stereo/mono), IMA ADPCM |
| Max Audio Sampling Rate | 48kHz |
| Analog Specifications | Stereo DAC (Typical SNR > 90dB), Stereo ADC, Integrated 30Ω Headphone Amplifier |
| Interface Type | SPI (Serial Control Interface / Serial Data Interface), I2S, UART |
| Digital Supply Voltage VDD | 1.7 V to 1.95 V (Core), 1.7 V to 3.6 V (I/O) |
| Analog Supply Voltage AVDD | 2.6 V to 3.6 V |
| Operating Temperature Range | -40°C to +85°C (Industrial Grade) |
| Packaging Format | Tray / Tape & Reel |
Typical Applications
- IP audio encoders, internet public address (PA) systems, and VoIP communication devices
- Standalone IC voice recorders, audio repeaters, and dictation machines
- Internet radios, network streaming players, and wireless audio receiver modules
- Embedded industrial equipment voice prompts, elevator announcements, and security alarm audio units
- Smart home devices, audio processing accessories, and educational electronic toys
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the main difference between VS1063A-L and VS1053B?
A: VS1053B mainly works as an audio decoder with limited encoding. VS1063A-L is a full audio codec, supporting hardware MP3 real-time encoding and richer built-in DSP audio processing functions.
Q2: Can VS1063A-L realize real-time MP3 hardware encoding?
A: Yes. It supports real-time MP3 encoding from microphone or line-in input, without heavy computing load of main controller.
Q3: What interfaces are available on VS1063A-L?
A: Equipped with SPI(SCI/SDI), I2S and UART interfaces, convenient to connect with MCU and FPGA.
Q4: What does the suffix “L” stand for in VS1063A-L?
A: “L” represents LQFP-48 7×7mm surface mount package for standard SMT production.
Q5: Are there compatible alternative chips for VS1063A-L?
A: VS1063A is the main model; VS1063B is upgraded version. If encoding function is unnecessary, VS1053B can be used as cost-down alternative for simple decoding projects.
Q6: What is the maximum audio sampling rate supported by this chip?
A: The maximum supported audio sampling rate is 48kHz for both encoding and decoding.
Q7: What are the core power supply requirements of VS1063A-L?
A: Core voltage:1.7V~1.95V; I/O voltage:1.7V~3.6V; analog AVDD:2.6V~3.6V. Different power domains need independent power filtering.
Q8: Can VS1063A-L work without external audio DAC?
A: Yes. It integrates stereo DAC, ADC and headphone amplifier, which can directly drive headphones without extra audio DAC chip.
