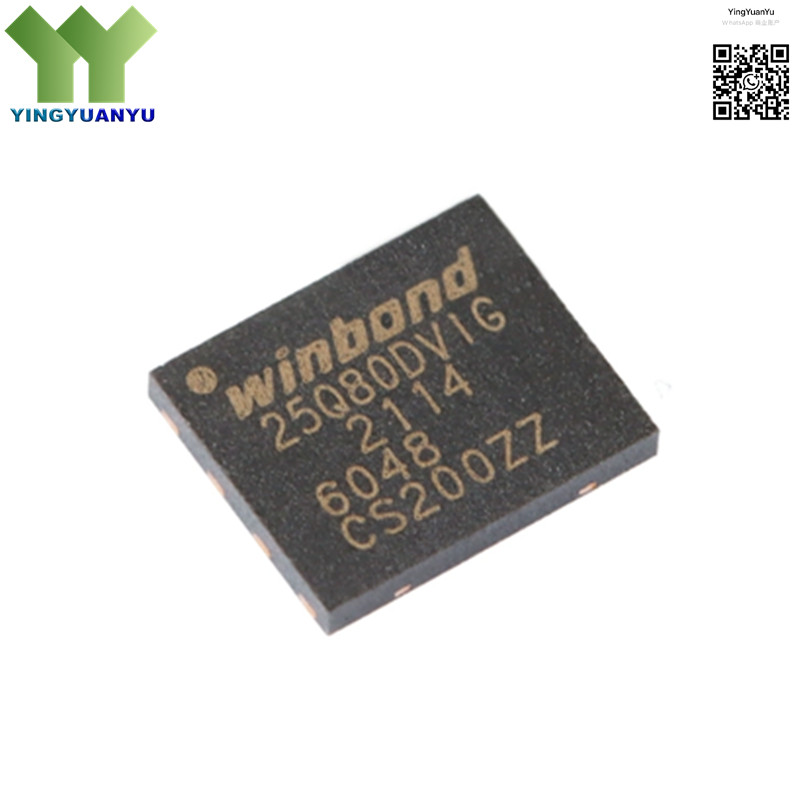

W25Q80DVZPIG
W25Q80DVZPIG
| Part Number | W25Q80DVZPIG |
|---|---|
| Manufacturer | Winbond Electronics |
| Category | Flash Memory; 3V Quad SPI Serial Flash Memory |
| Description | 8M-Bit (1MB) Quad SPI Flash Memory, 104MHz, Low Power, High Reliability, WSON-8 Package |
Product Overview
The W25Q80DVZPIG is a high-performance 8M-bit serial flash memory featuring Quad SPI interface for embedded system code storage, configuration data, and small-scale data logging applications. It operates from 2.7V to 3.6V, supports clock speeds up to 104MHz with Standard/Dual/Quad SPI modes, and delivers fast read, program, and erase operations with excellent stability. The device integrates software and hardware write protection, OTP security area, and advanced data integrity mechanisms to ensure safe and reliable storage. With ultra-low power consumption, high endurance, and wide operating temperature range, it is widely used in consumer electronics, industrial control, and IoT devices. Housed in a standard WSON-8 surface-mount package, it supports easy PCB integration and mass production.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Winbond |
| Memory Density | 8M-bit (1MB) |
| Interface | Quad SPI / Dual SPI / Standard SPI |
| Package Type | WSON-8 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Embedded MCU Firmware & Boot Code Storage
- IoT Sensor Nodes & Wireless Communication Modules
- Consumer Electronics & Smart Home Devices
- Industrial Control & Automation Systems
- Configuration Data & System Parameter Storage
- Printers, Set-Top Boxes & Peripherals
- Portable & Battery-Powered Electronics
- Low-Density Embedded Flash Memory Solutions
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
