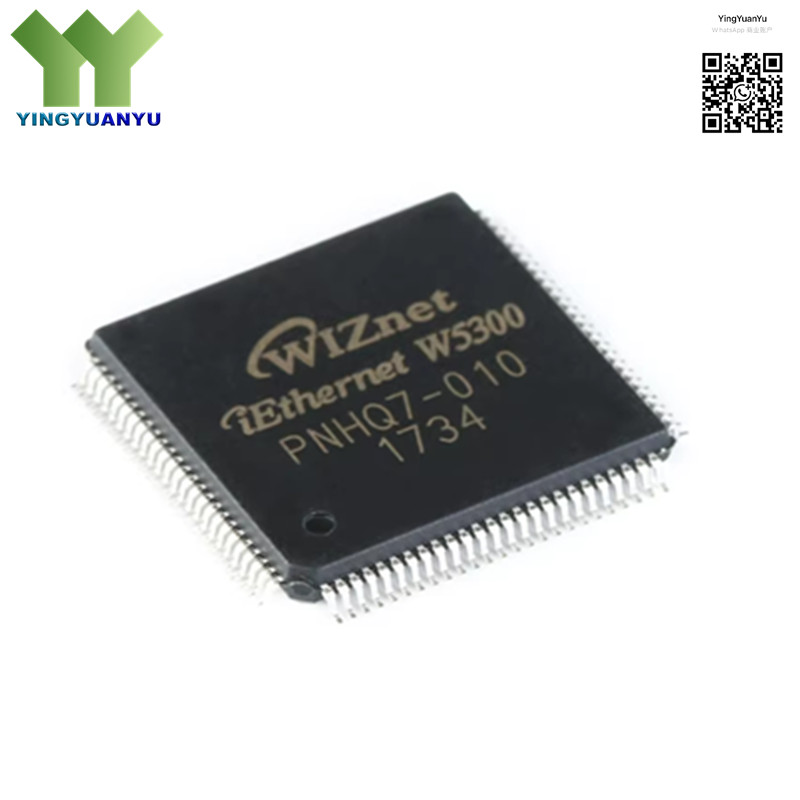

W5300
| Part Number | W5300 |
| Manufacturer | WIZnet Co., Ltd. |
| Category | Integrated Circuits (ICs) – Interface – Controllers |
| Description | Hardwired TCP/IP Embedded Ethernet Controller |
Product Overview
The W5300 is a high-performance hardwired TCP/IP embedded Ethernet controller that enables easy internet connectivity for embedded systems. It integrates a fully hardwired TCP/IP stack, 10/100 Ethernet MAC, and PHY, eliminating the need for complex software stack development. Supporting TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols, the W5300 offers reliable and stable network communication. With a high-speed SPI/parallel host interface, it is suitable for industrial automation, smart home devices, IoT gateways, and various embedded applications requiring robust Ethernet connectivity.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD | W5300 PCB Footprint & Symbol Available |
| Warranty | 1 Year Manufacturer Warranty |
| Brand | WIZnet |
| Ethernet Protocol | 10/100Mbps, Full/Half Duplex |
| TCP/IP Stack | Hardwired, 8 Independent Sockets |
| Host Interface | High-speed SPI / Parallel Bus |
| Operating Voltage | 3.3V |
| Package Type | QFP-100 |
Typical Applications
- Industrial Ethernet Automation Systems
- IoT (Internet of Things) Devices
- Smart Home Appliances
- Remote Monitoring & Control Systems
- Network Security Cameras
- Embedded Network Servers
- Data Logging Equipment
- Medical Networking Devices
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
