XC6SLX100T-2FGG484C

Add to quote

XC6SLX100T-2FGG484C

Part NumberXC6SLX100T-2FGG484C
ManufacturerAMD / Xilinx
CategoryIntegrated Circuits (ICs) > Embedded – FPGAs (Field Programmable Gate Array)
DescriptionSpartan‑6 LXT FPGA IC, 101,261 Logic Elements, 4824 Kb Block RAM, 296 I/Os, 8‑Channel GTP Transceivers, 484‑BBGA Package.
Stock StatusIn Stock
OriginOriginal Factory

Product Overview

XC6SLX100T‑2FGG484C belongs to AMD/Xilinx Spartan‑6 LXT family, 45nm low‑cost high‑density FPGA. It integrates 8‑channel 3.2Gbps GTP transceivers, with 101261 logic cells,180 DSP48A1 slices and 4824Kb Block RAM in 484‑FBGA package. Suitable for industrial automation, video processing and communication equipment.

Core Advantages

Integrated GTP Serial Transceivers

8‑channel GTP up to 3.2Gbps, supports PCIe v1.1, Serial RapidIO, CPRI without external PHY.

Rich Logic & DSP Resources

Abundant logic cells and DSP slices for complex logic and real‑time signal processing.

Low‑Power 45nm Process

Multiple power‑saving modes to lower power consumption for embedded devices.

Flexible I/O & Memory Interface

1.2V‑3.3V multi‑standard I/O, built‑in hard controller for DDR/DDR2/DDR3/LPDDR.

Key Specifications

BrandAMD / Xilinx
RoHS StatusRoHS Compliant / Lead‑Free (“G” designation)
Moisture Sensitivity LevelMSL‑3 (168 Hours)
DSP48A1 Slices180
EDA / CADPCB Footprint & 3D Model Available upon Request
Warranty1‑Year Standard Quality Warranty
Package / Case484‑FCBGA (23×23 mm, 1mm ball pitch)
Mounting TypeSurface Mount Device (SMD/SMT)

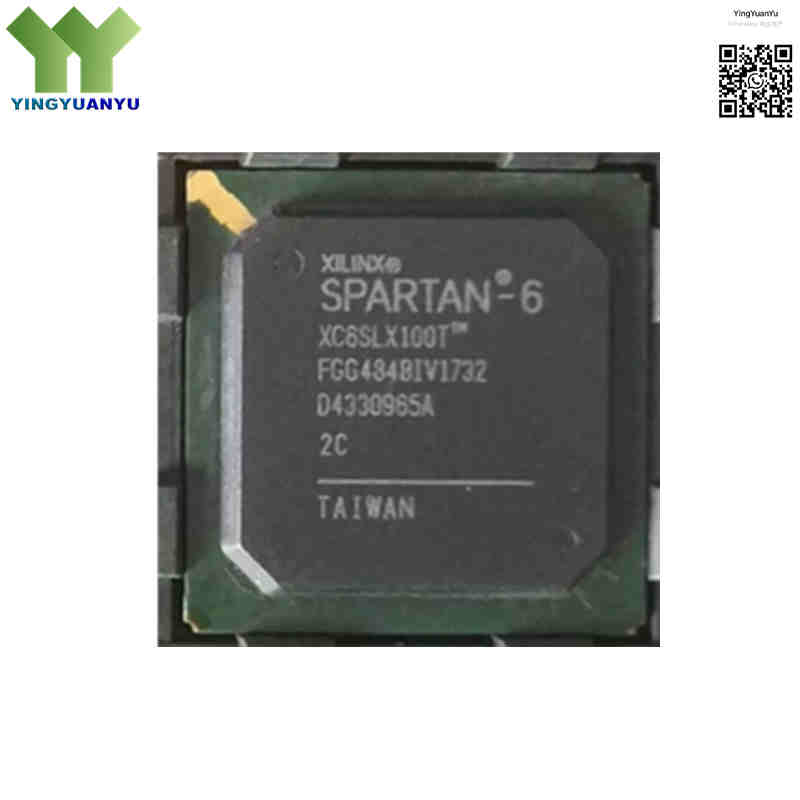

Surface Marking / SilkscreenXC6SLX100T FGG484 / Xilinx Logo
Logic Elements / Cells101,261
Logic Array Blocks (LABs) / CLBs7,911
Total RAM Bits4,939,776 Bits (4,824 Kb Block RAM)
Number of I/O Pins296
Number of GTP Transceivers8 (Max 3.2 Gbps)
Supply Voltage (Vccint)1.2 V (1.14 V to 1.26 V)
Speed Grade-2 (Standard Speed)
Operating Temperature0°C to +85°C (Commercial Grade, C suffix)

Typical Applications

  • Industrial Automation, Motor Control, and Machine Vision Systems
  • Automotive Infotainment, Driver Assistance (ADAS), and Telematics
  • Broadcast Video Processing, Image Capture, and Surveillance Equipment
  • Telecommunication Base Stations, Wired Access, and Wireless Infrastructure
  • Medical Imaging Systems, Test Instrumentation, and Embedded Computing

Order & Shipping Info

Minimum Order Quantity (MOQ)1 Piece
Shipping TimeShipped within 1‑2 business days
Delivery Time3‑7 working days worldwide
Shipping MethodsDHL, UPS, FedEx, EMS
Payment MethodsT/T (Bank Transfer), PayPal, Credit Card, Western Union

Technical Support

For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.

Frequently Asked Questions

Q1: What does “T” mean in XC6SLX100T‑2FGG484C?

A: “T” stands for LXT series, equipped with 8‑channel GTP 3.2Gbps transceivers. XC6SLX100 (no‑T) has no high‑speed serial transceivers.

Q2: Difference between FGG484 and FG484 suffix?

A: Pin‑to‑pin compatible footprint. FG484 is tin‑ball BGA; FGG484 is lead‑free RoHS BGA, only solder ball plating differs.

Q3: What is the difference between ‑C and ‑I suffix?

A: ‑C: commercial grade 0℃~+85℃; ‑I: industrial grade ‑40℃~+100℃. Direct compatible alternative: XC6SLX100T‑2FGG484I.

Q4: Which software supports XC6SLX100T‑2FGG484C?

A: Only ISE 14.7 supports Spartan‑6. Vivado cannot compile or program this FPGA.

Q5: What does‑2 speed grade represent?

A:‑2 is standard speed grade. Alternatives:‑1(low‑speed),‑3(high‑speed).

Q6: Are there drop‑in replacement parts?

A: XC6SLX100T‑2FGG484I is pin‑compatible industrial version. No modern FPGA direct substitute; migrating to Artix‑7 needs PCB & firmware redesign.

Q7: Can XC6SLX100 replace XC6SLX100T?

A: Not if your design uses serial lanes. XC6SLX100 omits GTP transceivers despite same logic cell quantity.

Q8: How to get datasheet, pinout and quotation?

A: Submit quick inquiry for datasheet, BGA pinout, footprint drawing and bulk price.
