XC95288XL-10PQG208C
XC95288XL-10PQG208C
| Part Number | XC95288XL-10PQG208C |
|---|---|
| Manufacturer | AMD / Xilinx |
| Category | Integrated Circuits (ICs) > Embedded – CPLDs (Complex Programmable Logic Devices) |
| Description | High‑Performance 3.3V CPLD, 288 Macrocells, 6,400 Usable Gates, 168 I/Os, 208‑PQFP Package. |
| Stock Status | In Stock (EOL obsolete part, confirm inventory before order) |
| Origin | Original Factory |
Product Overview
XC95288XL‑10PQG208C is Xilinx XC9500XL series 3.3V high‑density CPLD. It features 288 macrocells, 6400 usable gates, 10 ns propagation delay and 168 user I/Os in 208‑PQFP(28×28 mm). Built on 0.35μm Fast‑FLASH CMOS, it supports JTAG ISP, 5V‑tolerant I/O, 10000+ program‑erase cycles and 20‑year non‑volatile data retention for glue‑logic and legacy‑logic applications.
Core Advantages
In‑System JTAG Programmability
IEEE1149.1 JTAG interface, supports on‑PCB reprogramming without removing chip, speeds‑up prototype and mass‑production.
5V‑Tolerant Mixed‑Voltage I/O
3.3V core supply, I/O pins support 5V tolerance, connects directly to legacy 5V and modern 2.5V/3.3V circuits without level‑shifters.
Deterministic High‑Speed Timing
10 ns maximum pin‑to‑pin delay; 100MHz typical system frequency, 208MHz toggle frequency, delivers stable timing performance.
Non‑Volatile Instant‑On Flash
20‑year data retention, ≥10000 erase‑write cycles. Powers‑up instantly, no external configuration memory required.
Key Specifications
| Brand | AMD / Xilinx |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free (“G” designation) |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 208‑PQFP (28×28 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

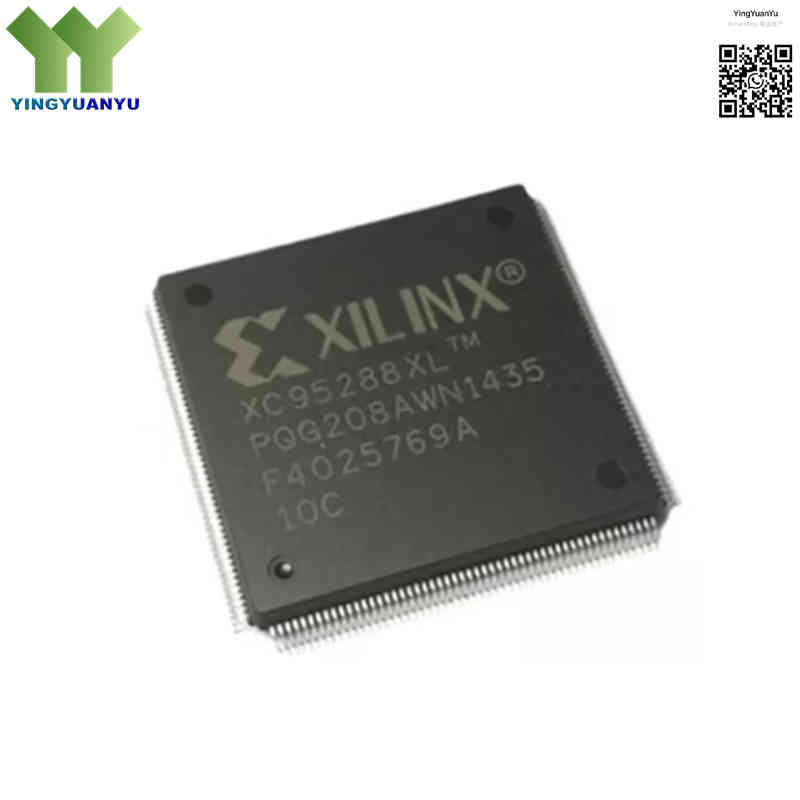

| Surface Marking / Silkscreen | XC95288XL PQG208 / Xilinx Logo |
| Macrocells | 288 |
| Usable Gates | 6,400 |
| Logic Blocks (LAB) | 16 |
| Number of I/O Pins | 168 (some pins occupied by GCK/GSR/GTS, practical available I/O less) |
| Delay Time tpd(1) Max | 10.0 ns |
| Typical Operating Frequency | 100 MHz System, 208 MHz Toggle Frequency |
| Supply Voltage (Vcc) | 3.0 V to 3.6 V (3.3V Nominal) |
| I/O Tolerance | 5V‑Tolerant |
| Operating Temperature | 0°C to +70°C (Commercial Grade) |
| Programmable Type | In‑System Programmable (Flash‑based, JTAG IEEE1149.1) |
| Program / Erase Cycles | Minimum 10,000 cycles |
| Data Retention | Minimum 20 Years |
| Process Technology | 0.35μm CMOS FastFLASH |
| Device Status | EOL Obsolete, Limited Stock Available |
Typical Applications
- Bus Interface Logic and Multi‑Voltage Level Translation
- Industrial Control Systems, PLCs, and Factory Automation Equipment
- Telecommunication Switching Systems, Routers, and Data Communications
- Automated Test Equipment (ATE) and Medical Diagnostics Instrumentation
- Embedded System Glue Logic, Memory Decoding, and State Machine Controllers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What do suffix G, C, I stand for in XC95288XL series?
A: G‑Lead‑Free RoHS compliant; C‑Commercial grade 0~+70°C; I‑Industrial grade ‑40~+85°C. This part XC95288XL‑10PQG208C uses G (RoHS) and C (commercial temp).
Q2: Does XC95288XL‑10PQG208C support instant‑on power‑up?
A: Yes. Non‑volatile FastFLASH architecture, no external configuration memory required, runs immediately after power‑on.
Q3: What is pin‑to‑pin compatible high‑temperature alternative?
A: XC95288XL‑10PQG208I. Identical speed‑10 and 208‑PQFP package, industrial ‑40℃~+85℃ temperature range, direct drop‑in replacement.
Q4: Difference between ‑10 and ‑6 speed grade?
A:‑10: max tpd=10 ns (this device);‑6: max tpd=6 ns faster version XC95288XL‑6PQG208C. Pin‑compatible, swap for higher‑speed designs.
Q5: Which tool is used to program XC95288XL?
A: Xilinx ISE 14.7 WebPACK is the final supported tool, programming via JTAG cable. Vivado does NOT support XC9500XL CPLD family.
Q6: Why practical usable I/O is less than 168?
A: Global control pins GCK/GSR/GTS occupy some channels and cannot act as general‑purpose I/O. Real I/O count depends on project configuration.
Q7: XC95288XL‑10PQG208C is EOL, any direct replacement?
A: No pin‑compatible new production CPLD. For new design migrate to CoolRunner‑II series with logic resource re‑evaluation. Original stock is the only drop‑in source.
Q8: How to get datasheet, footprint and bulk quotation?
A: Submit quick‑inquiry form for datasheet, PCB footprint, stock check and volume pricing.
