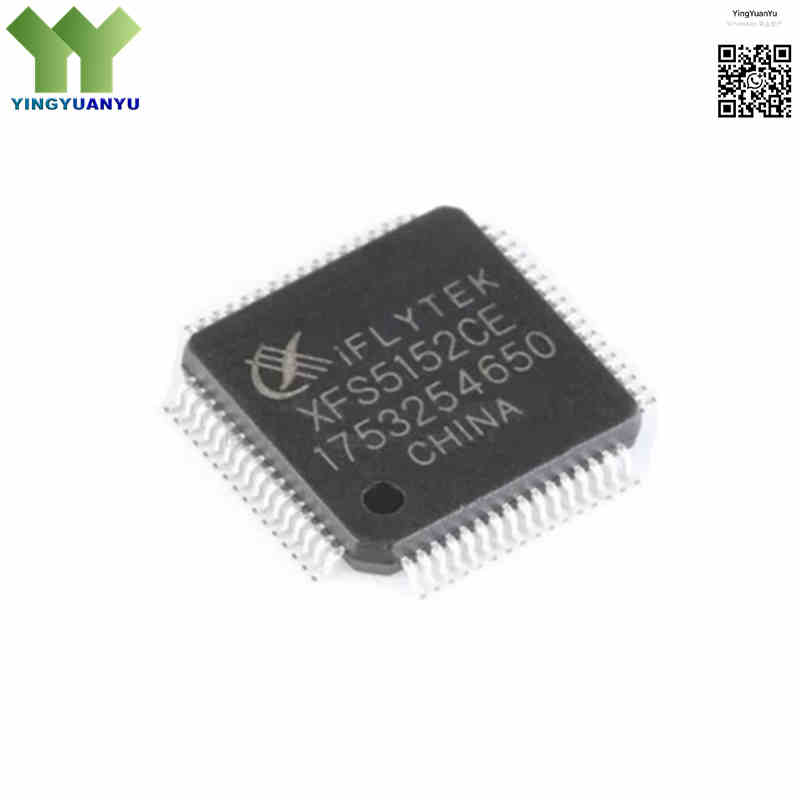

XFS5152CE
XFS5152CE Product Description
| Part Number | XFS5152CE |
|---|---|
| Manufacturer | iFLYTEK (Hefei iFly Digital Technology Co., Ltd.) |
| Category | Integrated Circuits (ICs) > Embedded – Interface Speech Synthesis / TTS Processors |
| Description | High-Performance Speech Synthesis (TTS) Chip with Offline Voice Recognition, Intelligent Chinese/English Text-to-Speech Processor, 64-Pin LQFP Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The XFS5152CE is a single-chip TTS voice synthesis processor for embedded intelligent devices. It adopts high-performance acoustic algorithms to convert text into clear real-time speech, supports Chinese & English mixed text parsing, and integrates UART/SPI/I2C three communication interfaces. Equipped with built-in DAC, background audio mixing, adjustable voice speed/tone and offline voice recognition (30 customizable command words), it greatly simplifies voice function development for embedded equipment.
Core Advantages
Natural Intelligent Pronunciation
Built-in professional linguistic analysis algorithm, automatically distinguishes polyphonic characters, numbers and idioms for smooth human-like voice output.
Dual-Language Compatibility
Simultaneously supports Chinese, English and mixed text input, auto-identifies character types to guarantee stable reading rhythm.
Audio Mixing Function
Realizes synchronous playback of background music and voice broadcast on a single chip, with flexible audio mixing control.
Multi-Interface Compatibility
Compatible with UART/SPI/I2C interfaces, matching all common 8/16/32-bit MCU and embedded processors.
Offline Voice Recognition
Integrated offline recognition module, supports up to 30 self-defined command words, no network required during operation.
Key Specifications
| Brand | iFLYTEK Speech Subsystems |
|---|---|
| Manufacturer Full Name | Hefei iFly Digital Technology Co., Ltd. |
| Part Number | XFS5152CE |
| RoHS Status | RoHS Compliant / Lead-Free, Halogen Free Optional |
| EDA/CAD Model | Schematic symbols and mechanical PCB land patterns are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 64-Pin LQFP (10.0mm × 10.0mm) |
| Mounting Type | Surface Mount (SMT / SMD) |
| Surface Marking / Silkscreen | XFS5152CE Marking |
| Core Functionality | Text-to-Speech (TTS) System Processor + Offline Voice Recognition |
| Offline Recognition Capacity | Support up to 30 groups customizable offline voice command words |
| Language Capabilities | Chinese (Mandarin), English, and Mixed Chinese/English streams |
| Text Encoding Format Supported | GB2312, GBK, BIG5, Unicode LE |
| Communication Interfaces | UART (Asynchronous Serial), SPI (Synchronous Serial), I2C |
| Baud Rate Range | Configurable from 9600 bps up to 115200 bps |
| Audio Performance Features | 10 adjustable speed levels, 10 variable pitch levels, 10 independent volume controls |
| Audio Output Type | PWM direct speaker drive out / Standard Analog Audio Out for external power amplifiers |
| Operating Voltage (Vcc) | 3.3V to 5.0V Dual Voltage Tolerant |
| Typical Working Current | 85mA @ 3.3V normal speech playback mode |
| Standby Current | ≤12mA sleep standby state |
| Operating Temperature Range | -20°C ~ +70°C (Consumer Grade Standard) |
| Storage Temperature Range | -40°C ~ +125°C |
| Packing Method | Tape & Reel standard bulk packing |
| Datasheet Supply | Complete official iFLYTEK datasheet provided upon request |
Typical Applications
- Intelligent automotive electronics, vehicle navigation voice alerts, and smart logistics tracking dashboards
- Industrial automation equipment consoles, security alarm hubs, and safety monitor warnings
- Public ticketing machines, queue management systems, and automated vending kiosks
- Smart home electronic systems, intelligent household appliances, and health instrumentation grids
- Handheld POS payment terminal voice broadcasting and barcode warehousing systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: How to send text to XFS5152CE for voice playback?
A1: MCU packages text into standard data frame, transmits via UART/SPI/I2C. The chip auto decodes text and outputs voice.
Q2: Can the chip read dates, time and currency correctly?
A2: Yes. Built-in intelligent algorithm identifies numbers, dates, currency and percentages with natural reading logic.
Q3: Do I need external power amplifier for speakers?
A3: It supports direct drive for buzzers. For loud industrial speakers, match analog output with amplifier chip like LM386.
Q4: What text encoding formats does the chip support?
A4: GB2312, GBK, BIG5 and Unicode Little-Endian, configurable in initialization command.
Q5: Does offline voice recognition rely on cloud network?
A5: No cloud required. Built-in offline engine supports up to 30 customizable voice commands.
Q6: What supply voltage range is applicable for XFS5152CE?
A6: Wide 3.3V~5V working voltage, compatible with most mainstream embedded mainboards.
Q7: Can I adjust playback speed and tone of synthesized voice?
A7: Yes. Speed, pitch and volume all have 10 adjustable gears via serial commands.
Q8: Is background music mixing supported during voice broadcasting?
A8: Single-chip audio mixing available, background music and prompt voice can play simultaneously.
Q9: What’s the operating temperature range of this chip?
A9: Standard consumer grade: -20°C ~ +70°C, suitable for most civilian embedded devices.
