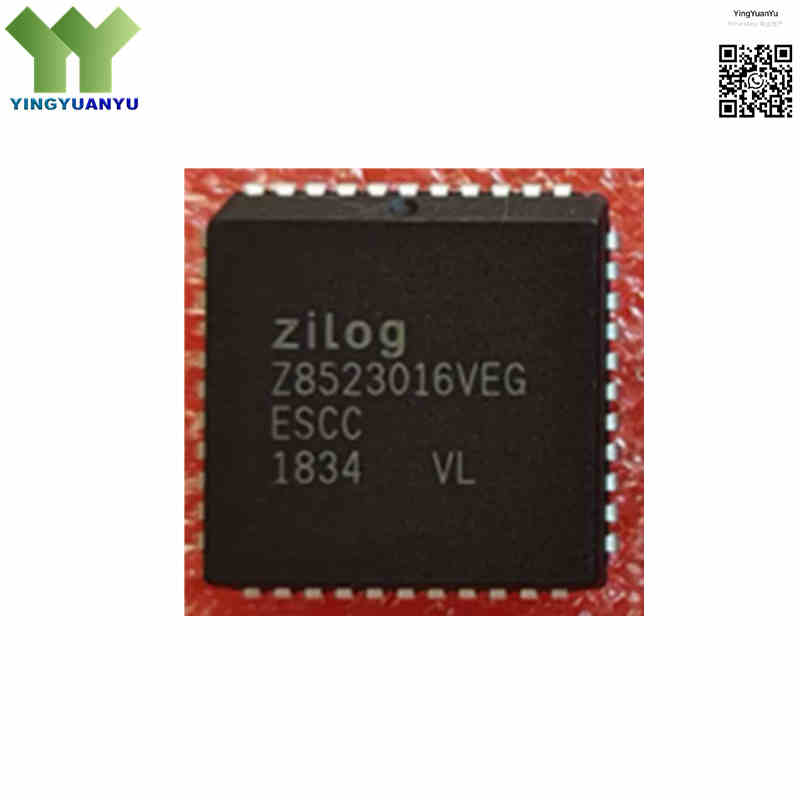

Z8523016VEG
Z8523016VEG
| Part Number | Z8523016VEG |
|---|---|
| Manufacturer | Zilog (An IXYS / Littelfuse Company) |
| Category | Integrated Circuits (ICs) > Interface > Telecom ICs / Serial Communication Controllers (SCC) |
| Description | Enhanced Serial Communications Controller (ESCC), dual-channel multiprotocol data communications peripheral operating up to 16 MHz in a 44-pin PLCC package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
Z8523016VEG is Zilog’s dual-channel ESCC, pin-to-pin upgraded from Z8030/Z8530 SCC. It runs at 16MHz, supports asynchronous, Bisync, HDLC/SDLC protocols, and features 4-byte TX / 8-byte RX FIFO per channel to cut CPU interrupt load. Made with CMOS process for low power, this 44-PLCC chip fits telecom, industrial and avionic serial communication equipment.
Core Advantages
Optimized FIFO Storage Blocks
4-byte transmit FIFO & 8-byte receive FIFO on dual channels, lower CPU interrupt pressure and avoid communication errors.
Flexible Multi-Protocol Execution
Compatible with asynchronous, Monosync, Bisync, SDLC and HDLC for various industrial network designs, supports built-in CRC verification.
Enhanced Baud Rate Generators
Dual independent programmable BRGs per channel for accurate, adjustable baud rates.
Robust PLCC Surface-Mount Housing
44-pin PLCC with J-bend leads, anti-vibration and stable contact for harsh temperature environments.
Dedicated Modem Control Pins
Integrated modem I/O pins, configurable as general-purpose GPIO for flexible peripheral expansion.
Key Specifications
| Brand | Zilog® / ESCC™ (Enhanced Serial Communications Controller) |
|---|---|
| RoHS Status | RoHS Compliant Lead-Free / Green Construction (designated by “G” suffix) |
| EDA/CAD Model | 3D Models, Schematic Symbols, and Footprint files |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 44-PLCC |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | Z8523016VEG Marking |
| Controller Type | Enhanced Serial Communications Controller (ESCC) |
| Number of Channels | 2 Independent Channels (Full-Duplex Operational Mode) |
| Max Clock Frequency | 16 MHz External Bus Frequency Limit |
| FIFO Capacity | 4-Byte Transmit FIFO, 8-Byte Receive FIFO per channel |
| Supported Protocols | Asynchronous, Monosync, Bisync, SDLC, HDLC, LocalLoopback, and Auto-Echo Modes |
| Data Encoding Options | NRZ, NRZI, FM0, FM1, and Manchester Encoding |
| Supply Voltage (Vcc) | +5.0V ± 10% (4.5V ~ 5.5V Standard Power Rail Configuration) |
| Max Data Transfer Rate | 0.512 Mbps Maximum Serial Baud Rate |
| CRC Function | Built-in CRC Check for SDLC Communication Mode |
| Modem I/O Pins | Programmable Modem Control Pins, Reusable as General Purpose I/O |
| Interface Compatibility | Non-Multiplexed Bus, compatible with Z8500-style host microprocessor buses |
| Operating Temperature Range | -40°C to +85°C Industrial/Extended Operational Grade |
| Storage Temperature Range | -65°C to +150°C |
| Process Technology | Low Power CMOS Semiconductor Process |
| Pin Count | 44 Pins Total |
Typical Applications
- Legacy Telecommunication Terminals, Switching Systems, and Multiplexers
- Industrial Fieldbus Gateways, RTUs, and Programmable Logic Controller (PLC) Interfaces
- Military and Aerospace Avionics, Subsystem Telemetry Controllers, and Remote Terminal Units
- Remote Access Network Concentrators, Dial-Up Routers, and Serial Device Servers
- Transportation Signaling systems, Traffic Control Hubs, and SCADA Communication Networks
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does VEG suffix stand for on Z8523016VEG?
A: V=44-PLCC package; E=-40~+85°C industrial temp range; G=RoHS lead-free green device.
Q2: What upgrades does Z85230 have over Z8530?
A: Expanded FIFO (4-byte TX /8-byte RX), improved hardware flow control and baud rate generators, less CPU load during high-speed transmission.
Q3: Can Z8523016VEG work with PLCC sockets?
A: Yes. Its 44-PLCC package supports socket plug-in for debugging, or direct SMT soldering for mass production.
Q4: PCB layout tips for stable high-speed serial signal?
A: Place 0.1μF bypass capacitor near Vcc pin; route differential serial traces above complete ground plane; keep clock traces short and isolated from noisy digital circuits.
Q5: Is this chip compatible with 3.3V power supply?
A: No, the standard operating supply voltage is 5V ±10%, 3.3V power cannot drive this controller normally.
Q6: Can multiple Z85230 chips run on the same host bus?
A: Yes, you can add address decoding logic to mount several ESCC controllers on one microprocessor bus for multi-channel serial expansion.
Q7: What is the maximum serial baud rate supported?
A: The chip supports a maximum data transfer rate up to 0.512 Mbps under 16MHz clock input.
Q8: Does Z8523016VEG support CRC error detection?
A: Yes, built-in CRC verification function specially designed for SDLC/HDLC communication transmission.
