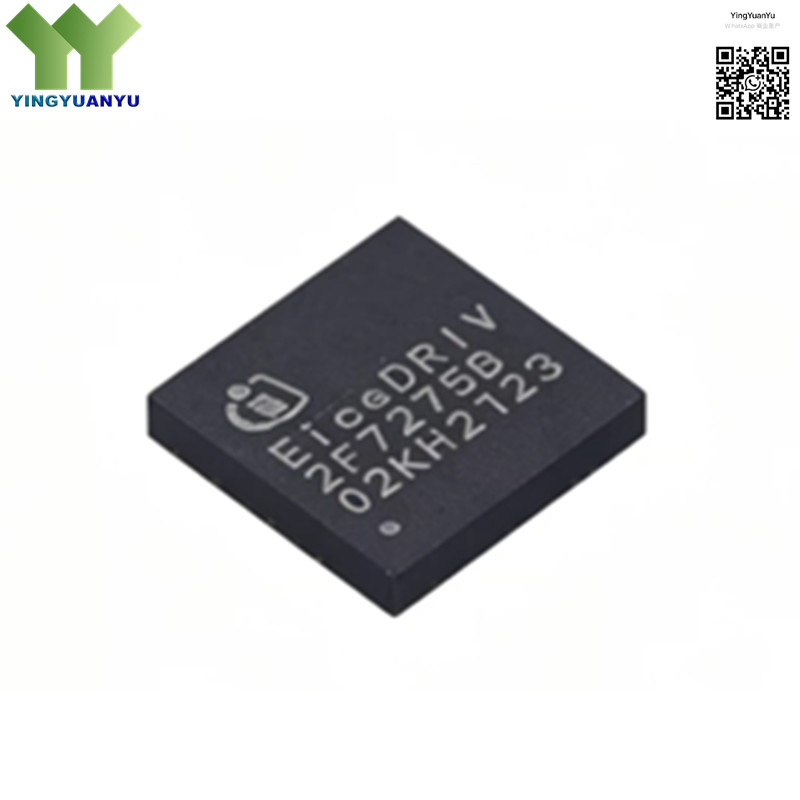

2EDF7275K
2EDF7275K
| Part Number | 2EDF7275K |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Gate Drivers; Dual-Channel High-Speed Gate Driver |
| Description | Dual-Channel 4A/8A Gate Driver for SiC MOSFETs & IGBTs, 200V, TFLGA-13 Package |
Product Overview
The 2EDF7275K is a high-performance dual-channel gate driver designed for driving Silicon Carbide (SiC) MOSFETs and IGBTs in high-efficiency power conversion systems. It delivers a peak output current of 4A/8A, supports ultra-fast switching speeds, and operates reliably up to 200V. The device features built-in under-voltage lockout (UVLO), desaturation protection, and matched propagation delays for both channels, ensuring stable and safe operation in high-frequency power applications. With a compact TFLGA-13 surface-mount package, it is optimized for high-power density designs including solar inverters, motor drives, EV chargers, and industrial power supplies.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon Technologies |
| Output Current | 4A/8A Peak |
| Channels | Dual Independent Channels |
| Supply Voltage | Up to 200V |
| Package Type | TFLGA-13 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- SiC MOSFET & IGBT Power Conversion Systems
- Motor Drives & Industrial Inverters
- Electric Vehicle (EV) Onboard Chargers
- Solar Inverters & Energy Storage Systems
- Switch-Mode Power Supplies (SMPS)
- High-Frequency DC-DC Converters
- UPS & Industrial Power Modules
- High-Power Density Power Electronics
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
