2EDN7524F
2EDN7524F
| Part Number | 2EDN7524F |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Gate Drivers; Dual Channel MOSFET Gate Driver |
| Description | 5A Dual-channel low-side gate driver IC, high speed,supporting OptiMOS, CoolMOS, DSO-8 surface mount package |
Product Overview
The 2EDN7524F is a high-performance dual-channel low-side gate driver manufactured by Infineon Technologies. It features fast switching speed, high drive capability and excellent noise immunity, which can effectively drive MOSFETs and IGBTs. With integrated protection circuits and compact package design, this driver IC ensures stable and reliable operation. It is widely used in switching power supplies, motor drives and various high-frequency power conversion systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DSO-8 |
| Mounting Type | Surface Mount (SMD) |

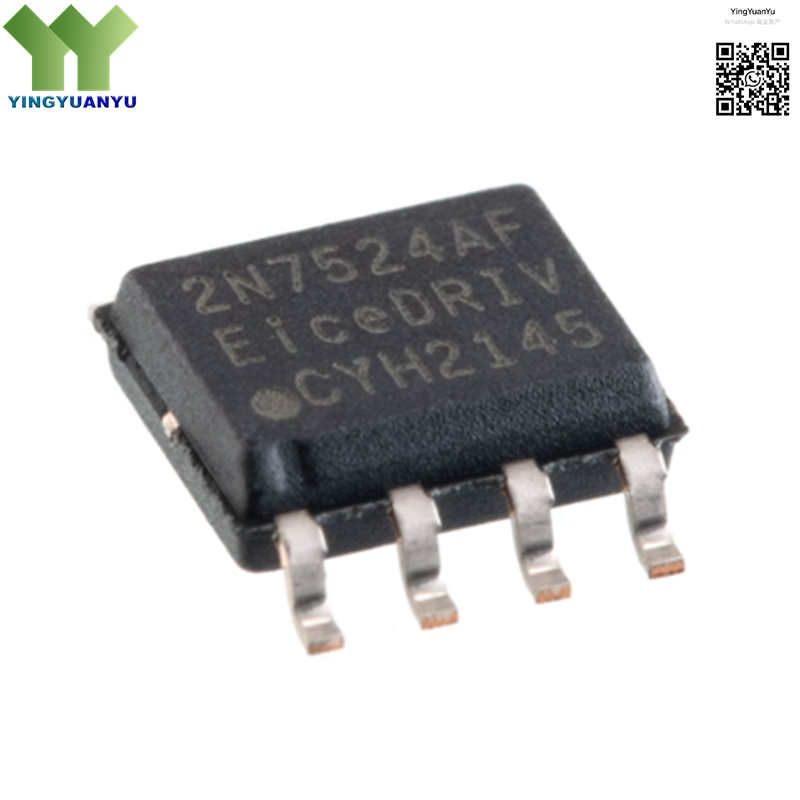

| Surface Marking / Silkscreen | 2N7524AF Marking |
| Number of Channels | 2 Channels |
| Supply Voltage | 4.5V to 18V |
| Peak Output Current | 5A |
| Operating Temperature | -40°C to +150°C |
Typical Applications
- Switch Mode Power Supplies
- DC-DC Converter Modules
- Brushless DC Motor Drives
- Industrial Power Inverters
- High Frequency Switching Circuits
- LED Power Driver Systems
- Battery Powered Equipment
- General Power Semiconductor Driving
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is 2EDN7524F RoHS compliant?
A: Yes, 2EDN7524F fully complies with RoHS requirements. - Q: How many drive channels does this IC have?
A: It is equipped with two independent drive channels. - Q: Can I request product samples of 2EDN7524F for testing?
A: Sample service is available for 2EDN7524F, please submit an inquiry form. - Q: What are the typical applications for 2EDN7524F?
A: 2EDN7524F is widely used in SMPS, DC-DC converters, motor drives, and high-frequency power conversion systems.
