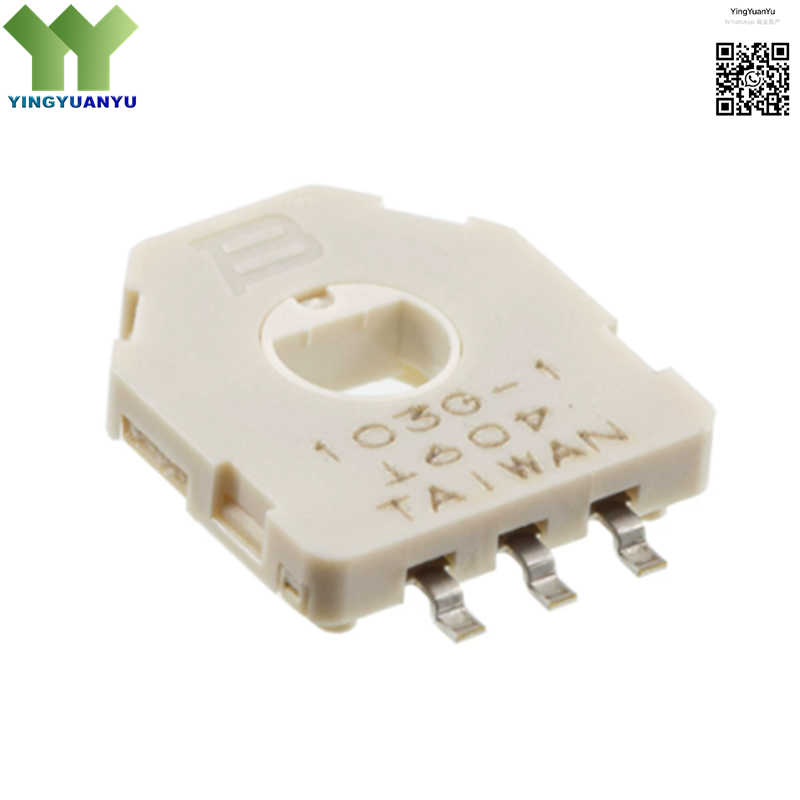

3382G-1-103G
3382G-1-103G
| Part Number | 3382G-1-103G |
|---|---|
| Manufacturer | Bourns |
| Category | sensor,position sensor- Angle, Linear Position Measuring,Potentiometers & Variable Resistors; Rotary Potentiometer |
| Description | 10kΩ Rotary Position Sensor / Rotary Potentiometer, 12mm Square SMD, Linear Taper, 0.05W, 0°~330° Electrical Angle, RoHS Compliant |
Product Overview
The 3382G-1-103G is a high-quality single-turn rotary position sensor (rotary potentiometer) manufactured by Bourns. It features stable electrical performance, smooth mechanical rotation and reliable long-term operation. Featuring a compact 12mm square SMD package, this sensor allows easy assembly and soldering on PCBs. This cost-effective component is widely used for voltage adjustment, signal trimming, volume control and parameter calibration in various electronic and industrial devices.
| Key Specifications | |
|---|---|
| Brand | Bourns |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | 12mm Square SMD |
| Mounting Type | SMD |
| Surface Marking / Silkscreen | 103G-1 Marking |
| Nominal Resistance | 10 kΩ |
| Resistance Tolerance | ±30% |
| Rotation Type | Single Turn |
| Operating Temperature | -40°C ~ +120°C |
Typical Applications
- Audio Volume and Tone Control
- Circuit Voltage Division and Regulation
- Electronic Instrument Calibration
- Industrial Control Equipment
- Power Supply Trimming Circuits
- Consumer Electronic Devices
- Communication Equipment Adjustment
- General Analog Circuit Tuning
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is 3382G-1-103G RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the nominal resistance value?
A: The nominal resistance is 10 kΩ. - Q: Can I get samples for testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the mounting style of this potentiometer?
A: It is designed for SMD (Surface mount).
- Q: Is 3382G-1-103G RoHS compliant?
