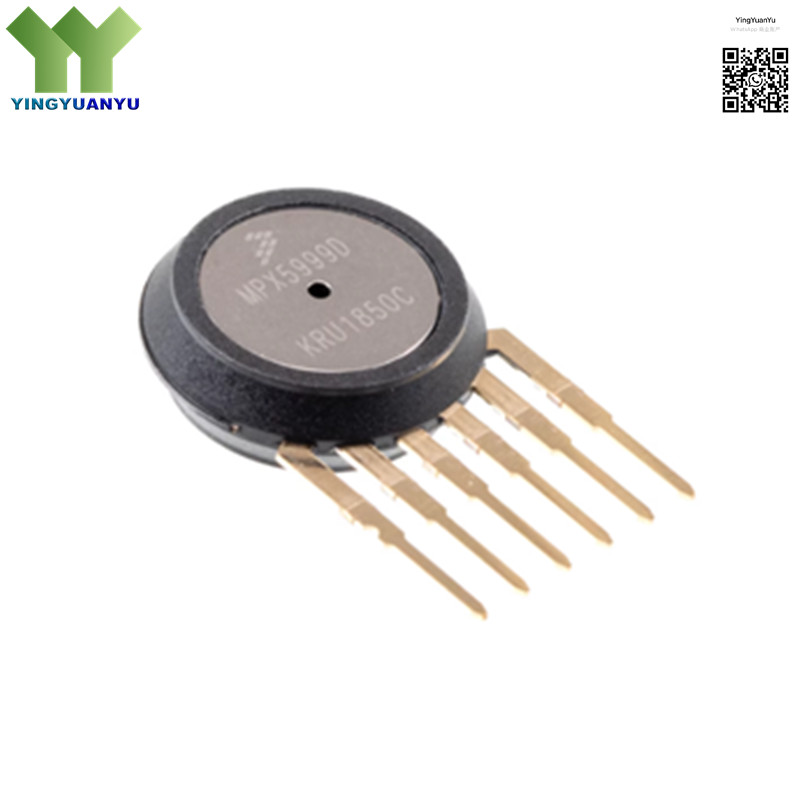

MPX5999D
Basic Information
| Part Number | MPX5999D |
| Manufacturer | NXP Semiconductors |
| Category | Sensors, Transducers > Pressure Sensors |
| Description | IC PRESSURE SENSOR 0-1100KPA 8SOP |
Product Overview
The MPX5999D is a high-performance differential pressure sensor manufactured by NXP Semiconductors. It combines a monolithic silicon sensing element with integrated temperature compensation, calibration, and signal conditioning circuitry to deliver a stable and accurate analog output proportional to applied pressure. The device features high accuracy, low noise, and wide operating temperature range, making it ideal for high-pressure industrial, hydraulic, and pneumatic measurement systems. Housed in a compact 8-SOP surface-mount package, it enables reliable integration into space-constrained designs.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Symbols, Footprints, 3D Models Available |
| Warranty | Standard Manufacturer Warranty |
| Brand | NXP Semiconductors |
| Pressure Type | Differential |
| Operating Pressure Range | 0 kPa to 1100 kPa |
| Output Type | Analog Voltage |
| Voltage – Supply | 4.75V ~ 5.25V |
| Accuracy | ±1.5% Full Scale Span |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 8-SOP |
| Mounting Type | Surface Mount |
Typical Applications
- Industrial High-Pressure Monitoring Systems
- Hydraulic and Pneumatic Control Systems
- Industrial Process Control and Automation
- HVAC Pressure Measurement
- Automotive Pressure Sensing Applications
- Liquid Level and Flow Monitoring
- Heavy-Duty Industrial Instrumentation
- Barometric and Compressor Pressure Systems
