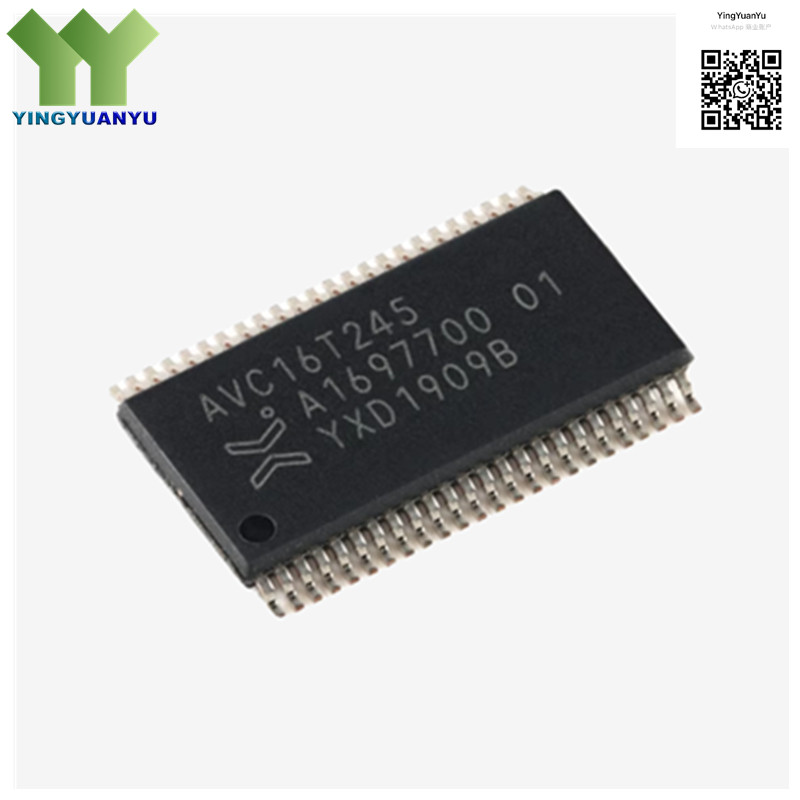

74AVC16T245DGG
74AVC16T245DGG
| Part Number | 74AVC16T245DGG |
|---|---|
| Manufacturer | Nexperia |
| Category | Integrated Circuits (ICs) > Logic > Translators, Level Shifters |
| Description | IC TRANSLATION DIR BUF 16BIT 48TSSOP |
Product Overview
The 74AVC16T245DGG is a 16-bit dual-supply voltage level translator and bus transceiver with 3-state outputs, designed for asynchronous communication between data buses. It features independent VCCA and VCCB power supply pins, supporting voltage translation from 1.2V to 3.3V, and offers high-speed operation, low power consumption, and ESD protection. The device is housed in a compact 48-TSSOP package, ideal for high-density digital systems requiring bidirectional voltage level conversion.
| Specifications | Details |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Brand | Nexperia |
| Number of Bits | 16 Bits |
| Voltage – Supply | 1.2V ~ 3.3V (VCCA, VCCB) |
| Logic Type | Bidirectional Transceiver, 3-State Outputs |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TSSOP (0.177″, 4.50mm Width) |
| Features | Level Shifting, ESD Protection, Low Power |
Typical Applications
- Server and Data Communication Equipment
- Portable Electronic Devices
- Embedded Systems
- Consumer Electronics
- Industrial Control Systems
- Computer Peripherals
- High-Density Digital Circuits
- Voltage Level Translation Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
