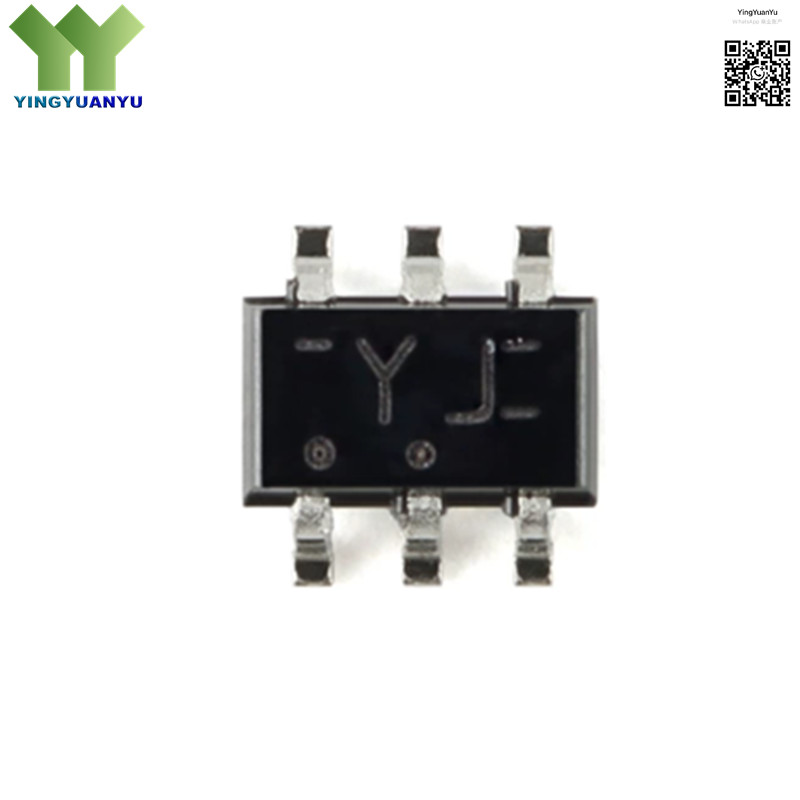

74LVC1G3157GW,125
74LVC1G3157GW,125
| Part Number | 74LVC1G3157GW,125 |
|---|---|
| Manufacturer | Nexperia |
| Category | Logic ICs; Single Pole Double Throw Analog Switch / Multiplexer |
| Description | Single SPDT Analog Switch/Mux, 1.65V-5.5V, Low On-Resistance, SOT-363 Package |
Product Overview
The 74LVC1G3157GW,125 is a high-performance single-pole double-throw (SPDT) analog switch and multiplexer designed for low-voltage digital and analog signal routing applications. It operates over a wide voltage range from 1.65V to 5.5V, features ultra-low on-resistance, fast switching speed, and low power consumption, making it ideal for battery-powered devices, portable electronics, and compact embedded systems. Built with advanced low-voltage CMOS technology, this device provides excellent signal integrity, ESD protection, and robust performance. Housed in a tiny SOT-363 surface-mount package, it delivers space-efficient integration for high-density PCB designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Nexperia |
| Function Type | Single SPDT Analog Switch / Multiplexer |
| Supply Voltage | 1.65V ~ 5.5V |
| On-Resistance | Low RDS(ON) < 5Ω |
| Package Type | SOT-363 (SC-88) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Analog and Digital Signal Routing
- Battery-Powered Portable Electronics
- Audio and Sensor Signal Switching
- Low-Voltage Embedded Systems
- Wearable Devices and IoT Modules
- High-Density PCB Signal Multiplexing
- Consumer Electronics and Mobile Devices
- Industrial Control and Test Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
