ACPM-5613-AP1
ACPM-5613-AP1
| Part Number | ACPM-5613-AP1 |
|---|---|
| Manufacturer | Broadcom / Avago Technologies |
| Category | RF/IF and RFID > RF Power Amplifiers (PA) |
| Description | LTE‑Band13 Power Amplifier Module (PAM), 777‑787MHz, High Efficiency, QFN Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

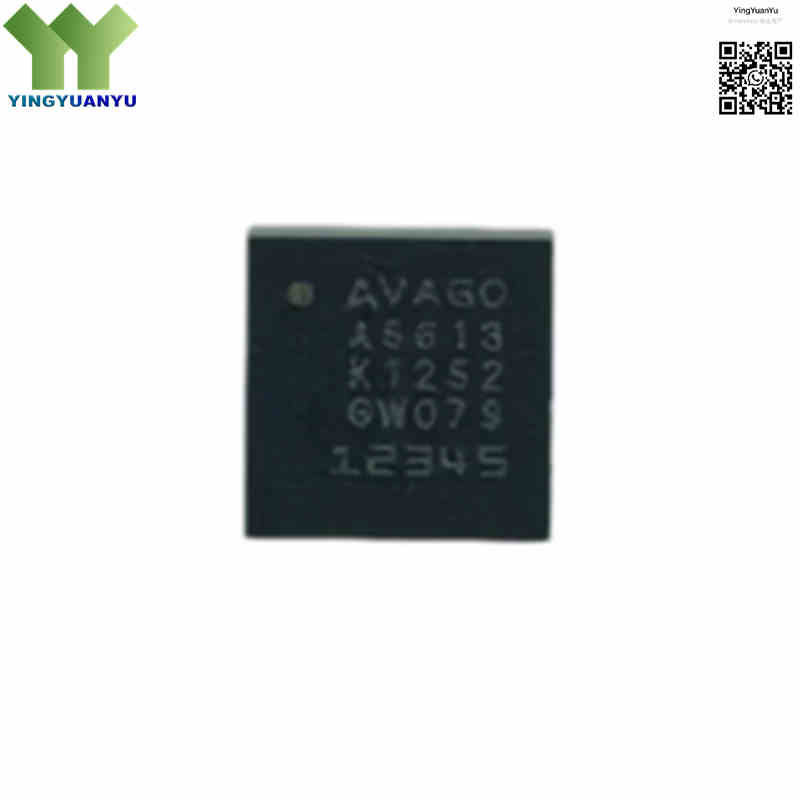

ACPM‑5613‑AP1 is a Broadcom(Avago) LTE Band13 RF power‑amplifier module, silkscreen A5613. Built on GaAs HBT process for 777‑787 MHz uplink, widely used in iPhone5 and Band13 IoT devices. Integrated 50‑ohm matching delivers high‑efficiency linear LTE‑B13 RF output for battery‑powered portable equipment.
Core Advantages
High PAE Performance
High power‑added efficiency reduces power draw and extends portable device battery life.
Integrated RF Matching
Built‑in 50‑ohm input/output matching, cuts external passive components and simplifies RF layout.
Good RF Linearity
Low harmonic distortion, meets 3GPP LTE Band13 RF performance requirements.
Compact LGA SMT Form‑Factor
10‑pin small‑size module, fits high‑density PCB for handsets and compact IoT terminals.
Key Specifications
| Brand | Broadcom / Avago |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | QFN |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | A5613 / Avago |
| RF Type | LTE‑Band13 Power Amplifier (777‑787 MHz Uplink) |
| Input/Output Impedance | 50 Ω Matched |
| Supply Voltage | 3.2V to 4.2V (Typical 3.4V VCC) |
| Control Interface | GPIO / VMODE Power Mode Switching |
| Operating Temperature Range | -30°C to +85°C |
| Technology | GaAs HBT |
| Target Frequency | 777‑787 MHz (LTE Band13 Uplink) |
| Packaging Variant | AP1: Tray; TR1: Tape & Reel |
Typical Applications
- Mobile handsets (iPhone5 reference design)
- Cellular IoT Modules, M2M Wireless Terminals, Smart Metering
- LTE‑Band13 4G Wireless Communication Equipment
- Industrial Telematics, Vehicle Tracking Systems, and OBD‑II Devices
- Portable wireless data terminals operating on LTE Band13
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What frequency band does ACPM‑5613‑AP1 work for?
A1: Dedicated LTE Band13 power amplifier, uplink 777‑787 MHz, silkscreen A5613, applied on iPhone5 mainboard. It does not support UMTS or WCDMA.
Q2: Difference between ACPM‑5613‑AP1 and ACPM‑5613‑TR1?
A2: Die, performance and pinout are fully identical. AP1 is tray packing for sampling; TR1 is tape‑and‑reel for mass SMT production.
Q3: Does ACPM‑5613‑AP1 need external 50‑ohm RF matching?
A3: Input and output ports integrate 50‑ohm matching network, fewer external components and save PCB layout space.
Q4: Can ACPM‑5613‑AP1 pin‑to‑pin replace other Broadcom PA modules?
A4: Not universal pin‑to‑pin replacement. PA modules vary in pin assignment, VMODE logic and frequency bands. Verify specs before substitution.
Q5: Are there drop‑in alternative parts for ACPM‑5613‑AP1?
A5: No direct drop‑in replacement. Choose PA specified for LTE Band13 777‑787 MHz. Check voltage, logic, footprint and RF circuit before replacement.
Q6: What is the package of ACPM‑5613‑AP1?
A6: 10‑pin LGA SMT module, designed for high‑density mobile PCB assembly.
Q7: How to get datasheet, pinout and bulk quotation?
A7: Submit request via Quick Inquiry form for datasheet, schematic support, sample and volume pricing.
